1)---Pass CE and ISO authentication
2)---High quality with competitive price
3)---PCL control: Panasonic or Simens, ect.
4)---Payment: T/T, ect
Description:

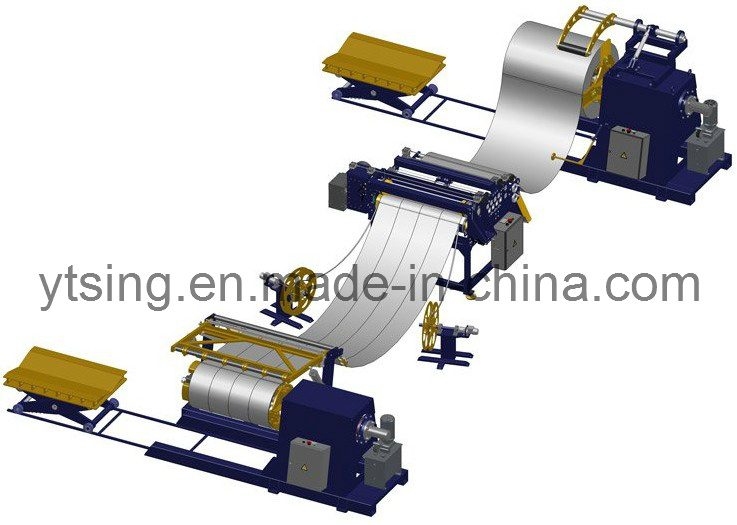

The slitting line can be do uncoiling, slitting and recoiling work and make coil steel to any required width. The slitting line includes a coil car, shearer, correct device, slitting machine, tension unit, recoiler, hydraulic system, etc. The slitting line is used in coil, hot rolling carbon steel, silicon steel and all the other types of metal material with surface spreading. To meet customer demands, the slitting line can be adjusted to do recoiling or dividing work. APLC system is centrally controlled to select information from every part of the line. It has the function of adjusting the speed and retaining memory if it loses its power supply. The slitting line delivers a very efficient performance.
Application:
The slitting line machine is specially used to slit the coil to the required width and cut the length to your requirement.
Packaging:
The slitting line is wrapped and covered with film making the package seaworthy. The legs of the machine are fixed with angle steel and heavy screws.
We can also design slitting roll forming machines according to your specific profile drawing.
Wuxi Yuanding Science & Technology Co., Ltd.
Contact person: Becky
Tel: +86-024-8623-4279
Mobile: +86-186-4290-6462
Contact me to get more information
Welcome to contact and visit us, waiting for your cooperation sincerely.
Type |
Coil thickness(mm) |
Coil width(mm) |
NO.of Slitting |
Tolerance
(mm) |
Speed
(m/min) |
Weight of Roll(Ton) |
|
1.5x1300 |
0.25-1.5 |
500-1300 |
20 |
+/-0.05 |
50-120 |
15 |
|
2x1300 |
0.25-2 |
500-1300 |
30-12 |
+/-0.05 |
50-120 |
15 |
|
3x1300 |
0.25-3 |
500-1300 |
30-12 |
+/-0.05 |
50-120 |
15 |
|
4x1600 |
0.5-4 |
500-1600 |
30-12 |
+/-0.05 |
50-120 |
15 |
|
6x2000 |
1-6 |
900-2000 |
30-10 |
+/-0.05 |
50-120 |
20 |
|
8x2000 |
2-8 |
900-2000 |
30-6 |
+/-0.05 |
50-120 |
20 |
|
10x2000 |
3-10 |
900-2000 |
30-6 |
+/-0.05 |
40 |
20 |
Wuxi Yuanding Science and Technology Co., Ltd. is located in national health city, ecosystem cityscience and technology advanced city and unique inland river harbor type wuxi city who protects the tax area, the south side economy development in pond city area. It produce YX series roll forming machine for roof and wall panels, colored steel tile forming machine, YX series guard rall forming machine, C&Z shaped purline forming machines and metal deck forming machine. These use new generation shaping machine, applies advanced microcomputer and PLC technology as well as intelligent touch screen operation and control system. These function largely improved working efficiency and the integrated performance. Welcome to our company.
