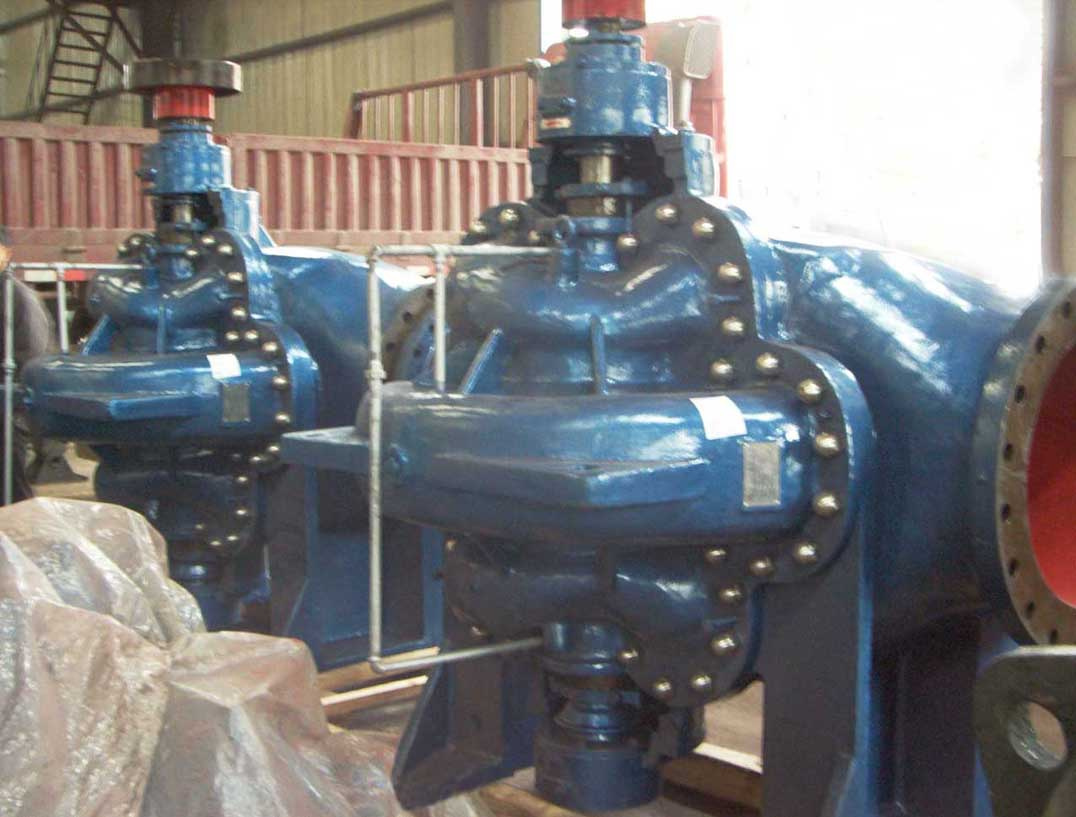

SLA-pump of vertical single-stage, dual-use, the body in a vertical centrifugal water pump. Water and physical and chemical properties similar to those of other liquid water use. Liquid should not exceed the maximum temperature of 80 C.
This series pumps are: 14 SLA-10, 16SLA-9, 20SLA-22, 24SLA-10, 28SLA-10, 32SLA-10, 32SLA-19 a total of seven seven varieties, 27 specifications.
Pump flow components made of cast iron. Seal to fill sealed packing for Qianfen Oil asbestos rope. Since the end to the pump motor, shaft for the anti-clockwise rotation.
This type pumps based on user needs to use flexible coupling with the motor direct vertical transmission, or were assigned to different vertical motor and the transmission shaft indirect transmission.
SLA-based single-stage double-suction vertical centrifugal water pump in the open, is based on the SA-type pump developed in an open vertical centrifugal pump for conveying solid particles in the water or the physical and chemical properties similar to water other liquid. Transmission fluid temperature is 0 C ~ 80C, suitable for industrial, urban water supply and drainage, can also be used in agricultural irrigation. Since the vertical pump installation, pump saving investment, particularly welcomed by the Village and the water plant.
Parameter range:
Flow Q800 ~ 6330m3 / h
Head H12 ~ 96
Allow the inlet pressure 6 * 105Pa
Pump for the vertical installation, inlet and the outlet are horizontal. Pump, pump cover surface and the separation of the center line of the vertical axis to separate inspection or repair, no need to disassemble into, outlet pipe road, removed the pump can remove the rotor cover. Seal for the gasket seal. Rotor supported on ball bearing, grease lubrication.
Pump is made of cast iron over-current components, such as user needs, the impeller can be cast steel or brass, but the user must specify when ordering.
Pump rotation direction: From motor-side perspective, the counterclockwise rotation.
Pump and motor can be directly connected together, can also be paid through the efforts of the middle shaft connection, the user needs
MODEL |
CAPACITY |
HEAD |
RATED SPEED |
SHAFT POWER |
|
M3/h |
L/s |
m |
R/min |
kW |
14SLA-10 |
900 |
250 |
70 |
1480 |
206 |
1080 |
300 |
68 |
229.8 |
1260 |
350 |
64 |
249.5 |
14SLA-10A |
900 |
250 |
60 |
1480 |
175 |
1080 |
300 |
58 |
196 |
1260 |
350 |
54 |
213 |
14SLA-10B |
900 |
250 |
51 |
1480 |
148 |
1080 |
300 |
48 |
162.2 |
1260 |
350 |
44 |
179.7 |
14SLA-10J |
650 |
180.5 |
30 |
980 |
63 |
(14SLA-10C) |
800 |
222.2 |
28 |
70 |
|
1000 |
277.7 |
24 |
76.9 |
14SLA-10JA |
600 |
166.6 |
27 |
980 |
52.5 |
(14SLA-10D) |
720 |
200 |
25 |
56.34 |
|
900 |
250 |
22 |
62.7 |
14SLA-10JB |
600 |
166.6 |
23 |
980 |
44.2 |
(14SLA-10E) |
720 |
200 |
21 |
47.3 |
|
900 |
250 |
18 |
53.1 |
16SLA-9 |
1080 |
300 |
97.6 |
1480 |
400.9 |
1260 |
350 |
96 |
427.8 |
1620 |
450 |
90 |
472.6 |
16SLA-9A |
1080 |
300 |
85.8 |
1480 |
344.4 |
1260 |
350 |
85 |
369.2 |
1620 |
450 |
78 |
409.6 |
16SLA-9B |
1080 |
300 |
78 |
1480 |
297.9 |
1260 |
350 |
76 |
318 |
1620 |
450 |
68 |
348.8 |
16SLA-9J |
900 |
250 |
42 |
980 |
128.7 |
(16SLA-9C) |
1080 |
300 |
40 |
140 |
|
1260 |
350 |
37 |
149.4 |
16SLA-9JA |
900 |
250 |
37 |
980 |
111.9 |
(16SLA-9D) |
1080 |
300 |
35 |
122.5 |
|
1260 |
350 |
32 |
130.7 |
16SLA-9JB |
800 |
222.2 |
33 |
980 |
89.8 |
(16SLA-9E) |
900 |
250 |
32 |
94.5 |
|
1080 |
300 |
30 |
102.6 |
20SLA-22 |
1368 |
380 |
26.2 |
980 |
122 |
1980 |
550 |
21 |
133.2 |
2304 |
640 |
17.5 |
137.25 |
20SLA-22A |
1260 |
350 |
21.16 |
980 |
90 |
1800 |
500 |
12.4 |
92.3 |
2088 |
580 |
|
88 |
20SLA-22JA |
1080 |
300 |
16.3 |
742 |
61.5 |
(20SLA-22B) |
1450 |
402.78 |
14 |
65 |
|
1800 |
500 |
10.7 |
66.8 |
20SLA-22JB |
1080 |
300 |
10.3 |
742 |
36.9 |
(20SLA-22C) |
1300 |
361.11 |
9.5 |
39.6 |
|
1627 |
452 |
6.8 |
38.6 |
24SLA-10 |
2592 |
720 |
79.5 |
950 |
648.55 |
3420 |
950 |
71 |
726.7 |
3600 |
1000 |
67 |
730 |
24SLA-10J |
2160 |
600 |
45.39 |
742 |
302.5 |
(24SLA-10A) |
2700 |
750 |
34.4 |
318.6 |
|
2970 |
825 |
|
318.7 |
24SLA-18 |
2700 |
750 |
33.5 |
980 |
291.5 |
3240 |
900 |
32 |
317 |
3600 |
1000 |
26 |
298 |
24SLA-18JA |
1908 |
530 |
14.7 |
742 |
90 |
(24SLA-18A) |
2000 2520 |
555.6 |
13.5 |
86.5 |
|
|
700 |
11.2 |
94.9 |
28SLA-10 |
4536 |
1260 |
94 |
980 |
1451 |
5292 |
1470 |
90 |
1544 |
6350 |
1764 |
77 |
1624 |
28SLA-10J |
3362 |
933.9 |
51.6 |
742 |
890 |
(28SLA-10A) |
3922 |
1089 |
49.4 |
628 |
|
4707 |
1307 |
42.3 |
661 |
32SLA-10 |
6300 |
1750 |
73.5 |
742 |
1510 |
8280 |
2300 |
67.5 |
1720 |
9900 |
2750 |
57.5 |
1856 |
32SLA-10J |
4860 |
1350 |
48.3 |
590 |
780 |
6480 |
1800 |
44.2 |
881 |
8100 |
2250 |
35.5 |
960 |
32SLA-19 |
4390 |
1219.4 |
33.3 |
742 |
470 |
5400 |
1500 |
29 |
473.8 |
5760 |
1600 |
26.3 |
485 |
32SLA-19A |
4170 |
1158 |
29.3 |
742 |
391 |
5000 |
1388 |
26 |
393 |
5470 |
1519 |
23.7 |
415 |
32SLA-19B |
3564 |
1015 |
23.7 |
742 |
275.8 |
4700 |
1305.5 |
20 |
284 |
5220 |
1450 |
17 |
282.6 |
32SLA-19JA |
3240 |
900 |
19.1 |
590 |
192.6 |
(32SLA-19C) |
4000 |
1111.1 |
16.5 |
199.7 |
|
4320 |
1200 |
15.2 |
204.3 |
32SLA-19JB |
2880 |
800 |
15.8 |
590 |
146.6 |
(32SLA-19D) |
3800 |
1055 |
13 |
151 |
|
3960 |
1100 |
11.8 |
147.1 |
