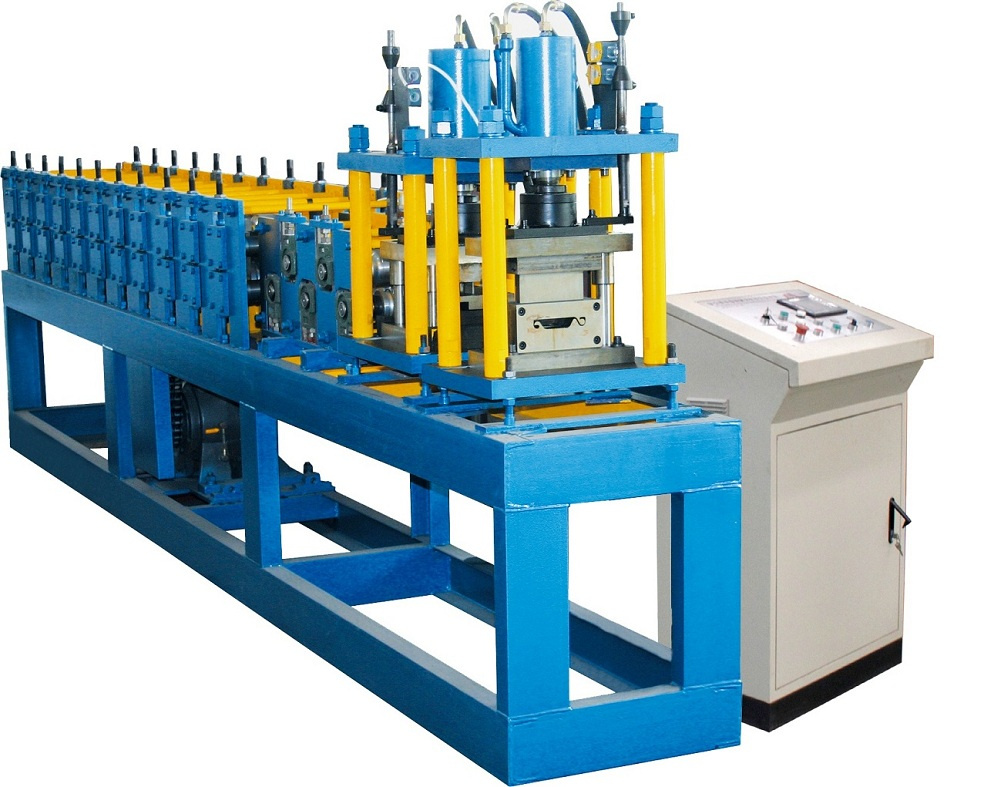

Single Shutter Door Forming machine Features:
The Machine forms shutter from GI, and can have different shapes, punching as customers' requirement.
Single Shutter Door Forming machine Line Specification
Suitable Material: Thickness: 0.40-1.00mm, width as the design
Decoiler: 2T decoiler
Forming Station: 10-20 stations up to the profile
Forming Speed: Max 20 m/min
Panel Run Out: Run Out Table
Total Power: About 10 KW up to final design
Total Installation Size: (15-25) X 2 m up to final design
Line Components:
2T decoiler, Guiding Device, Forming System, Hydraulic Cutting Device, Run Out Table, Hydraulic Station, PLC Control Box, Movable Control Unit, Safety Cover(optional)
No. |
Name |
Unit |
Qty |
1 |
Decoiler |
set |
1 |
2 |
Main machine for roll forming |
set |
1 |
3 |
Control system |
set |
1 |
4 |
Hydraulic system |
set |
1 |
5 |
Automatic cutting |
set |
1 |
ZuoJiaYou international industrial Co., Ltd is the registered in the Hong Kong special administrative region. It is a comprehensive company which has invested into the import and export industry for the machinery industrial and other goods in domestic. Our company has strong economic foundation, strong network of relationships, perfect technology and personnel configuration. We have a very completely mechanical independently research and development system, and a service system for import and export.
We have advanced production equipment and our engineering personnel and technicians have extensive experience in designing, developing, and manufacturing machineries. They pay close attention to and keep up with the developing trend of technologies and use new technologies in manufacturing machinery, to keep them competitive. Our products feature high efficiency, high flexibility and low cost.
"Customers are the first, success comes from development" is our principle. We bear this in mind during the whole process from design and development of product to after-sales services. We will design and manufacture machinery strictly in accordance with your requirements
Excellent service and high technology assist you to create a bright future.
