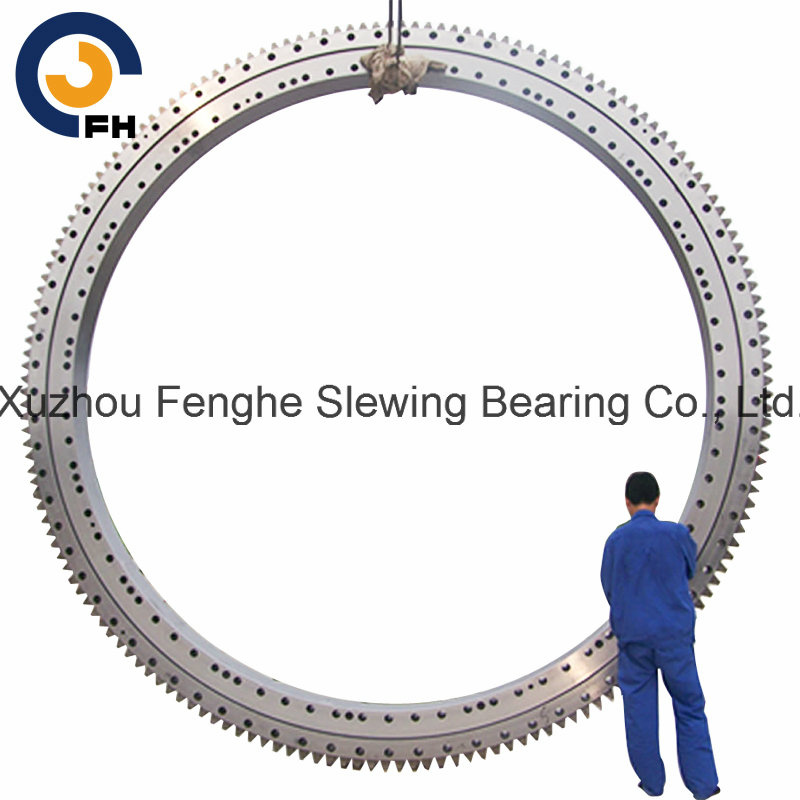

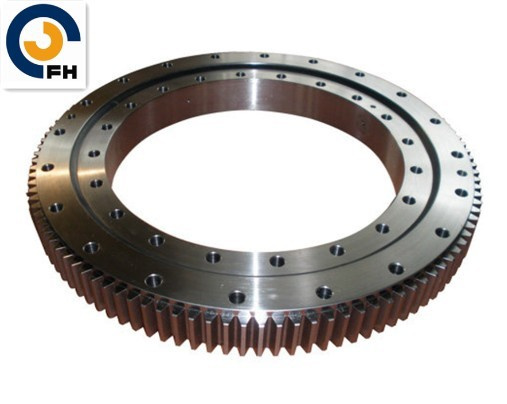

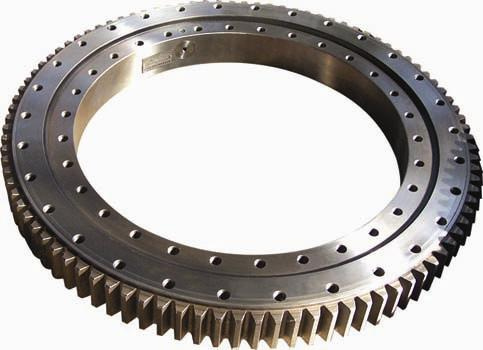

Single-Row Crossed Roller Slewing Bearing - External Gear

Name: Single-Row Crossed Roller Slewing Bearing - External Gear
Brand: china-castingforging.com
SKU: 719453885
Availability: InStock
Rating: 4.7 (22 reviews)

Price:	US $ 100-5000/Set
Trade Terms:	FOB,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Xuzhou Fenghe Slewing Bearing Co., Ltd.

Showroom Product Company Profile

Own 20,000m² production facility and 10,000m² forging workshop.
Heat treated six times throughout production.

Main Technical specifications:

Model No.: 011.40.900
Brand: Fenghe
No. Of rows: Singel row
Inner structure: Ball
Gear option: External Gear
No. Of mounting holes: 30
Internal diameter: 778mm
Outside diameter: 1022mm
No. Of gear: 130
Thickness: 100
Weight: 240kg

Other details:
Dimeter range: 200mm-7000mm
Material: 50Mn, 42CrMo
Seals type: Rubber gasket, iron or high temperature seal
Loading capacity: Heavy-duty
Size: Large diameter
OEM: Available
Material: Good-quality 50Mn, 42CrMo
Certification: ISO9001: 2008/ISO14001: 2004/OHSAS 18001: 2007
Packing details: Sea worthy packing in wooden case loaded in container

NO.	External Gear DL mm	Dimensions			Mounting dimensions						Structural dimensions					Gear data					Gear circumferential force		weig ht kg
		D mm	d mm	H mm	D1 mm	D2 mm	n	mm	dm mm	L mm	n1 mm	D3 mm	d1 mm	H1 mm	h mm	b mm	x	M mm	De mm	z	Norma lizing Z 104N	Quen ching T 104N
1	011.20.200	280	120	60	248	152	12	16	M14	28	2	201	199	50	10	40	0	3	300	98
2	011.20.224	304	144	60	272	176	12	16	M14	28	2	225	223	50	10	40	0	3	321	105
3	011.20.250	330	170	60	298	202	18	16	M14	28	2	251	249	50	10	40	0	4	352	86
4	011.20.280	360	200	60	328	232	18	16	M14	28	2	281	279	50	10	40	0	4	384	94
5	011.25.315	408	222	70	372	258	20	18	M16	32	2	316	314	60	10	50	0	5	435	85	2.9	4.4
6	011.25.355	448	262	70	412	298	20	18	M16	32	2	356	354	60	10	50	0	5	475	93	2.9	4.4
7	011.25.400	493	307	70	457	343	20	18	M16	32	2	401	399	60	10	50	0	6	528	86	3.5	5.3
8	011.25.450	543	357	70	507	393	20	18	M16	32	2	451	449	60	10	50	0	6	576	94	3.5	5.3
9	011.30.500	602	398	80	566	434	20	18	M16	32	4	501	498	70	10	60	0.5	5	629	123	3.7	5.2	85
	012.30.500																	6	629	102	4.5	6.2
9'	011.25.500	602	398	80	566	434	20	18	M16	32	4	501	499	70	10	60	0.5	5	629	123	3.7	5.2	85
	012.25.500																	6	629	102	4.5	6.2
10	011.30.560	662	458	80	626	494	20	18	M16	32	4	561	558	70	10	60	0.5	5	689	135	3.7	5.2	95
	012.30.560																	6	689	112	4.5	6.2
10'	011.25.560	662	458	80	626	494	20	18	M16	32	4	561	559	70	10	60	0.5	5	689	135	3.7	5.2	95
	012.25. 560																	6	689	112	4.5	6.2
11	011.30.630	732	528	80	696	564	24	18	M16	32	4	631	628	70	10	60	0.5	6	773	126	4.5	6.2	110
	012.30.630																	8	774	94	6	8.3
11'	011.25.630	732	528	80	696	564	24	18	M16	32	4	631	629	70	10	60	0.5	6	773	126	4.5	6.2	110
	012.25.630																	8	774	94	6	8.2
12	011.30.710	812	608	80	776	644	24	18	M16	32	4	711	708	70	10	60	0.5	6	851	139	4.5	6.2	120
	012.30.710																	8	854	104	6	8.3
12'	011.25.710	812	608	80	776	644	24	18	M16	32	4	711	709	70	10	60	0.5	6	851	139	4.5	6.2	120
	012.25.710																	8	854	104	6	8.9
13	011.40.800	922	678	100	878	722	30	22	M20	40	6	801	798	90	10	80	0.5	8	966	118	8	11.1	220
	012.40.800																	10	968	94	10	14
13'	011.30.800	922	678	100	878	722	30	22	M20	40	6	801	798	90	10	80	0.5	8	966	118	8	11.1	220
	012.30.800																	10	968	94	10	14.1
14	011.40.900	1022	778	100	978	822	30	22	M20	40	6	901	898	90	10	80	0.5	8	1062	130	8	11.1	240
	012.40.900																	10	1068	104	10	14
14'	011.30.900	1022	778	100	978	822	30	22	M20	40	6	901	898	90	10	80	0.5	8	1062	130	8	11.1	240
	012.30.900																	10	1068	104	10	14
15	011.40.1000	1122	878	100	1078	922	36	22	M20	40	6	1001	998	90	10	80	0.5	10	1188		10	14	270
	012.40.1000																	12	1186	96	12	16.7
15'	011.30.1000	1122	878	100	1078	922	36	22	M20	40	6	1001	998	90	10	80	0.5	10	1188	116	10	14	270
	012.30.1000																	12	1186	96	12	16.7
16	011.40.1120	1242	998	100	1198	1042	36	22	M20	40	6	1121	1118	90	10	80	0.5	10	1298	127	10	14	300
	012.40.1120																	12	1306	106	12	16.7
16'	011.30.1120	1242	998	100	1198	1042	36	22	M20	40	6	1121	1118	90	10	80	0.5	10	1298	127	10	14	300
	012.30.1120																	12	1306	106	12	16.7
17	011.45.1250	1390	1110	110	1337	1163	40	26	M24	48	5	1252	1248	100	10	90	0.5	12	1450	118	13.5	18.8	420
	012.45.1250																	14	1453	101	15.8	21.9
17'	011.35.1250	1390	1110	110	1337	1163	40	26	M24	48	5	1251	1248	100	10	90	0.5	12	1450	118	13.5	18.8	420
	012.35.1250															14		14	101	16	21.9	18.8
18	011.45.1400	1540	1260	110	1487	1313	40	26	M24	48	5	1402	1398	100	10	90	0.5	12	1606	131	13.5	18.8	480
	012.45.1400																	14	1607	112	15.5	21.9
18'	011.35.1400	1540	1260	110	1487	1313	40	26	M24	48	5	1401	1398	100	10	90	0.5	12	1606	131	13.5	18.8	480
	012.35.1400																	14	1607	112	15.8	21.9
19	011.45.1600	1740	1460	110	1687	1513	45	26	M24	48	5	1602	1598	100	10	90	0.5	14	1817	127	15.8	21.9	550
	012.45.1600																	16	1821	111	18.1	25
19'	011.35.1600	1740	1460	110	1687	1513	45	26	M24	48	5	1601	1598	100	10	90	0.5	14	1817	127	15.8	21.9	550
	012.35.1600																	16	1821	111	18.1	25
20	011.45.1800	1940	1660	110	1887	1713	45	26	M24	48	5	1802	1798	100	10	90	0.5	14	2013	141	15.8	21.9	610
	012.45.1800																	16	2013	123	18.1	25
20'	011.35.1800	1940	1660	110	1887	1713	45	26	M24	48	5	1801	1798	100	10	90	0.5	14	2013	141	15.8	21.9	610
	012.35.1800																	16	2013	123	18.1	25

Prod Model:	011.40.900
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Machinery Parts

Thanks for giving us a chance to introduce ourselves:

XuZhou FengHe Slewing Bearing Co., Ltd. Established in 2004 with registered capital of 20 million yuan to facilitate its self-support export, which has been engaged in producing and designing slewing bearing for the past 30 years. It covers an area of 38016 square meters, among which, the modernized construction area of production plant is nearly 20000 square meters, and forging workshop is nearly 10000 square meters.

The company specializes in Six types slewing bearings, including Single-row ball type (Series 01, series Hs, and series Q), double-row ball type (series 02), three-row roller type (series 13), single-row cross roller type (series 11), double-line ball type (series 07) and ball-roller combined type. Our products are widely used in engineering machinery, building machinery, metallurgical and mining machinery, shipping port machinery, environmental protection machinery, light industry machinery, petroleum chemical machinery, engineering vehicle, war industry equipments and so on. The model of the products covers various standards and nonstandard specifications from 150mm to 5000mm.

The products of our company have been already registered with the trade mark of "Fenghe". The series of products produced by our company have passed the quality inspection identification of the national special type mechanical part quality testing and played a leading role in the industry. Our company is rewarded as "an enterprise which strictly abides by contracts and keeps promise" and "a enterprise with high quality". At the same time, we have already passed through production part approval procedure (PPAP) training. Our company passed ISO9001: 2008 quality system certification work in 2012, then passed ISO14001: 2004 and OHSAS 18001: 2007 in 2013. We are one of the main slewing bearing manufacturers in China. The relevant products have already passed product testing and certification of Chinese Classification Society (CCS).

The company's products are sold to all parts of our country and are exported to 42 countries all over the world such as U. S. A., Britain, France, Malaysia, Singapore, Germany, Japan, Brazil, Russia, Czech, Finland, Holland, Sweden, Irish, Turkey, the United Arab Emirates, Canada, Spain, which have won extensive acceptance and recognition from users.
