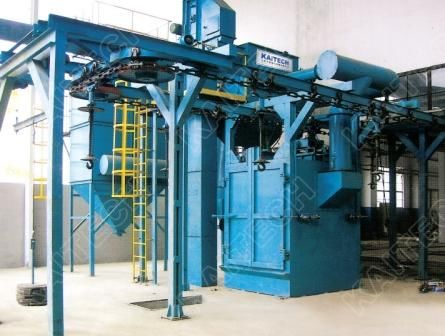

Q48 single route series Hanger Stepping Type Continuous Working Overhead Rail Shot Blasting Machine
This series uses multiple-step and rotating point fixed method to clean away the antiquated sand and oxidation layer from the surface quickly, and makes the surface bright and clean. It is mainly used for the fitting of vehicles such as the bolster, side frame, coupler and coupler yoked, also for cleaning the casting and workpieces with the similar size.
Diameter Q383, Q483 Q385, Q485 Q4810
Cleaning workpiece size(mm) 800*1200 1000*1500 1000*2500
Number of work position 2 2 2
Quantity of impeller head 4 4 6
Impeller head volume (KG/min) 4*250 4*250 6*250
Impeller head power (KW) 4*15 4*15 6*15
Max hangering weight (KG) 300 300 1000
Productivity hanger/h 30-60 30-60 40-60
Size of the cleaning room (mm) 7680*2000*2900 7680*2000*2900 7680*2000*3800
Total air rate volume (m/h) 17000 19000 19000
Total power( except for dust cleaning) KW 73\15 73\15 114\72
Our company has first-class technology research development center and well-developed quality management system, and we have passed ISO9001 international quality system certification. Our company is the National Blasting & Peening Standardization Technology Committee Unit and our company takes part in and sets down the national standard Parabolic Shot Equipment General Technical Condition.
Our main products are cleaning machines, sand-peening equipment, and dust-removal equipment, and we offer ideal key equipments to casting, forging and heat treatment, steel structure, container, machinery, shipbuilding, aircraft, locomotive, and machine tool industries.
Shandong Kaitai Industrial Technologies Co., Ltd(Old Name: Shandong Kaitai Metal Abrasive Co., Ltd)is The Largest And Most Professional Manufacturer Of Metal Abrasive In Asia.
Our Advantages Below:
1, Professional In The Metal Abrasive Fields For 15 Years. Cooperating With Shandong University And Adopt The Most Advanced Automatic Production Line In China, and Using Ervin Fatigue Life Tester, SPECTRO Direct Reading Spectrograph And Other Importing Testing Devices To Guarantee The Quality.
2, 4B Services: Best Quality, Best Price, Best Delivery, Best Services
3, Win-win Target To Achieve Long Good Business Relationship
Our Main Product:
1)Cast Steel Shot S930/3.0mm, S780/2.5mm, S660/2.0mm, S550/1.7mm, S460/1.4mm, S390/1.2mm, S330/1.0mm, S280/0.8mm, S230/. 6mm, S170/0.5mm, S110/. 3mm, S70/0.2mm
2)cast Steel Grit G10/2.5mm, G12/2.0mm, G14/1.7mm, G16/1.4mm, G18/1.2mm, G25/1.0mm, G40/0.7mm, G50/0.4MM, G80/0.3mm, G120/0.2mm
3) Steel Cut Wire Shot: CW1.0mm, CW1.5mm, CW2.0mm, CW2.5mm
4)stainless Steel Shot, stainless Steel Cut Wire Shot. Aluminum Shot, zin Shot, copper Shot: From 0.3mm~2.5mm
