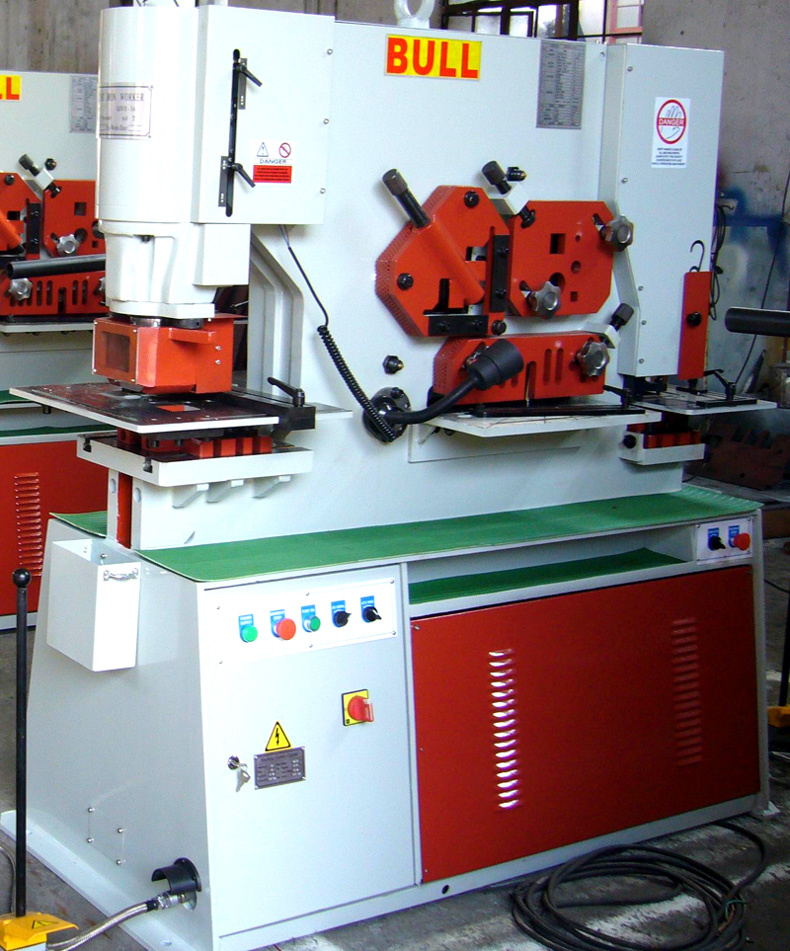

Multi-Function Ironworker punching/shearing/notching/bending machine:
This hydraulic Ironworker machine is combined punching and shearing machine, can punch, shear, notch and cut materials such as plate, square bar, round steel, angle, round bar, channel, shear the range, punching and die cut, and equipped with shear block material device.
Q35Y series hydraulic ironworker can also bend the plate below 300mm. with its multifunction, cutting machine is your first choice among the counterpart machine. All the components are of the highest quality in their safety, function, capability and maintenance.
Optional Fittings For Hydraulic Universal Multi-Function Ironworker Machine Q35Y-20:
1. ATOS ATOS hydraulic system
2. Automatic back gauge
3. ABB ABB motor
4. ATOS ATOS pump
Features:
1. Punching Station
Full range of universal punches and dies are available. Unique style of Q35Y hydraulic Ironworker allows for large angle iron punching and large channel punching.
Large viewing window on stripper swing away design for ease of operation. Large two piece gauging table with rulers and stop as standard equipment. Quick change coupling nut and sleeve for rapid replacement of change.
2. Round and Square bar shear has multiple holes for a variety of sizes. Adjustable holddown for clean square cutting. Optional Channel and Beam shears available with this ironworker machine.
3. Large heavy duty knobs
Precise square bar cutting
Large strong guarding for maximum safety
Mitering with large standard squaring arm
4. The angle ironworker machine has the ability to cut angle iron at 45 degrees both top and bottom leg. This gives the operator the ability to make a picture frame corner for perfect welds.
5. Diamond shaped blade for quality cuts and no material loss with minimal deformity. Forty five degree miter cut both top and bottom leg for a picture frame corner.
6. Notching Sstation
Unique design allows for unsurpassed cutting of angle and flat bar. Electrically interlocked safety guard for maximum operator safety. Ventilated guard for maximum operator visibility. Three guaging stops for precise positoning.
7. Three foot electronic back guage supplied as standard equipment. Fine adjustment allows for precision cuts. Fully protected electrical harness for safety and reliability. Large contact button for maximum productibity.
8. Flat Bar Shearing Station
Easily adjustable hold down with good operator visibility for accurate cutting. Large 15" squaring arm with inlaid scale as standard equipment.
Specially contoured anti-distortion blade for quality cuts. Lower blade has four usable edges. Allen head set screws allow for easy gapping of the hydraulic ironworker machine. No shimming is required.
Technical Data |
Model |
Q35Y-16 |
Q35Y-20 |
Q35Y-25 |
Q35Y-30 |
Working pressure (kn) |
550 |
750 |
1100 |
1400 |
Max. cutting thicknessmm |
16 |
20 |
25 |
26 |
Max. cutting length(mm) |
400 |
480 |
600 |
600 |
Tensile strength of sheet metal
(N/mm²) |
≤450 |
≤450 |
≤450 |
≤450 |
Shear angle(deg) |
7 |
8 |
8 |
8 |
Stroke of ram(mm) |
80 |
80 |
80 |
80 |
stroke times(min) |
8 |
8 |
8 |
8 |
Depth of throat(mm) |
300 |
355 |
400 |
600 |
Max .Capacities(mm) |
25×16 |
30×20 |
35×25 |
38×28 |
Main motor(KW) |
4 |
5.5 |
7.5 |
11 |
Length of machine tool(mm) |
1640 |
1860 |
2355 |
2680 |
Width of machine tool(mm) |
730 |
790 |
960 |
1040 |
Height of machine tool(mm) |
1770 |
1900 |
2090 |
2300 |
Weight of machine tool(kg) |
1700 |
2200 |
4800 |
6200 |
PUNCHING METRIC(mm) |
Max. Capacities |
25×16 |
30×20 |
35×25 |
38×26 |
Max. Stroke Length |
80 |
80 |
80 |
80 |
Throat Depth Standard |
305 |
355 |
400 |
600 |
Working Height |
1030 |
1084 |
1142 |
1209 |
SHEARING |
Flat Bar |
250×16 |
330×20 |
300×25 |
355×30 |
Alternative |
400×8 |
480×10 |
600×16 |
600×20 |
Blade Length |
380 |
485 |
620 |
610 |
Working Height |
890 |
894 |
851 |
897 |
ANGlE CUTTING |
At 90°cut |
125×12 |
140×12 |
160×14 |
180×16 |
At 45°Mitre |
70×10 |
70×10 |
70×10 |
70×10 |
Working Height |
1130 |
1139 |
1200 |
1220 |
SECTION CUTTING |
Round / Square Bar |
45 |
50 |
60 |
65 |
Channel / Beam |
130×65 |
160×88 |
180×84 |
200×100 |
Tee |
90×12 |
90×12 |
90×12 |
90×12 |
NOTCHING |
Material Thickness |
10 |
13 |
14 |
16 |
Width |
57 |
57 |
57 |
57 |
Depth: Vee -Rect. |
60-90 |
60-90 |
60-90 |
60-90 |
Working Height |
890 |
883 |
886 |
898 |
