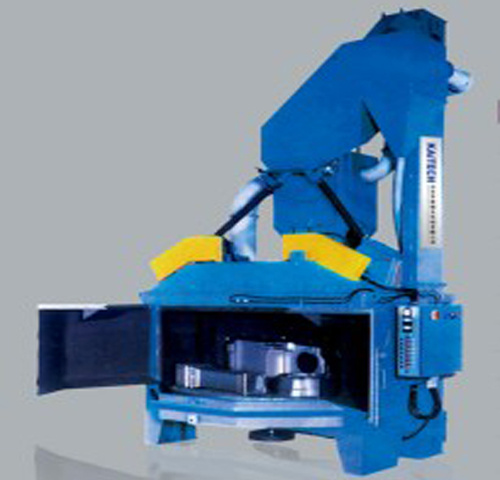

Q35 series cartype shot blasting machine is used for strengthen treatment of workpieces.
Our company has first-class technology research development center and well-developed quality management system, and we have passed ISO9001 international quality system certification. Our company is the National Blasting & Peening Standardization Technology Committee Unit and our company takes part in and sets down the national standard Parabolic Shot Equipment General Technical Condition.
Our main products are cleaning machines, sand-peening equipment, and dust-removal equipment, and we offer ideal key equipments to casting, forging and heat treatment, steel structure, container, machinery, shipbuilding, aircraft, locomotive, and machine tool industries.
We also supply metal abrasives: Cast steel shot: S780 ~S70, cast steel grit: G10~G80, steel cut wire shot: 1.0~2.5mm, stainless steel shot, stainless steel cut wire shot: 0.2~2.5mm, aluminium shot, zinc shot, copper shot.
|
Parameters |
Q3512 |
QF3512 |
QF3525E |
|
Dimension of cleaning room |
1350× 560 |
1350× 860 |
2654× 560 |
|
Workpieces’ dimension |
600× 250× 250 |
600× 250× 500 |
600× 500× 250 |
|
Loading weight |
400 |
400 |
1000 |
|
Diameter |
1200 |
1200 |
2500 |
|
Blasting quantity |
200 |
2 × 120 |
2 × 250 |
|
Power |
11 |
7.5 × 2 |
15 × 2 |
|
Lifting quantity |
15 |
15 |
30 |
|
Separating quantity |
15 |
15 |
30 |
|
Metal abrasive for first time |
400 |
400 |
1500 |
|
Ventilation |
2800 |
2800 |
5200 |
|
Total power |
24.5 |
24.5 |
35.2 |
Shandong Kaitai Industrial Technologies Co., Ltd(Old Name: Shandong Kaitai Metal Abrasive Co., Ltd)is The Largest And Most Professional Manufacturer Of Metal Abrasive In Asia.
Our Advantages Below:
1, Professional In The Metal Abrasive Fields For 15 Years. Cooperating With Shandong University And Adopt The Most Advanced Automatic Production Line In China, and Using Ervin Fatigue Life Tester, SPECTRO Direct Reading Spectrograph And Other Importing Testing Devices To Guarantee The Quality.
2, 4B Services: Best Quality, Best Price, Best Delivery, Best Services
3, Win-win Target To Achieve Long Good Business Relationship
Our Main Product:
1)Cast Steel Shot S930/3.0mm, S780/2.5mm, S660/2.0mm, S550/1.7mm, S460/1.4mm, S390/1.2mm, S330/1.0mm, S280/0.8mm, S230/. 6mm, S170/0.5mm, S110/. 3mm, S70/0.2mm
2)cast Steel Grit G10/2.5mm, G12/2.0mm, G14/1.7mm, G16/1.4mm, G18/1.2mm, G25/1.0mm, G40/0.7mm, G50/0.4MM, G80/0.3mm, G120/0.2mm
3) Steel Cut Wire Shot: CW1.0mm, CW1.5mm, CW2.0mm, CW2.5mm
4)stainless Steel Shot, stainless Steel Cut Wire Shot. Aluminum Shot, zin Shot, copper Shot: From 0.3mm~2.5mm
