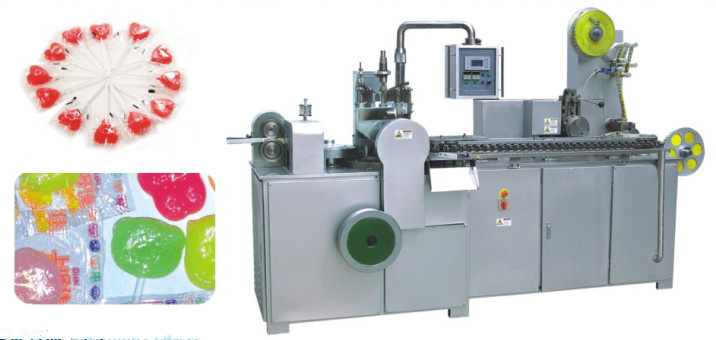

Shaped Lollipop Production Line
Application:Flat, shaped lollipop
Model: SH350
Capacity:3-4tons/8h
Products Detail
The fourth generation series of automatic PLC control vacuum film boil sugar lollipop continuous-casting production line is currently pouring lollipop advanced production equipment. Our machine, electricity, gas control in one, reasonable and compact structure, with a high degree of automation; high production efficiency, can produce monochrome, dual-color spray ignorant, ignorant of the two-color double-double, three-color spray and shamisen crystal sugar, bonbons, provision sugar, xylitol sugar-free lollipops and thinking odd lollipop and so on.
Automatic machine is equipped with a plunger system. Can realize the whole line automatic operation, automatic plunger system accuracy rate can reach 99%. After several improvements, the operation more simple and convenient. The entire production line according to food GMP standard, in line with food hygiene requirements of GMP, the food business easier by the food industry GMP, HACCP, QS and other professional certification. In addition to the production line also has the same hard candy production line casting the same characteristics: the replacement of mold and part of the device lollipop production line casting and pouring hard candy production line can be interchangeable.
The main technical parameters:
Model |
SH150 |
SH300 |
SH450 |
SH600 |
Standard Yield (kg / hr) |
150 |
300 |
450 |
600 |
The maximum weight of sugar |
26g |
26g |
26g |
26g |
Lollipop size |
t:18-28mm :Max 25mm |
Casting speed |
55-65n/min |
55-65n/min |
55-65n/min |
55-65n/min |
Stick specifications |
60-100mm |
60-100mm |
60-100mm |
60-100mm |
Compressed air demand |
0.2m3/min,
0.4-0.6Mpa |
0.2m3/min,
0.4-0.6Mpa |
0.2m3/min,
0.4-0.6Mpa |
0.2m3/min
,0.4-0.6Mpa |
Work Environment |
Temp:20-25ºC
Humidity:55% |
Temp:20-25ºC
Humidity:55% |
Temp:20-25ºC
Humidity:55% |
Temp:20-25ºC
Humidity:55% |
Total power |
18kw/380V |
27kw/380V |
34kw/380V |
38kw/380V |
The total length |
17m |
19m |
19m |
22m |
Gross weight |
3500kg |
4000kg |
4500kg |
5000kg
|
Our Service
1.Lower Price
We produce and export machine directly
2.Competitive Price
With a cheaper labor force which make our price more competitive.
3.On time shipment
Most developed highway system and logistics deliver company make sure on time
shipment.
4.Producing Line
Own advanced manufacturing equipments and computer controlled making machine,
so our factory implement assembly line entirely.
5.QC
Strict quality control system to make sure the quality is good and stable.
6.Sincerity
Once cooperation, the whole life friendship. Not for others just for the quality.
Shenghua Group Hebei Saiheng Food Processing Equipment Co., Ltd is an industrial company with rich experience, specializing in the manufacturing of various types of food machine. The company's main products: Biscuit production line, cake production line, candy production line, chocolate production line, various kinds of pastry equipment and food packaging equipment. "Good quality is the key to survive, Good credit standing is the key to develop" is the enterprise purpose of SaiHeng. With the management philosophy of "quality, service, innovation", under the efforts of SaiHeng people, the company achieves a rapid improvement in sales value year after year. The company's products are exported to Britain, Japan, Ireland, France, Africa and other parts of the world.
