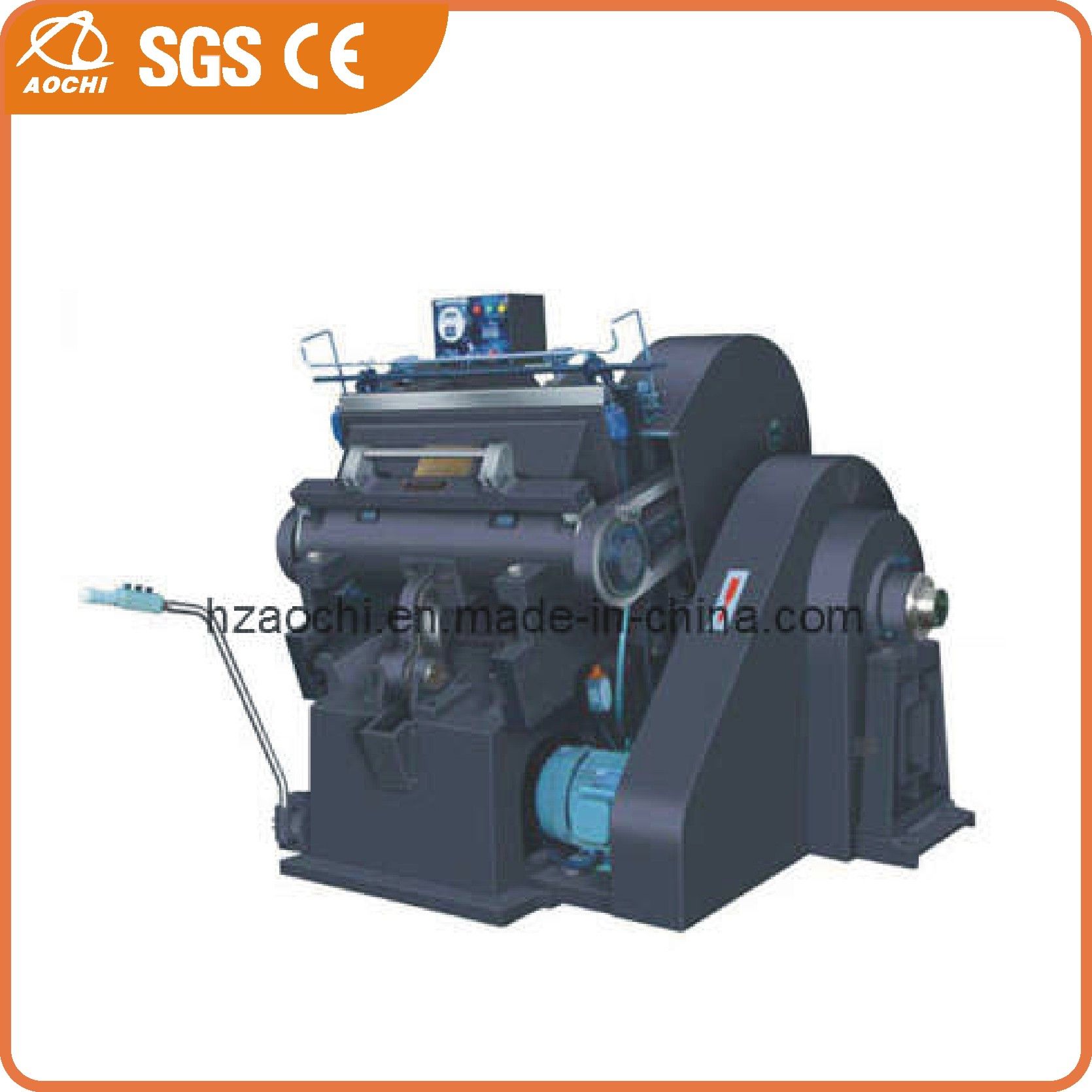

Semi-Automatic Die Cutting and Creasing Machine (ML-750)
| Price: |
Negotiable/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
Application:
ML-750 semi-auto die cutting & creasing machine is a special equipment of die cutting and creasing a wide range of materials, such as cardboard, corrugated board, plastic and leather. They are applicable to the fields of printing, packaging, decoration and plastic industries. ML machines have been acceptable for the customers from home and abroad, due to their outstanding features, high quality and good service.
Technical Parameters:
1.Sliding bearings are made of high quality alloy cooper, thus to get effect of anti-frietion and shake reducing.
2.Flywheel is with big moment of force and large pressure.
3.High strength due to one piece casting by using top-ranking material for machine body.
4.Single plate electromagnetic clutch is sensitive and reliable.
5.With functions of single, continuous and opening dweel operation, dwell range is adjustable.
6.Operating position is reasonably arranged, moving-bed can be opened to its optimum.
7.Central lubrication system guarantees fine lubrication and reduce friction.

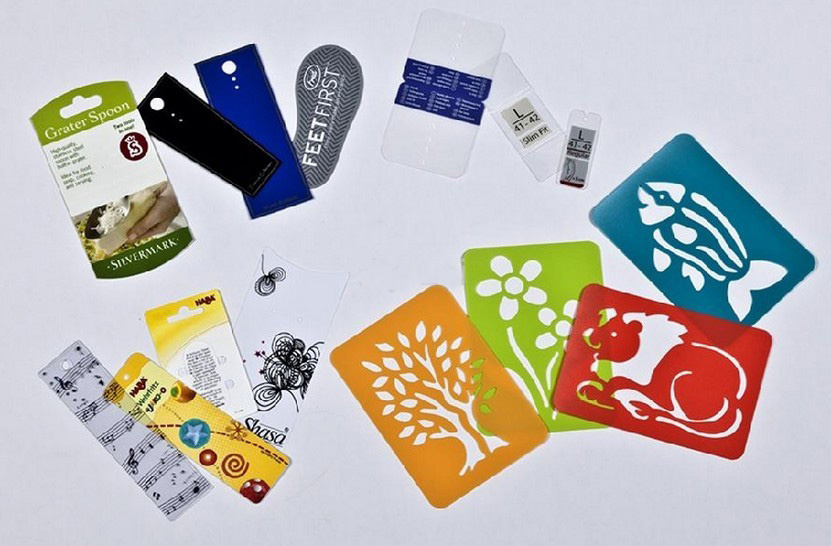

8.Safety system is reliable.Samples:
Technical Parameters:
|
Model |
ML-750 |
|
Max.Rule Area |
750*520MM |
|
Working speed |
25±2(strokes/min) |
|
Max Rule Length |
<15m |
|
Motor power |
2.2kw |
|
Overall Dimension(L*W*H) |
1450x1600x1450mm |
|
Weight |
1900kg |
| Prod Model: |
ML-750 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automatic Grade: |
Semi-Automatic |
| Placing Form Of Template: |
Vertical |
| Imprinting Type: |
Platen |
| Application: |
Paper Packaging Materials |
| Die Cutting Tool: |
Steel Plate |
Hangzhou Aochi International Co., Ltd. is professional exporter and manufacturer of printing and packaging and plastic machines & materials in China, set by jointed together of more than fifteen manufacturers.
In order to provide all around products and better service to our increasing customers, we adopt latest information technology. Using carefully selected local or overseas raw materials & components, most of our machine already got CE approved. Our engineer team provides design realization service for your every requirement, and employ professional trained staff, so we have quick response to different customer' S enquiry everyday.
If you are looking for relative machines and materials from China, we sincerely hope we can be your best choice! Let' S work together to build a much brilliant future now!
