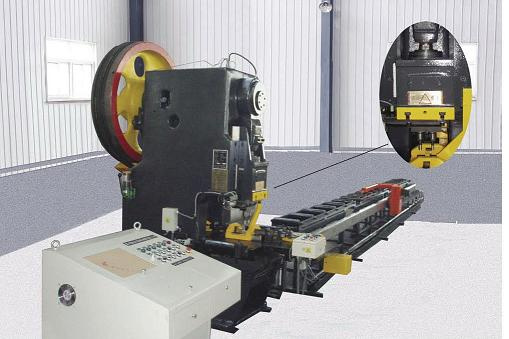

Semi-Automatic CNC Punch and Print Systems
1. It has two punching work position and a marking position.
2. Pressure controlled of hydraulic system by solenoid overflow valve, orientation transform by solenoid orientation transform valve, marking and punching pressure are controlled by two grade pressure adjustment valve, can supply different working pressure to punching and marking. The structure of whole hydraulic system is simple, use easily, and convenient for maintain.
3. NC system, not only realized NC to guarantee the distance of holes in portrait, but also realized NC at orientation core distance of angle steel, so it realized more stadia punching in double sides of angle steel.
4. The material path of our company compared with others, ours has special feature, have good rigidity, it will not distortion for long time use, design of externality in reason.
|
Model |
JC160 |
JC200 |
|
Functions |
Punching |
Punching |
|
Scope of angle(mm) |
L40× 40× 3-L160× 160× 12 |
L40× 40× 3-L200× 200× 12 |
|
Max. Diameter of punching(mm) |
Φ26 |
Φ26 |
|
Punches |
2 |
2/3 |
|
Stadia. Of punching(mm) |
Length of side ≥ 40~63 Stadia ≥ 42 |
|
|
Length of side ≥ 70~100 Stadia ≥ 32 |
|
|
|
Length of side ≥ 100~110 Stadia ≥ 42 |
|
|
|
Min. End distance of punching |
25 |
|
|
Marking force(KN) |
|
1000 |
|
Nominal force of punching(KN) |
800(1000) |
1000 |
|
Positioning speed of servo motor(m/min) |
X≤ 30 Y≤ 15 |
|
|
Programming mode |
Input by keybard, RS232 interface, floppy disk and usb interface |
|
|
Precision |
According to GB2694 |
|
|
Overall dimension(L× W× H)(m) |
18.9× 2.3× 2.6 |
22.5× 6× 1.8 |
|
Net weight(kg) |
8000 |
12000 |
