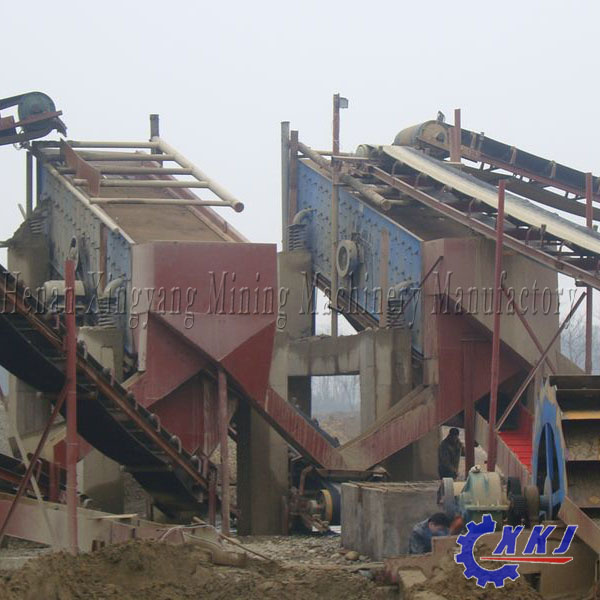

Electric vibrating sand screen work principle
By vibrating motor vibrator make an eccentric block produce high rotation speed. Operation of an eccentric block generates a lot of the centrifugal force, stimulate screen box produce certain amplitude of circular movement, sieve materials in a sieve surface tilt by screen box to the impulse and produce continuous casting movement, material and sieving meet process makes less than screen hole particles through sieve, thus realize grading.
Electric vibrating sand screen usage
YK type circular sieve trajectory for circle, mainly used in metallurgy ore dressing, coal cleaning, building materials, and electric power industries dry material classification of homework. This series of sieve machine adopts the current domestic most advanced ring groove rivet riveting, large clearance bearing grease lubrication vibrators,
Electric vibrating sand screen feature
With simple structure, durable, low noise, installation, maintenance is convenient wait for a characteristic
Circle vibrating screen by vibration source and sieving body, screen, vibration reduction device and composition, sieve machine lateral plate is made of high qualified steel plate making and become, lateral plate and beams, excitation objects bottom seat using high strength bolts or ring groove rivet connection, reasonable structure, firm is durable
|
Model |
Mesh size
(mm) |
Max feed
size
(mm) |
Capacity (m³/h) |
power
(KW) |
weight
(kg) |
Dimensions
(L*W*H)
(mm) |
|
2YK1225 |
4-50 |
400 |
8-60 |
5.5 |
2500 |
3040×1840×800 |
|
3YK1225 |
4-50 |
400 |
10-70 |
5.5 |
2850 |
3040×1840×1200 |
|
2YK1230 |
4-50 |
400 |
12-78 |
7.5 |
3000 |
3390×1900×800 |
|
3YK1230 |
4-50 |
400 |
13-80 |
7.5 |
3600 |
3537×1900×1200 |
|
2YK1237 |
4-50 |
400 |
15-86 |
7.5 |
3600 |
4090×1900×800 |
|
3YK1237 |
4-50 |
400 |
16-90 |
7.5 |
4200 |
4400×1950×1200 |
|
2YK1535 |
5-50 |
400 |
20-125 |
11 |
4890 |
4552×2250×900 |
|
3YK1535 |
5-50 |
400 |
21-125 |
11 |
5700 |
4552×2250×1600 |
|
2YK1545 |
5-50 |
400 |
22-150 |
15 |
5330 |
5400×2250×1600 |
|
3YK1545 |
5-50 |
400 |
22-150 |
15 |
5800 |
5400×2250×1700 |
|
2YK1548 |
5-50 |
400 |
22.5-162 |
15 |
5980 |
5300×2200×860 |
|
3YK1548 |
5-50 |
400 |
22.5-162 |
15 |
6600 |
5752×2200×1600 |
|
2YK1848 |
5-80 |
400 |
25-206 |
15 |
7080 |
6140×2470×1380 |
|
3YK1848 |
5-80 |
400 |
32-276 |
18.5 |
7600 |
6140×2710×1780 |
|
2YK1854 |
5-80 |
400 |
32-312 |
18.5 |
8150 |
6500×2600×1300 |
|
3YK1854 |
5-80 |
400 |
32-312 |
22 |
8840 |
6960×2600×1630 |
|
2YK2160 |
5-100 |
400 |
50-475 |
30 |
9780 |
7300×2950×2000 |
|
3YK2160 |
5-100 |
400 |
50-475 |
30 |
10800 |
7300×2950×2000 |
|
2YK2460 |
5-100 |
400 |
65-550 |
37 |
13600 |
7450×3230×1500 |
|
3YK2460 |
5-100 |
400 |
70-620 |
37 |
15600 |
7450×3230×1910 |
