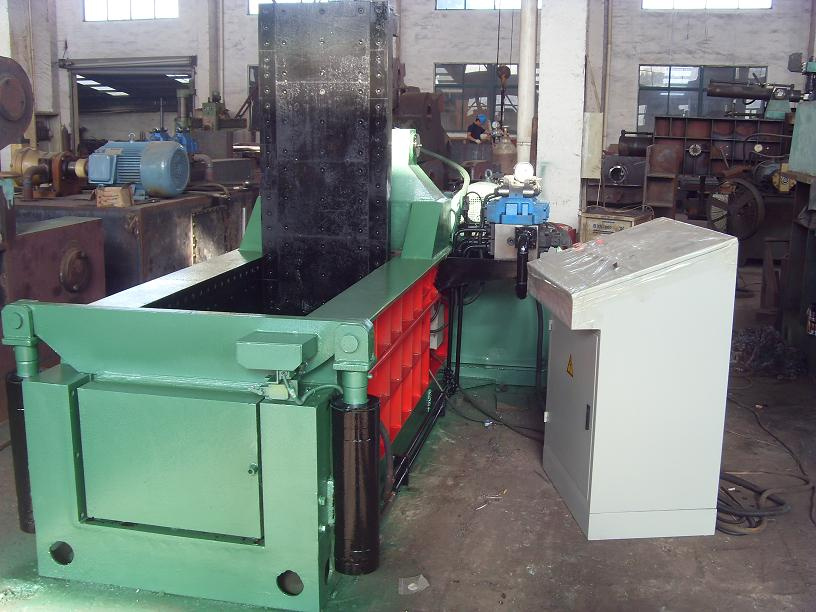

1. JPY81 series hydraulic metal baler is capable of extruding various metal leftover, steel paring, waste copper, alum-inum, copper, stainless steel and scraped car materials into qualified charging such as square column, cylinder, oct-agon body and other sharps, in a bid to reduce transportation & refining costs, and increase transportation speed.
2. Such baler is mainly used in steel plants, recycling corporation, turnings, leftorer material, waste recovery and nonferrous & ferrous metal refining industry.
3. Such machineries adopt hydraulic drives, with manual or PLC automatic control operation as options.
4. The discharging types fall into turning over, push out, forward out and manual lifting. The size of the compression chamber and the form and size of the bale can be designed and customized according to the requirements of the customers.
Model |
Fominal Forece |
Chamber size |
Bale section |
Power |
Operation |
Operation |
|
JPY81-100A |
100KN/100T |
1000*700*500mm |
250*250mm |
11KW/15HP |
Manual Valve/ |
Turn bag |
|
JPY81-100B |
100KN/100T |
1000*700*500mm |
250*250mm |
11KW/15HP |
PLC Automatic/PLC |
Turn bag |
|
JPY81-125A |
125KN/125T |
1200*700*600mm |
250*250mm |
11KW/20HP |
Manual Valve |
Turn bag |
|
JPY81-125B |
125KN/125T |
1200*700*600mm |
250*250mm |
11KW/20HP |
PLC Automatic/PLC |
Turn bag |
|
JPY81-135A |
135KN/135T |
1400*600*600mm |
600*240mm |
20KW/30HP |
Manual Valve/ |
Push bag |
|
JPY81-135B |
135KN/135T |
1400*600*600mm |
600*240mm |
20KW/30HP |
PLC Automatic/PLC |
Push bag |
|
JPY81-160A |
160KN/160T |
1600*1000*800mm |
350*350mm |
20KW/30HP |
Manual Valve |
Turn bag |
|
JPY81-160B |
160KN/160T |
1600*1000*800mm |
350*350mm |
20KW/30HP |
PLC Automatic/PLC |
Turn bag |
|
JPY81-200A |
200KN/200T |
1600*1200*800mm |
400*400mm |
30KW/40HP |
Manual Valve |
Lateral push bag |
|
JPY81-200B |
200KN/200T |
1600*1200*800mm |
400*400mm |
30KW/40HP |
PLC Automatic/PLC |
Lateral push bag |
|
JPY81-250A |
250KN/250T |
1800*1200*900mm |
450*450mm |
45KW/60HP |
Manual Valve |
Lateral push bag |
|
JPY81-250B |
250KN/250T |
2000*1400*900mm |
500*500mm |
45KW/60HP |
PLC Automatic/PLC |
Lateral push bag |
|
JPY81-315A |
315KN/315T |
2600*1750*1200mm |
600*600mm |
75KW/100HP |
Manual Valve |
Lateral push bag |
|
JPY81-315B |
315KN/315T |
2600*2000*1200mm |
500*600mm |
75KW/100HP |
PLC Automatic/PLC |
Lateral push bag |
|
JPY81-400A |
400KN/400T |
2600*2000*1200mm |
500*600mm |
2*45KW/120HP |
Manual Valve |
Lateral push bag |
|
JPY81-400B |
400KN/400T |
3000*2000*1200mm |
600*700mm |
2*45KW/120HP |
PLC Automatic/PLC |
Lateral push bag |
