Sand Casting for Wear Resistant High Chrome Steel Cast Iron

Packaging & Delivery

Packaging Details:	plywood case ,or depend on customer's requirements
Delivery Detail:	15-18 days after deposit payment confirmed

Discharge:1" to 18"(25mm to 450mm)
Flow:to 22,000 gpm(to 5,000m3/h)
Head:to240ft(to 73m)


1). SSH series metal/rubber heavy duty slurry pumps are designed for the most difficult pumping
     applications.

2). Extra sections at wear point and perfect impeller structure ensures satisfactory performance with
      long lige.

3).Rubber lined pump expand application to chemical products handling, several different rubber
     options are available to meet different application needs.
Features :

1).  Cantilever, horizontal centrifugal slurry pump
2).  Excellent hydraulic performance, high efficiency, and low wear rate
3).  Better wear-resistance and corrosive resistance
4).  Frame plate for type  pumps have replaceable wear-resistant metal liners or rubber liners. The
       impellers are made of wear-resistant metal or rubber
5).  In allowable pressure range, it can be used in series in stages, and allowable
      maximum working pressure is 3.6Mpa.
6).  Centrifugal seal, mechanical seal and packing seal are available .
7). The discharge branch can be positioned at interval of 45 degrees by request and oriented to any

       eight positions to suit installations and applications.
2, Models and introductions

Model	Capacity(m3/h)	Capacity(L/s)	Head(m)
1.5/1SSH	12.6-28.8	3.5-8	6-68
1.5/1SSHR	10.8-25.2	3-7	7-52
1.5/1SSBH	16.2-34.2	4.5-9.5	25-92
2/1.5SSH	32.4-72	9-20	6-58
2/1.5SSHR	25.2-54	7-15	5.5-41
3/2SSH	39.6-86.4	11-24	12-64
3/2SSHR	36-75.6	10-21	13-39
3/2SSBH	68.4-136.8	19-38	25-87
4/3SSH	86.4-198	24-55	9-52
4/3SSHR	79.2-180	22-50	5-34.5
4/3E-SSBH	126-252	35-70	12-97
6/4SSH	162-360	45-100	12-56
6/4SSHR	144-324	40-90	12-45
6/4S-SSBH	324-720	90-200	30-118
8/6-SSH	360-828	100-230	10-61
8/6-SSHR	360-828	100-230	7-52
8/6T-SSBH	576-1152	160-320	32-95
10/8SSM	540-1228	150-340	15-61
10/8SSMR	540-1188	150-330	10-42
10/8-SSH	612-1368	170-380	11-61
10/8-SSHR	540-1188	150-330	12-50
12/10-SSH	936-1980	260-550	7-68
12/10-SSHR	720-1620	200-450	7-45
14/12-SSH	1260-2772	350-770	13-63
14/12-SSHR	1152-2520	320-700	113-44
16/14-SSHR	1368-3060	380-850	11-63
16/14-SSH	1669-3798	472-1055	14-75
18/16-SSH	2160-5040	600-1400	8-66
20/18-SSH	2520-5400	700-1500	13-57

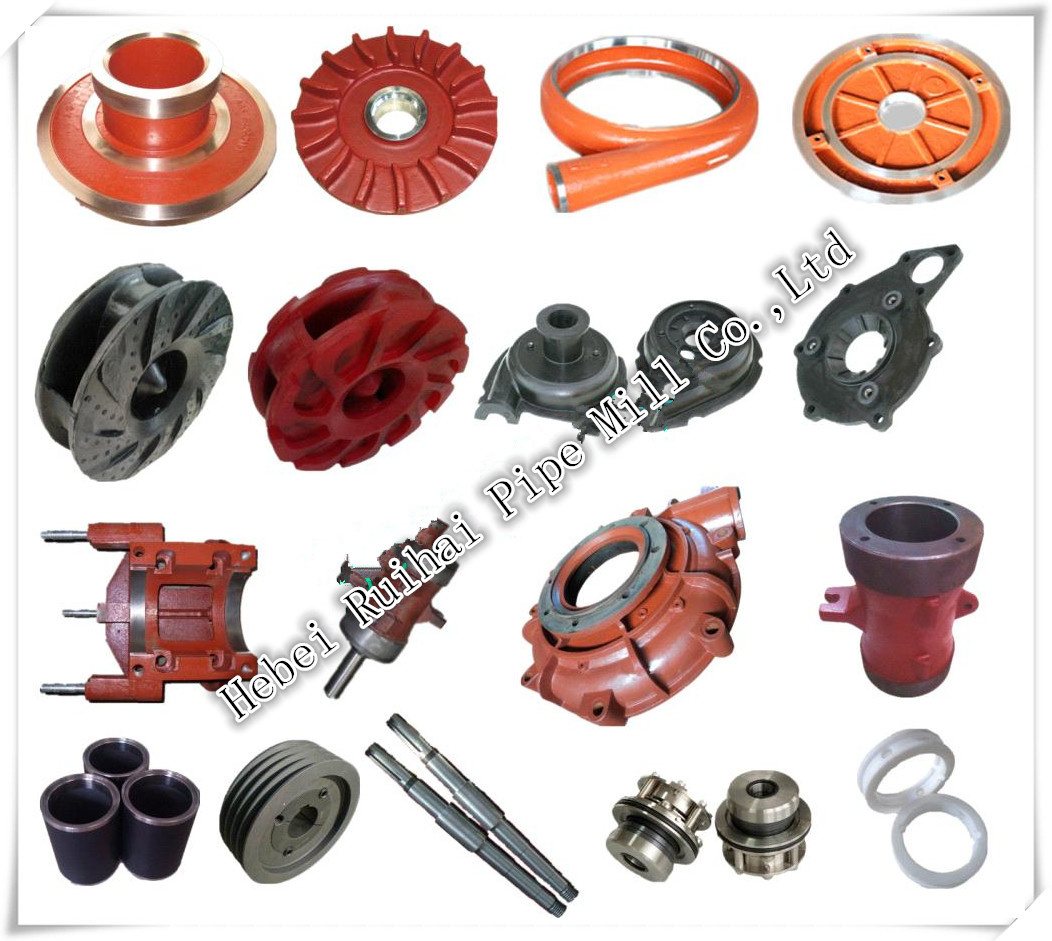

Shaft sleeve
A large percentage of duties allow the use of the centrifugal seal which eliminates the need of sealing water.
Gland shaft seal
A packed gland type shaft seal is also available and can be fitted with a low flow or a full flow flush seal water arrangement.
Shaft and bearing assembly
A large diameter shaft with a short overhang minimizes deflection and vibration.Heavy-duty roller bearings are housed in a removable bearing cartridge.
Pump Base
A minimum number if through bolts hold the pump casing to the frame .A means of impeller adjustment is provided in a convenient position below the bearing housing.
Outer Casing
Split outer casing halves of cast or ductile iron contain the wear liners and provide high operation pressure capabilities.
Impeller
The impeller may be either molded elastomer or hard metal. Deep side sealing vanes relieve seal pressure and minimize recirculation.
Cast-in impeller threads are better suited for slurries.
Interchangeable hard metal and molded elastomer liners
Mating faces in hard metal liners are tapered to allow positive alignment during assembly and allow components to be easily removed for replacement.
Hydraulic seal rings give positive sealing between mating faces.


FAQ
1 / Q: Are you a manufactory or trading company ?
   A: We are water pump manufactory with more than 30 years production
experience.
2 / Q: What's your MOQ?
   A: Trial sample order is OK .
3 / Q: What's your payment terms?
   A: T/T , L/C , D/P, D/A ......
4 / Q: What certificates do you have ?
   A: CE , ISO 2008 , UL .....
5 / Q: How about the warranty ?
   A: One year warranty for pumps .
6 / Q: What is the delivery time ?
   A: 15-30 days according to customer quantities .
7 / Q: Can you do OEM brand ?
   A: Yes, Welcome .
8 / Q: How to buy our pumps ?
   A: Firstly we should know from you :
      What is the fluid ?
      Clean water(temperature), dirty water(temperature), particles,or slurry ?
      What is the capacity and head ?
      The capacity and head range ?
      What is the voltage and frequency of three phase electrcity ?
      Other conditions from customer if possible : pump type , motor ?
      With complete information, then we selected the pump and feedback to you.
      If you have special requirement, such material, please inform us .
9 / Q: Quality reliable ?
   A: We have cooperated with customers from European, Asia, Africa,
Middle east, Australia, North and south America for more than 20 years,
Quality if life and we observe international standards on each kind of pumps .
10 / Q: How to replace parts ?
A: In the order period, we will list our vulnerable parts and their
quantities to our customer, and sold at competitive price, then ship together
with pumps if customer needs.
