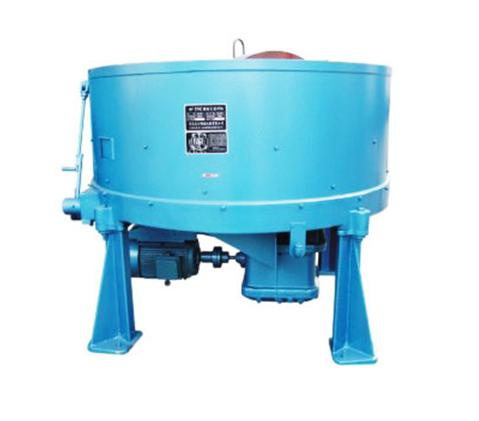

Green sand mixing machine specification:
/Type
S1110
S1110A
S114C
S1118
S1120D
S1320D
(mm)
diameter of disk
φ1000
φ1000
φ1820
φ1800
φ2000
φ2000
(Kg)
feeding amount of one time
110
110
500
500-650
900
900
(t/h)
productivity
1.5~2.5
1.5~2.5
10~13
13~15
20
20
(rpm)
rotating speed of driving shaft
44
44
34
36
34
34
(kw)
Power of driving motor
4
5.5
15
22
37
37
wheel structure:
1 roller 2 cross shape support 3 support arm 4 sleeve structure 5 spring device
6 piston rod 7 adjust sleeve 8 draw bar 9 crank 10 crank shaft
At the beginning of mixing , the intensity of foundry sand is low , so the height of sand which pressed under the roller is lower , see h2.
After mixing continue , the intensity of foundry sand is become higher , this will cause the height of roller will rise to a new degree , see h1 , because the spring structure and adjust sleeve , we can get a good continual process of sand mixing , which let the binder and sand mixing perfectly .
We can adjust the force by the parts 7 to get a better result .
1 crank 2 sealing cover 3 roller 4 mixing bar
