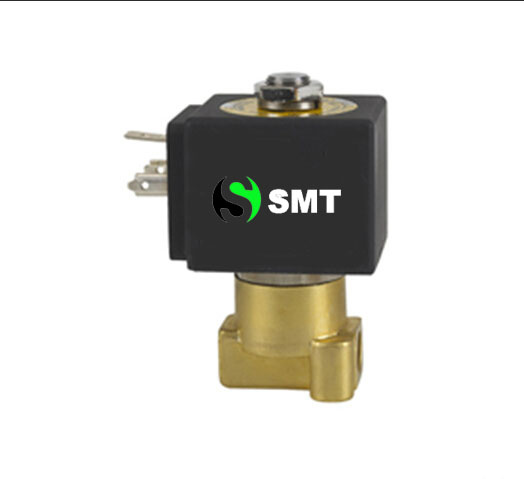

RSW miniature solenoid valves, G1 / 8 "Details:
Suitable medium: Water, air, oil (20CST below)
Medium temperature: -5 ~ 80 º C
Action: Direct-acting
Work Type: Normally Closed
Body material: Brass (forging)
Seal material: NBR NBR
Coil protection factor: IP65 plastic coil
| Model | RSW010 | RSW012 | RSW015 | RSW020 | RSW025 | RSW030 |
| Thread G | 1/8" |
| Orifice | mm | 1.0 | 1.2 | 1.5 | 2.0 | 2.5 | 3.0 |
| CV value | 0.03 | 0.05 | 0.11 | 0.15 | 0.20 | 0.25 |
| Working Pressure | Kgf/cm 2 | 0~15 | 0~12 | 0~12 | 0~10 | 0~8 | 0~5 |
| Working Temperature | -5 ~80 (-10 ~130) |
| Rated Voltaged | AC:220V~AC:230V/50-60HZ DC 24V etc |
company frofile
Our company is specialized in manufactuing all kinds of valves,hydro-pneumatic components,alumium parts and plastic parts.Our main products are including pneumatic cylinder,solenoid valve,air filter,air regulator,air lubricator,pneumatic fitting,hydraulic fitting,tubes etc.as below;
*ISO Standard Cylinder:DNC/SI(ISO6431&6432)
*Standard Cylinder:SC/SU,
*Mini Cylinder:MAL,MA,,MI,CJ2B,CDM2B
*Compact Cylinder:SDA,CQ2
*Cylinder:CU,TN,STM,MGP
*Solenoid Valve:3v1,3v,4v,4M,3A,4A ,etc
*Air Source Treatment Unit:A,HA,HNA,T,A/B,etc
*pneumatic accessories:fitting,hand valve,muffler,tube,pressure switch
Ningbo Hi-Tech Smart Pneumatic Co., Ltd. is specialized in manufacturing all kinds of hydro pneumatic components, aluminum parts and plastic parts. Our main products are including pneumatic cylinder, (air cylinder), solenoid valve, air filter, air regulator, air lubricator, pneumatic fitting, hydraulic fitting, tubes, muffler (silencer) etc.
SMART PNEUMATIC take the lead in passing ISO9001 quality system certification and UKAS system certification in this industry and equip with a complete set equipment (CNC machine, data control lathe, and all kinds of testing machines) and checkout system. Under the joint effort of all our members, SMART PNEUMATIC has already established a strong foundation today.
SMART PNEUMATICS' Sprit is to give you the best quality, the competitive price, the quick delivery, the perfect service. Our goal to customers is "Always Smart Solution for your Automatic System. "
SMART PNEUMATIC believes our profession and efficiency will make your international business easier and quicker.
SMART PNEUMATIC hopes to work together with you, developing in parallel!
