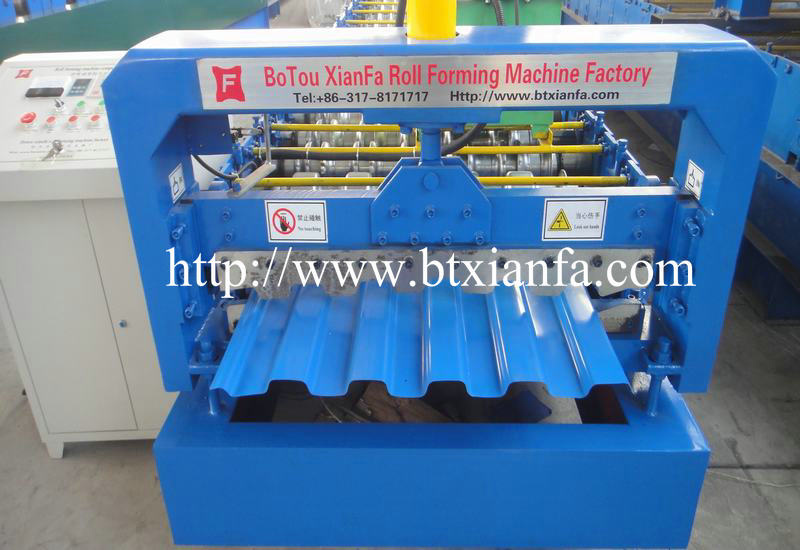

Roof Panel Color Steel Roofing Roll Forming Machine (XF25-940)

Roof Panel Color Steel Roofing Roll Forming Machine (XF25-940)
Price: Negotiableset
Trade Terms: FOB,CFR,CIF
Min Order: 1set
Pay Type: L/C,T/T
Roof Panel Color Steel Roofing Roll Forming Machine

Application
This type of sheet can be widely used in plant, house, storage and simple
steel roof and wall. It has advantage of pretty appearance, durable using and
so on.


Quick Detail
1.Suitable to process: Color steel plate
2.Width of the plate: 940mm
3.Rollers: 19rows
4.Dimensions: 8.1*1.45*1.51m
5.Power: 4+4kw
6.Rolling material: high grade 45# steel(plated chrome on surface)
7.Thickness of the plate:0.3-0.6mm
8.Voltage: 380V 50Hz 3phases
9.Material of the cutting plate: Cr12
10.Hydraulic: 40#
11.Processing precision: Within 1.00mm
12.Control system: PLC control

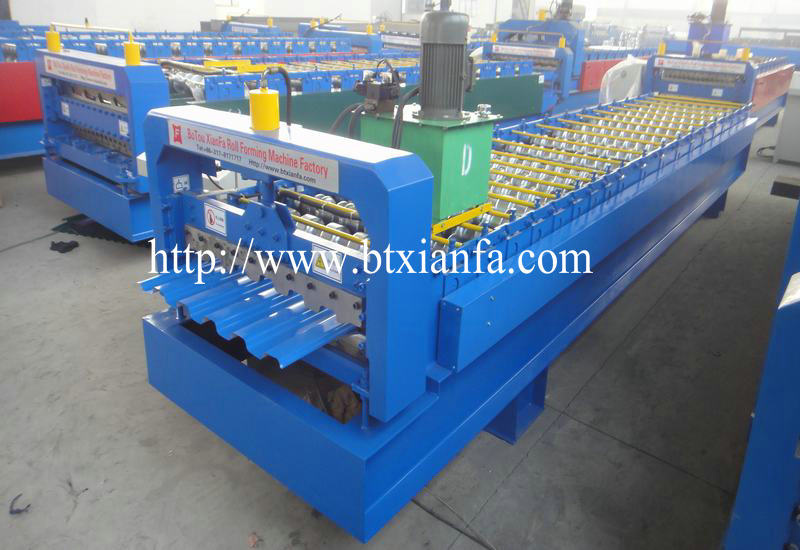

Roof Panel Color Steel Roofing Roll Forming Machine
Equipment Components: Man-Made Uncoiler-Roll Forming Machine
Computer Control System Hydraulic Control System-Press Form-Cutting

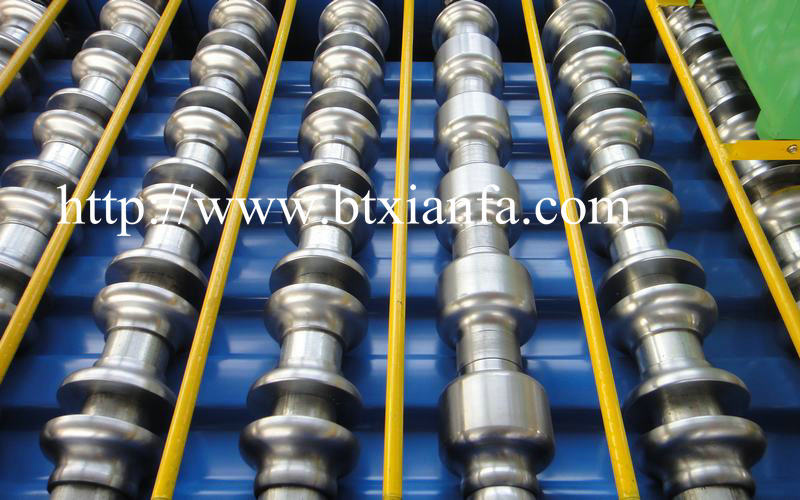

Roof Panel Color Steel Roofing Roll Forming Machine Rollers
Material of rollers:45# steel,roller surfaces polishing, hard plating
The polished surface and the heat treatment towards the molds also can keep the molding Plate surface smooth and not easy to be marked when it is being stamped

Color Steel Roofing Roll Forming Machine Production Sample
1.We have a professional design team
2.Can also design and manufacture according to customer's requirement.


Competitive Advantage

1.ISO certification
2. CE certification
3. PLC Panasonic
4. One year free warranty
5. Low loss, easy operate


Botou Xianfa Roll Forming Machine Factory

Recently,our products have been exported to more than 70 countries
And regions over the world
And maintained good cooperative relations with customers
We do firmly believe in technological  innovation and making
Every detail of the product perfect is our ambition ever


If you need our product, please contact me.
Looking forward to cooperate with you

No.                           Main parameter of  Roofing Roll Forming Machine
1 Suitable to process Color steel plate
2 Width of the plate 940mm
3 Rollers 19 rows
4 Dimensions 9100*1450*1510mm
5 Power 4+4kw
6 Thickness of the plate 0.3-0.6mm
7 Productivity 15-20m/min
8 Diameter of the roller Φ 70mm
10 Voltage 380V 50Hz 3phases
11 Rolling material Forging Steel 45#
12 Material of the cutting plate Cr12
13 Hydraulic 40#
14 Processing precision Within 1.00mm

Prod Model: XF25-940
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate: CE
Weight: About 3.6 T
Color: Blue
Forging Forming Method: Roll Forming Machine
Botou Xianfa Roll Forming Machine Factory
It is established in 1996, specializing in colored steel tile forming machinery. With the development of the economy, colored steel tile is widely used in constuction industory. Therefor customers need not only large quantity but also high quality. Our factory produced many now machinery such as CNCauto forming machine. Colored steel tile forming machine, colored steel tile equipment, colored steel tile machinery, Antique glazed tile line, roof load bearing line, compound board line, roll shutter door forming machine and dainpipe on the basis of nomal roll forming machine. At the same time we also produce Anode pole equipment of ESP, fast guardrail equipment and exc. Our products such as C&Ztype purline machine cutting systom, automatic punching have already reached the advanced level of the other suppiers. Our products cover all over the country and also are exported to Russia, Myanmar, Mongolia, Rumania, Iraq, south Korea, Canada, Mozambique Bahrain, Bolivia, Angola, Paraguay, Turkey, Sri Lanka, etc. Beautifu appearence, reasonable construction, pretty design of the tile won good reputation from colored tile products line and oversea customers.
