| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Roof Forming Machine |
Product Description

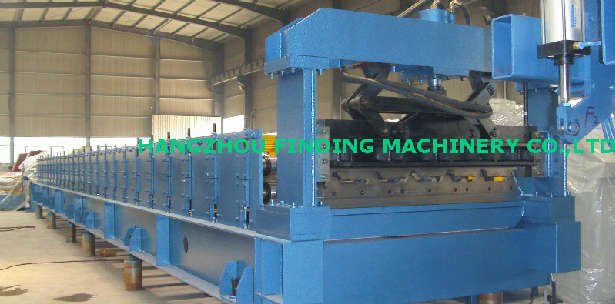

Our product name: Roof forming machine, steel roof forming machine, steel roof/wall forming machine.
Product Feature: The product from the roll forming machines looks beautiful and widely used as the roof & wall of garden, factory, hotel, exhibition center, etc.
Machine's components: Roll forming machine consists of uncoiler, coil sheet guiding device, main roll forming system, cutting device, Hydraulic station, PLC control system and support table.
Main technical parameters:
1. Suitable material: Color steel sheet or galvanized steel sheet
2. Thickness of raw material: 0.4-0.7mm
3. Yield strength of material: 235Mpa-345Mpa
4. Forming speed: About 15-20m/min
5. Power Requirement:
Main motor power: 5.5Kw (Depend on final design)
Hydraulic station power: 2.2Kw (Depend on final design)
6. Uncoiler's loading capacity
Max. Capacity: 5000kgs(can be increased to be 10T as per buys' requirements)
7. Controlling system: Mitsubishi PLC & converter
8. Machine's size: About 20m*1.5m*1.4m (Depend on final design)
9. Machine with CE certificate.
Hangzhou Finding Co., Ltd, is a Group company, we have our own factory to make steel roll forming machine, such as tile forming machine, corrugated steel sheet forming machine, c or z purline machine, floor decking sheet forming machine, sandwich panel machine line, cut to length machine line, shutter door forming machine, embossing machine, etc.
Factory to make Steel coils( GI, PPGI, GL, PPGL )
Factory to make corrugated steel sheet
Factory to make EPS and PU sandwich panel
Factory to make solar cell and solar panel
Success of our company comes from success and development of our customers. We bear this in mind in the whole process from design, product research and development to after-sales service.
