| 1. Profile |
1.1 Feeding width: 1000mm 1.2 Effective width: 840/900mm 1.3 Material thickness: 0.3-0.8mm |
| 2. Process flow |
Decoiling--feeding---forming---cutting---production |
| 3.Manual Decoiler |
3.1 Material coil inner diameter: 450mm-700mm 3.2 Max coil width: 1200mm 3.3 Carrying capacity: 5T |
| 4.Forming Device |
4.1 Number of forming steps:13 steps 4.2 Shaft material: 45# steel with harden treatment, outer diameter 75mm 4.3 Roller material: 45# steel 4.4 Main motor power: 4kw 4.5 Forming speed: 8-10m/min 4.6 Voltage:380V/50Hz/3 phrase |
| 5.Cutting Device |
5.1 hydraulic cutter 5.2 blade, puncher and mold material: Cr12 steel with quenched treated 60-62C 5.3 cutting system: advanced hydraulic drive, automatic cutting after forming, no distorting or wasting, high level safety factor. |
| 6.Controlling Device |
6.1 screen: 5.7 inch Taida screen from Taiwan 6.2 PLC: Taida DVP14ES from Taiwan 6.3 coder: Japanese Omron E6C2 |
| 7. Hydraulic |
7.1 Advanced hydraulic system from Taiwan 7.2 Power: 3kw |
| 8.Simple output frame | simple frame weld bu #8 U bar, 1 pcs of 3m |
| 9.Payment and terms |
Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment. Delivery: within 20-25 days after receipt of deposit. |
| 10.Warranty | One year, and we will provide the technical support for the whole life. |
|
11. Packing |
Container packing of the line suitable for overseas shipping The subject can be loaded in one 40’ GPcontainer. Packing style: Naked and covered by plastic film, spare parts and some small parts packed in wooden box. |
| 12.Assemble, train the machine | It is free to assemble and train the machine, but the buyer must pay for the round-trip airplane ticket, and arrange accommodation during that time |
|
13. Maintain |
It is free to maintain the machine the first year after you buying, include changing the main components. The first year hence, you will pay for our technician $50/day to maintain the machine. And its component is not free, if you need to get it from us. (The buyer should supply airplane ticket and accommodation, if he need maintain). |

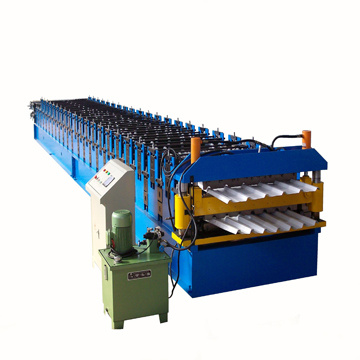

| Prod Model: | ZY840/900 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: | According to Customers' Requirement |
