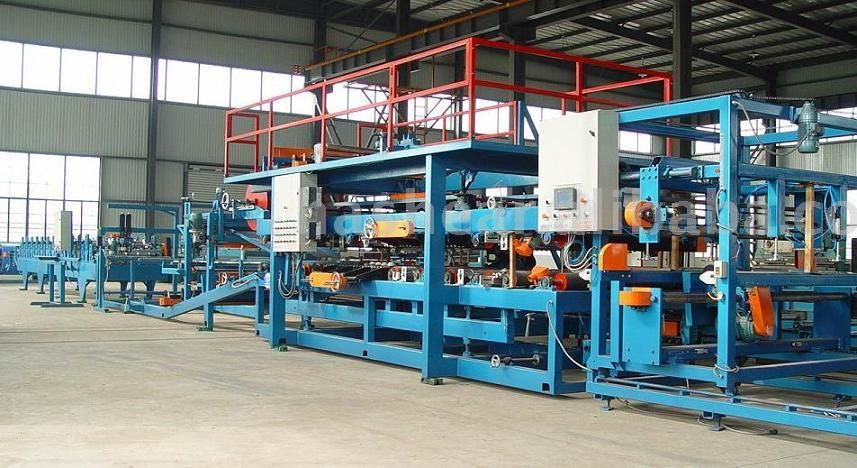

Rock Wool Composite Sheet Roll Forming Machine

Rock Wool Composite Sheet Roll Forming Machine
Price: US $ 45000/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: T/T
Constituent parts: Decoiler, roll forming machine, composite mainframe, cutting parts, find product rack
Forming size: 45000*3000*2800
Feeding width: 1000mm/1200mm
Main motor power: 32KW
Working speed: 0-4.05m/min
Equipment weight: 20T
Electrical system: PLC Taiwan fengwei

Rolling thickness: 0.3-0.8mm
Power source: AC380V/50-60HX
Decoiler: Bearing 5-7tons
Number of forming rollers: 13rows
Thickness of chain: 0.6 inches
Out diameter of shaft: 70 mm
Middle plate: 12mm
Big frame: 300 channel steel
Composite mainframe: Squar Steel tube: 80*160 Glue shaft: 150 19roots
Constituent  parts: Decoiler,   roll  forming  machine,   composite  mainframe,   cutting  parts,   find  product  rack
Forming  size: 45000*3000*2800
Feeding  width: 1000mm/1200mm
Main  motor  power:   32KW
Working  speed: 0-4.05m/min
Equipment  weight: 20T
Electrical  system: PLC  Taiwan  fengwei
Rolling  thickness: 0.3-0.8mm
Power  source: AC380V/50-60HX
Decoiler: Bearing  5-7tons
Number  of  forming  rollers: 13rows
Thickness  of  chain: 0.6  inches
Out  diameter  of  shaft:   70  mm
Middle  plate: 12mm
Big  frame: 300  channel  steel
composite  mainframe: Squar  Steel  tube:   80*160  Glue  shaft:   150    19roots
Prod Model: do based on your detailed requirement
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Quality: We Provide The Technical Support for Whole Life
Product Warranty: 12 Month
Control System: Automatic Computer Control System
Shearing System: Automatic Hydraulic Shearing Machine
Botou Shibo Machinery Manufacturing Co., Ltd. Founded in 2001, specialized in Design, Manufacture, Installation, Debug of Color Steel Roll Forming Machine, is a private enterprise. With many years experience, we have developed many new products of Profiling Equipment, which rich the Color Steel Profession, make our machinery more reasonable, artistic and practical and obtain the consistent high praise of the new and old customers

Our company specializes in producing and designing each kind of roll forming machine such as roll forming machines for metal roof tiles, wall sheets. While consummating the old model, with the continuous efforts of our scientific researchers, our company developed one after another of Automatic Cutting and Punching C-Type Steel Roll Forming Machine, automatic cutting and punching Z shape roll forming machine, the production line of Glazed Tile Machine in the style of antiquity, Automobile Panel Machine, Guardrail forming machine, shutter door forming machine, which have the advanced technical level

Our equipments keep a foothold in the domestic market, at the same time, we develop international market actively. Having exported our equipment to Europe, Africa, Russia, Burma, Pakistan, Sri Lanka, Uzbekistan and other countries and regions, and we have received praise from the foreign customers.

The service aim of our company persistence "the quality first, the prestige first" we wish to build the best machine for customers. So our company all employee's enthusiasm welcome the people of different walks of life comes the investigation, talks cooperation
