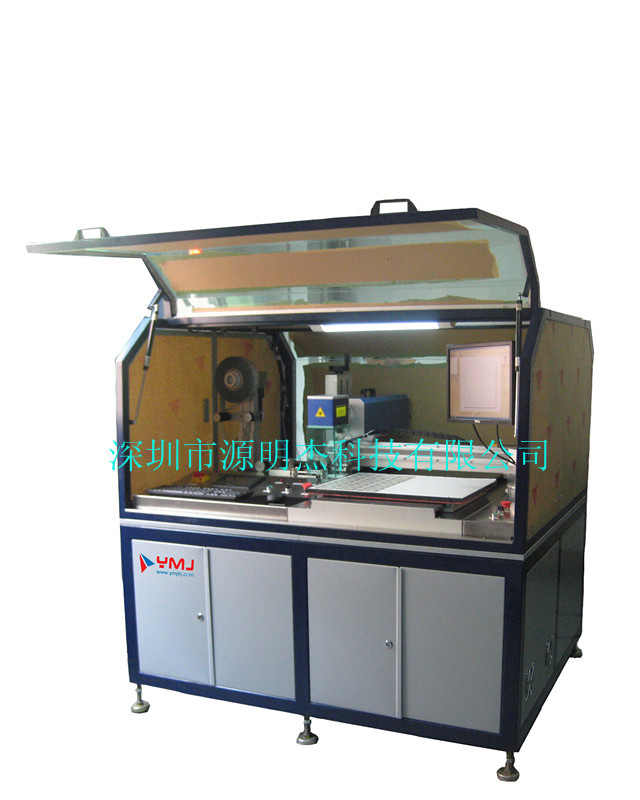

Model: YMJ-RFID-1800
Features:
The RFID placing machine uses the laser cutting technology to cut the label. Just need one person to operate, which save the labor and reduce costs, at the same time, ensure the quality of the products.
In the machine structure, the machine is easy to operate and maintain, which enhances the service life of machine and the productivity.
The appearance and style of the machine is concise and easy, rationalization and hommization, and the user-friendly operator interface protect the safety of operators. We can also design the different style appearance according to different requirement.
We offer the perfect after-sale service and technical follow-up, and provide paid lifelong maintenance.
Main Function:
1. This machine is used to cut off the RFID and surface mounting the RFID on the PVC automatically.
2. The machine has the advanced cutting technology. As special material, the machine adopts creative laser cutting technology instead of the traditional punching cutting technology, which is easy and fast to adjust and strong compatibility, etc
3. The structure design is simple. The laser technology simplifies the mechanical structure which makes it easy to debug and maintenance.
4. Servo system ensures accurate location.
5. The sensors monitor the strip RFID to ensure the accurate positioning,
6. Placing the label automatically.
7. Machine runs stable and the RFID are flattening distributed.
8. The perfect design of the software and the laser software make the machine much more easy and convenient,
9. According to different requirements, surface mounting the RFID on different layout
Equipped With:
Control system: Taiwan DELTA PLC
Screw: Taiwan HIWIN
Servo system: Taiwan DELTA
Laser: Make in China
Slider: Taiwan HIWIN
Power supply: Taiwan MeanWell
Air cylinder: SMC
Solenoid valve: SMC
Zero-dedect induction switch: SUNX
Vacuum generator: SMC
Fiber optic sensor: SUNX
Technical Parameters:
Overall dimension: Approx. L1700*W1400* H1650mm
Weight: Approx. 700kg
Power supply: AC220V 50/60Hz 20A
Power: 3.5KW
Air pressure: 6 kg /square centimetre
Air consumption: 120L/min
Control: Servo system+ PC
Tolerance of adjustment: 0.01millimetre
Accuracy: Scale of servo system = 0.01millimetre
Applicable materials: Strip RFID
Operator: 1 person
Output rate: 1800PCS/hr
Product percent of pass: 99.8%
Shenzhen Yuanmingjie Technology Co., Ltd., located in nanchang huafeng shiji science park, gushu, bao'an district, shenzhen, has gathered under its name many professionals active in the card manufacturing for more than 10 years and experienced engineers in equipment development. The company combines R&D, production and sales businesses as a whole, and is dedicated to provide smart card manufacturers with premium manufacturing equipment and supporting solutions.
Its products mainly include full auto milling machine, full auto embedding machine, full auto SIM card punching machine, full auto IC card three-in-one (milling, embedding & testing) machine, dual interface card assembling machine, COB surface mounting machine, full auto bonding machine and etc.
