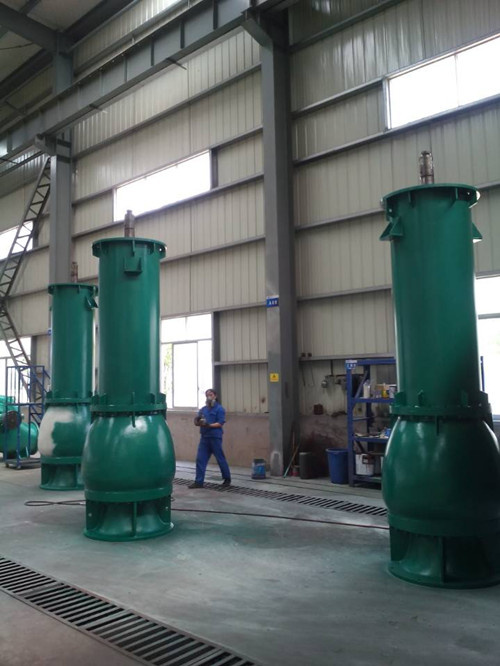

Reasonable Structure Vertical Mixed Flow Pumps(700VXL)
Brief Introduction:
The series of VXL Vertical Mixed Flow Pump, which integrated with the new domestic & external advanced technologies and modern design measure CFD soft analysts, are developed and innovated a series of new generation pumps by our company. Reasonable structure, excellent performance and high reliability are their main characteristics.
Applications:
Wind-driven pump in irrigated area cycling pump in great power plants
Transporting abrasive media transporting mixed gravel and sand flow.
Working conditions:
Capacity: 0.84~20m3/s
Head: 4~58m
Media: River water, sea water, if delivering mixed granule liquid, list it in the order.
Features:
1. Three-dimensional modeling: Reasonable structure and wider application
2. Application of CFD, good performance high efficiency, which is improved by 3%-6% compared to the old generation
3. High reliability, Long service life.
4. Occupying less area, save basic investment, convenient to construct
5. Easy maintenance
6. Derivative products can be elected according to working conditions
Type: VXL-U
The flange is on the adaptor plate, the illustration shows that the internal casting parts can't be taken out.
Type: VXL-D
The flange is under the adaptor plate, this illustration shows that the internal casting parts can be taken out.
|
Type |
Capacity
(m 3 /s) |
Head
(m) |
Eff.
(%) |
Speed
(r/min) |
(NPSH)r
(m) |
Motor Power
(kw) |
Weight
(x10 3 kg) |
|
700VXL-U18 |
0.70
0.84
1.01 |
20.0
18.3
14.5 |
80
83
72 |
740 |
4.6
5.1
6.1 |
220 |
9.5 |
|
700VXL-U24 |
0.78
0.90
1.10 |
26.2
24.0
18.8 |
77
83
80 |
980 |
6.2
6.5
8.1 |
315 |
12.5 |
|
700VXL-U52 |
0.88
1.12
1.35 |
58.8
52.0
44.0 |
84
87
86 |
740 |
8.5
10.1
12.8 |
800 |
12.0 |
|
800VXL-U8 |
1.42
1.70
1.90 |
10.2
8.0
5.6 |
81
83
81 |
590 |
6.0
6.4
7.9 |
185 |
9.5 |
|
800VXL-D13 |
1.30
1.50
1.78 |
15.0
13.4
9.3 |
83
86
88 |
590 |
6.7
7.0
8.8 |
315 |
8.3 |
|
800VXL-D25 |
1.50
1.67
1.82 |
27.0
24.5
22.0 |
83
86
88 |
980 |
8.5
9.1
9.7 |
560 |
9.0 |
|
800VXL-U36 |
1.52
1.77
1.95 |
39.5
36.0
32.0 |
82
85
85 |
980 |
8.7
9.0
10.0 |
900 |
10.5 |
|
800VXL-U51 |
1.10
1.44
1.68 |
62.3
51.0
42.4 |
81
86
83 |
740 |
9.1
10.0
10.8 |
1000 |
21.0 |
|
900VXL-D20 |
1.00
1.20
1.50 |
22.0
20.0
13.0 |
80
86
80 |
980 |
6.6
7.2
9.2 |
355 |
14.0 |
|
1000VXL-U15 |
2.24
2.50
3.08 |
16.9
15.2
11.0 |
83
87
87 |
590 |
5.4
5.9
7.0 |
500 |
7.8 |
|
1000VXL-D20 |
1.18
1.58
1.71 |
24.1
20.0
18.2 |
83
86
83 |
590 |
5.0
5.6
6.4 |
450 |
15.0 |
|
1100VXL-D21 |
1.75
1.90
2.37 |
22.0
21.0
13.5 |
85
87
81 |
590 |
6.1
6.5
7.5 |
560 |
15.0 |
|
1100VXL-D25 |
2.05
2.53
2.95 |
25.0
20.7
14.3 |
86
84
80 |
590 |
5.8
6.6
8.4 |
710 |
14.0 |
|
1200VXL-D10 |
2.78
3.23
3.65 |
12.8
10.2
5.8 |
88
88
85 |
495 |
4.9
4.9
6.8 |
450 |
21.0 |
|
1200VXL-U10 |
3.10
3.73
4.10 |
21.5
17.0
13.8 |
84
87
84 |
590 |
7.0
8.0
8.8 |
900 |
13.0 |
