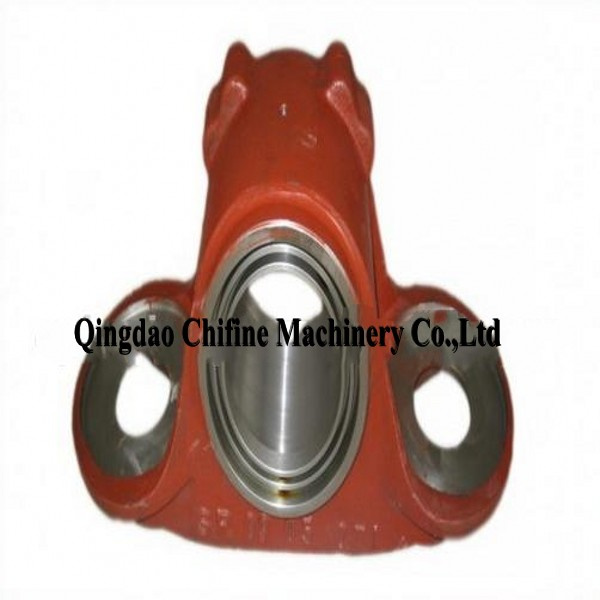

Railway/Truck Parts Axle Box Body
| Price: |
US $ 1000-1500/Ton |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
1. Specification
(1) Standard: Custom made or OEM fabrication
(2) Certificate: SGS

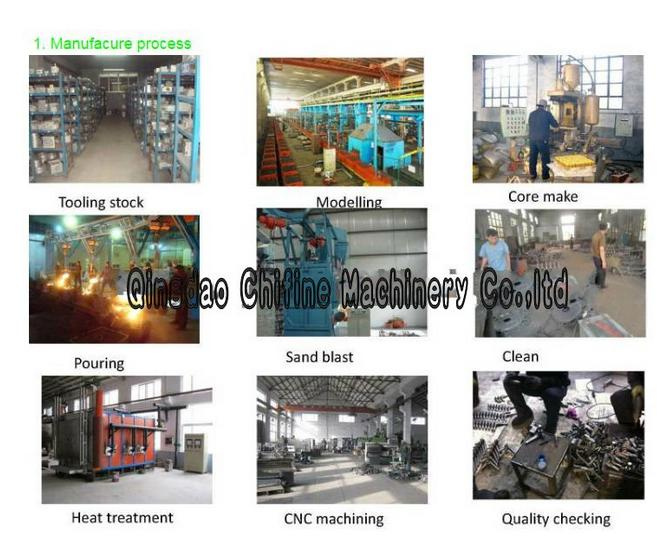

(3) Process: Precision Casting, Heat Treatment, Precision Machining
(4) Material: Iron casting & steel casting & Stainless steel & carbon steel & alloy steel
Iron casting part Ductile iron casting, grey iron casting, graphite iron casting Steel casting part
Carbon steel, alloy steel, stainless steel
2. Why you choose Qingdao Chifine Machinery Co.,Ltd ?
1) 15 years foundry experiences in metal castings
2) Raw materials: grey iron, ductile iron casting and casting steel
3) Process: Sand casting, centrifugal casting, and die forging.
4) Melting capacity: 5000Tons/Year, Electric Furnace Melting
5) Products applications: metal spare parts for train, railway, truck, tractor, trailer, excavators and etc
6) Metal products weight: 200KG-5000KG
7) Surface treatment: sand blast, rust proof oil, antirust paint, and polishing.
8) Precision machining: lathe, CNC, drilling machine, milling machine, boring machine, planting machine, machining center
9) Precision machining tolerance: rough parts:0.5mm, machining:0.05mm, finish machining:0.005mm
10) Material standards: GB, JIS, AISI, SAE, ASTM/ASME, EN, DIN, GOST and etc
11) Seaworthy transport: wooden pallet, wooden cases or steel strip wind up and etc
12) ISO9001:2008 quality management system and ISO14001 environment management system
13) Services: OEM,ODM, customized fabrication.
3. The applications of our castings in Axle Box Body :
engine parts, transmission system parts, braking system parts and linking structure parts, that in materials like cast iron, cast steel or forged steel. We have been cooperating with customers producing train, truck, tractor, trailer, excavator, fork lifters all over the world.
4. We have acquired ISO9001 and ISO14001 certifications for years, and also accredited by ABS,GL,BV,DNV international classification societies specially in marine industry. If you need more specific certifications, we may negotiate about it.
5.Product Design and casting simulation
Successful parts are original from successful design. We own high level engineers on the product design .They are good at make drawing using the software of CAD.PROE,SOLIDWORKS for assuring production process well.
Our technical group have rich experience in casting process, so we can put forward reasonable suggestions to the product structure design on various performance, process parameters to solve the customer's requirement, set up the 3D model, get the results from pouring simulation analysis. Then modify and optimize the scheme to determine the correct casting process.
material | grey cast iron, ductile cast iron, steel, stainless steel, brass, copper, bronze, aluminum, zinc etc |
| process | sand casting, precision casting ,die casting |
| Surface finishment | polishing, sand blasting, heat treatment, painting, powder coating, anodizing, electroplating, mirror polishing. |
| certificate | ISO9001 |
| Service | OEM service available |
| Main export market | Eastern Europe
Western Europe
North America
Mid Africa
Central America
Asia
Australia |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Package: |
Pallet ,Manmade Wooden Case or as Your Requirement |
| Origine: |
Qingdao |
| Certificate: |
ISO9001 SGS |
| Brand: |
Chifine |
| Service: |
OEM and ODM |
| Material: |
Ductile Iron |
| Machining: |
CNC |
| Delivery Time: |
30 Days After Receiving The Payment |
| Type: |
Clay Wet Sand |
Qingdao Chifine Machinery Co., Ltd is One Famous Company in China Which Specialized in Various Metal Casting Products with Over 10 Years Experience Located in Qingdao China. It Covers a Comprehensive Range of Forging, Stamping, Sand Casting, Investment Casting, Die Casting and Machining and Was Widely Used in Agriculture Machinery, Motor Vehicle, Architecture, Railway and Engineering Chifine Has Accumulated Important and Valuable Experience in Design, Manufacturing and Customer Service Over These Years We Will Continue to Integrate Our Technical Superiority, Improve Process and Quality to Increase Market Share and Create More Brilliant Future.
Automative Casting Line:
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
• Product Size: 0-1000mm.
• Weight: 0.2kg-100kg
Resin Sand Casting
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel casting(ASTM/UNS; DIN; JIS; NF; BS; ISO)
• Product Size: 0-1500mm.
• Weight: 10kg-5000kg
Shell Mould Casting
Shell casting is one of resin sand casting process.
It is suitable for thin-wall casting parts, be free from porosity.
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel alloy; Aluminum alloy; Copper alloy.
• Product Size: 0-500mm.
• Weight: 50g-100kg.
• Wall thickness: 4-20mm
Lost Wax Casting
• Advanced wax-injection-machine and tool to ensure accurate wax-patten.
• Stable temperature and humidity environment make the wax-patten no deformation.
• Material:
Carbon steel; Stainless steel; Alloy steel.
Grey iron(GG20-GG35).
Ductile iron(GGG40-GGG60);
Malleable cast-iron
(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Aluminum alloy; Copper alloy.
• Casting size: 0-500mm.
• Casting weight: 50g-100kg
Stamping and Forging Line
• Stamping and forging equipment: 16T-300T press machine
• Automatic transport forging line
• Material: Carbon steel; Stainless steel; Alloy steel.
Aluminum alloy; Copper alloy.
Machining Shop
Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.
• Horizontal and Vertical Machining Center
• CNC lathe and normal lathe
• CNC drilling and milling Center
• Other assistant equipment
