R6 Continuous Casting Machine
Description:
Continuous casting is a energy-saving technique to casting the molten steel to a section shape or a certain size billet continuously and continuous casting machine is the equipment to complete this process.
Technical Parameter:
| Strand quantity | 1-4 |
| Radius | R3-14M |
| Casting section | Rectangular, square... |
| Annual output | 100000-180000ton/strand |
Components:
- Ladle Turret
- Tundish
- Console frame of revolving operation box
- Tundish car
- Mould
- Recooling sprayer device
- Vibration device
- Dummy bar
- The storage device of dummy bar
- Cooling bed
- Water system
- Electronic control
- Flying shear

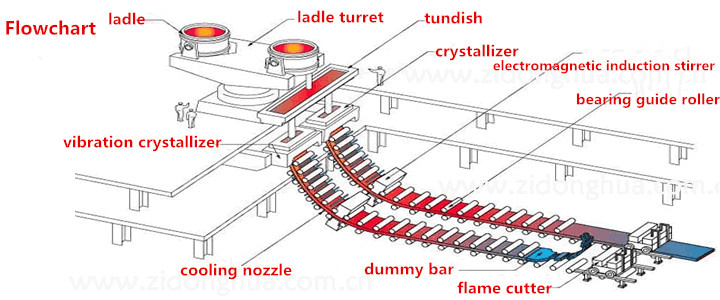

Working Process:
Mechanical part:
1) Ladle turret/ladle moving car/ladle fixed support (determined by customers)
2) Tundish
3) Tundish car
4) Mould
5) Mould vibration device
6) Vibration drive device
7) Protecting cover for vibration device
8) Secondary coolings spraying frame
9) Secondary coolings spraying pipe
10) Spraying nozzle for secondary cooling water
11) Support roller device for secondary and thirdly cooling
12) Withdrawal straightening machine
13) Transmission device for withdrawal straightening machine
14) Universal joint
15) Rigid dummy bar
16) Dummy bar storage device
17) Guide roller for dummy bar storage device
18) Billet delivery roller table
19) Hydraulic billet pusher
20) Platform for billet collection
21) Flame cutting machine/hydraulic shear (determined by customers)
22) Electrics control system
23) Control system for mould vibration
24) Control system for withdrawal straightening machine
25) Effective control system for dummy bar
28) Control system for billet delivery roller table
29) Control system for billet out
30) Control system for central hydraulic station
31) Steel structure
32) Casting platform
33) Platform for dummy bar storage
Auxiliary system
34) Hydraulic system
35) Discharging device for secondary coolings steam
36) Control system for secondary cooling water
37) Suspended operation box for withdrawal straightening part
38) Special configuration can be provided in accordance with customers requirements
We would like to give you proposal and offer after getting more details about your project and sincerely welcome you to visit our plant.
