| Top hammer bits with R35 Thread |
| Part number | Diameter | Buttons | Buttons | Flushing gauge | Flushing front | Body | Front |
| gauge | front |
| 35R48 | 48mm | 6x10mm | 3x9mm | 2 | 3 | Normal | Dropcenter |

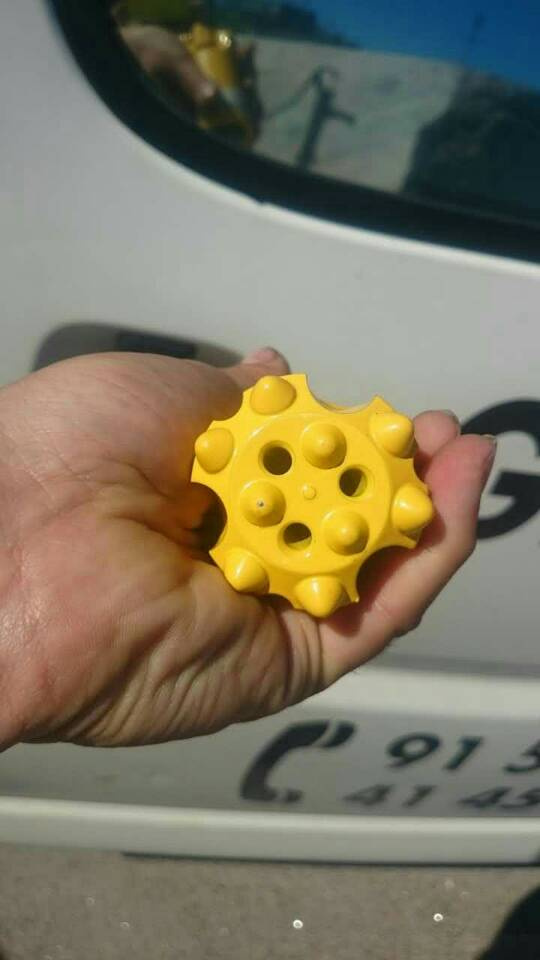

| 35R51 | 51mm | 6x10mm | 3x9mm | 0 | 3 | Normal | Dropcenter |
| 35R51 | 51mm | 6x10mm | 3x9mm | 0 | 3 | Retrack | Dropcenter |
| Top hammer bits with T45 thread |
| Part number | Diameter | Buttons | Buttons | Flushing gauge | Flushing front | Body | Front |
| gauge | front |
| 45T66 | 66mm | 8x10mm | 4x10mm
1 x 8mm | 0 | 4 | Retrack | Dropcenter |
|
| 45T70 | 70mm | 8x10mm | 5x10mm | 0 | 4 | Retrack | Dropcenter |
| 45T76 | 76mm | 8x12mm | 5x11mm | 0 | 4 | Normal | Dropcenter |
| 45T76 | 76mm | 8x12mm | 5x11mm | 0 | 4 | Retrack | Dropcenter |
| 45T76 L | 76mm | 8x12mm | 5x11mm | 0 | 4 | Guidebit | Dropcenter |
| Retrack |
| 45T89 | 89mm | 8x12mm | 6x11mm | 1 | 4 | Normal | Dropcenter |
| 45T89 | 89mm | 8x12mm | 6x11mm | 1 | 4 | Retrack | Dropcenter |
Thread Button Bits: High quality and several thread with various carbide tips like YK05 are available. All products can be developed upon customers' request.
Prodrill supply all kind of button bits with Rope thread R22, R25, R28, R32, R35, R38 and T thread, T38, T45, T51, ST58, ST68, T60 etc. for world famous brand drill rig.
Main button bits is:
R32-43MM, R32-45MM, R32-51, R32-64, R32-76;
T38-64, T38-76MM, T38-89, T38-102MM;
T45-76MM, T45-89MM, T45-102MM;
T51-89MM, T51-102MM, T51-127MM etc.
all face design, flat face, drop-center face, normal body and retrac body.
Product features:
Premium designs and steel and premium tungsten carbide insert grade T6 supplied by Boart Long year,
Offers industry-leading strength and penetration rates for more productivity,Excellent straightness and hole clean quality,Get max.drilling performance for rock drills with long life to save
Advantages:
Compared with the oversea brands, our advantages are bellowing:
A. Our products can match over 95% against the original products
B. Price are competitive against the famous brands and best quality against the small factory
About Us:
1. Our factory has been specialized in manufacturing drilling tools and spare parts for over 10 years.
2. We have advanced technology and equipment.
3. Our technician has more than 13 year's professional working experience.
4. Rock drilling tools are exported throughout the world. Main market: Norway, Turkey, USA, Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.
| Product Name: | Thread Button bits |
| Description: | Thread Button bit s
Button bit Made with high quality of best quality alloy steel bar and tungsten carbide, through heat treatment like Atlas. |
| Material: | Alloy steel bar and tungsten carbide bit |
| MOQ: | No MOQ required for testing and trial order |
| Body Type | Normal type and retract type |
| Thread type | R22,R25,R28,R32,R38,T38,T45,T51,ST58,ST68,GT60 |
| Diameter | 32mm-152mm |
| Button bit shape | Spherical and Ballistic |
| Face shape | Flat shape and Drop- C enter shape
|
Xiamen PRO Drill Equipment Co., Ltd is a specialized company of Rock Tools, which is experienced in developing and manufacturing Top hammer and DTH rock drilling equipments. The main products include high, medium and low air pressure DTH hammers and bits, Symmetric and eccentric overburden advanced casing drilling tools, and Threaded button bits, Drill rods and Couplings, also
Air grinder for button bit, chisel bit, Diamond grinding cup for cemented carbide
Reconditions and sharpener.
PRO Drill Rock Tools can be perfectly matched with the world famous brand such as Atlas Copco, Sandvik, Ingersoll-Rand and other well-known manufacturers' Drill rigs and they are widely applied to varies of areas including blast holes, earthwork projects, mineral exploration, water-well, construction, geo-thermal exploration.
PRO Drill plants has introduced the most advanced manufacturing equipments and technology in the world, such as Electro-hydraulic forging hammers for forging process, Germany atmosphere-controllable sealed quench furnace for heat treatment, Super CNC machines and Processing Centre for accurate finishing and experienced staff in metal machining all contribute to the high performance rock tools.
In response to the demand from dimensional stone quarry, we also offer all kinds of splitting, pushing and grinding tools like Expansive Mortar, Soundless Cracking Agent Shims and Wedges, Hydraulic Rock Splitter, Cyliner Type Rock splitter, Hydro bag, Air Pushing Bag and Cemented Grinding Stone are available as integral services working for the worldwide quarry owners.
Our believe that innovative think drives the delivery of quality rock tools to customers, . Prodrill rock drilling tools are renowned for their great reliability, excellent and even quality and long services life with an expertise direct to any corner of the world.
We are committed for groundbreaking solution of drilling and Splitting & cutting for your unique operation in quarrying, mining and construction project. Looking forward to hearing from your enquiry.
