Quick Release Pto Shaft with Clutch
| Price: |
US $ 80/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
1. IntroductionSize 1-3 PTO Shaft Used on small timber winches and centrifugal fertilizer spreaders. Rated for 16 hp at 540 rpm; 25 hp at 1000 rpm.
Size 4-5 PTO Shaft Used on medium tractor winches, small wood chippers, small rotor tillers and some hay rakes. Rated for 35 hp at 540 rpm; 55 hp at 1000 rpm.
Size 6 PTO Shaft Used on large logging winches, medium wood chippers, mowers, snow blowers, and rotor tillers. Rated for 62 hp at 540 rpm; 98 hp at 1000 rpm.
Size 7-SLC PTO Shaft 75 - 115 hp
Size 8 PTO Shaft Used on forestry mowers and large snow blowers. Rated for 91 hp at 540 rpm; 145 hp at 1000 rpm.

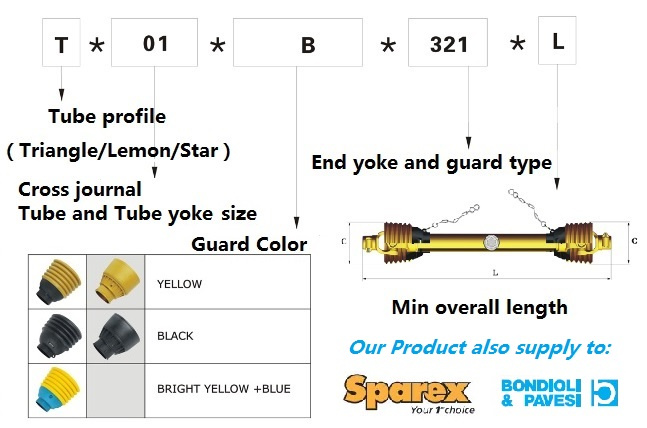

2. Product Code

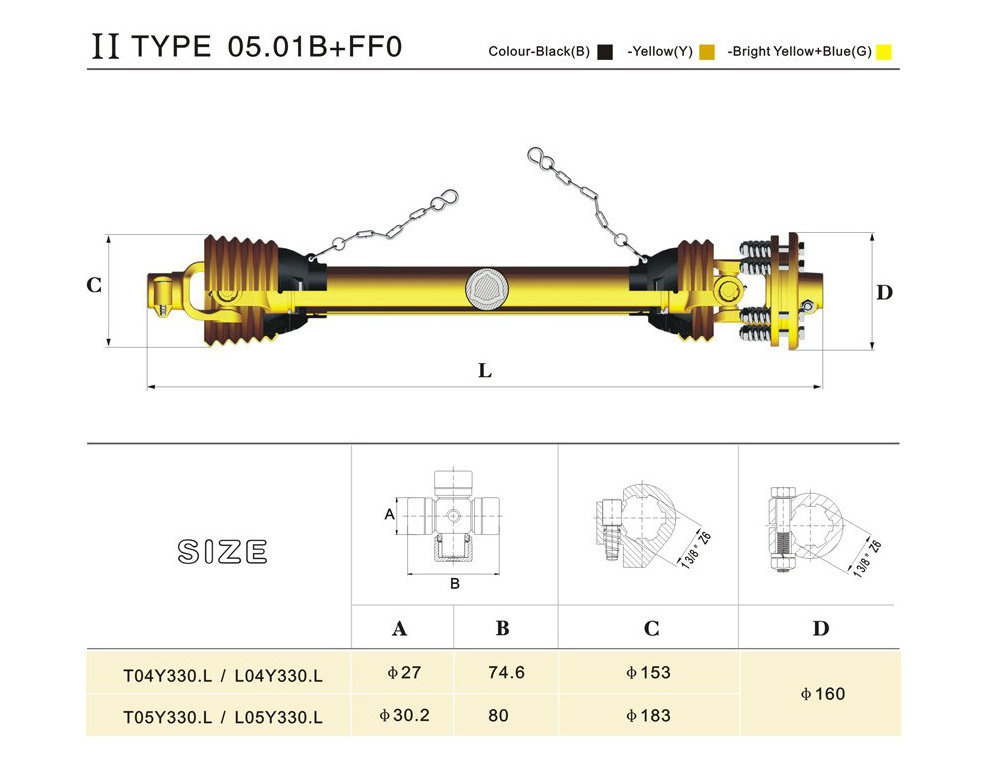

3. Product Information
| Series | Length (L) | Tractor | Implement | Part# | Typical Use | |
| 4 | 33" | 1 3/8" 6 spline | 1 3/8" 6 sp FF1 CL | CS42516 | Rotary Tiller |
|
| 4 | 45" | 1 3/8" 6 spline | 1 3/8" 6 sp FF1 CL | CS43516 | Rotary Tiller |
|
| 5 | 45" | 1 3/8" 6 spline | 1 3/8" 21 sp FF1 CL | CS54816 | 5'-7' Rotary Mower |
|
| 5 | 58" | 1 3/8" 6 spline | 1 3/8" RB w/FF1 CL | CS53516RB | 5'-7' Rotary Mower |
|
| 5 | 45" | 1 3/8" 6 spline | 1 3/8" 6 sp FF1 CL | CS53516 | 5'-7' Rotary Mower |
|
| 6 | 54" | 1 3/8" 6 spline | 1 3/8" 6 sp FF2 CL | CS64416 | 7'-8' Rotary Mower |
|
| 6 | 58" | 1 3/8" 6 spline | 1 3/4" 20 sp FF2 CL | CS64816 | 7'-8' Rotary Mower |
4. Application GuideThe following chart gives you the industry standard for PTO driveline horsepower ratings. Please keep in mind these are rated horsepower at the PTO, not engine horsepower. Many times the difference between engine horsepower and PTO horsepower can vary as much as 10%. These values give the maximum recommended horsepower that can be transferred through the driveline from the tractor to the implement.| Series | Rating @ 540rpm | Rating @ 1000rpm |
| 1 | 16 | 24 |
| 2 | 21 | 32 |
| 3 | 30 | 47 |
| 4 | 35 | 54 |
| 5 | 47 | 72 |
| 6 | 62 | 98 |
| 7 | 74 | 114 |
| 8 | 91 | 145 |
| 9 | 141 | 225 |
If you are not sure how far you can safely extend a driveline, the following chart give the recommended maximum extension available on each series of shaft with a minimum collapsed length listed. In most cases, it is recommended that the driveline does not extend 1/2 of its' collapsed length. This means the driveline tubes should overlap at least 1/2 for safe operation at all speeds.
| Minimum Collapsed Length (L) |
| 28" | 31" | 35" | 39" | 43" | 47" | 51" | 55" | 59" |
| Series | Maximum Extended Length (L) |
| 1 | 35" | 41" | 47" | 53" | 59" | 64" | 71" | 77" | 83" |
| 2 | 35" | 41" | 47" | 53" | 59" | 64" | 71" | 77" | 83" |
| 3 | 35" | 41" | 47" | 53" | 59" | 64" | 71" | 77" | 83" |
| 4 | 35" | 41" | 47" | 53" | 59" | 64" | 71" | 77" | 83" |
| 5 | 34" | 40" | 46" | 52" | 58" | 63" | 70" | 76" | 82" |
| 6 | 34" | 40" | 46" | 52" | 58" | 63" | 70" | 76" | 82" |
| 7 | 34" | 40" | 46" | 52" | 58" | 63" | 70" | 76" | 82" |
| 8 | 34" | 40" | 46" | 52" | 58" | 63" | 70" | 76" | 82" |
| 9 | 33" | 39" | 45" | 51" | 57" | 62" | 69" | 75" | 81" |
| Prod Model: |
FF0 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tractor Output Rpm: |
540rpm/1000rpm |
| Tube Profile: |
Triangle/Lemon |
| Color: |
Black/Red/Yellow |
| Size: |
1series-8series |
STIC TRADING CORP., Ltd (hereafter referred to as STIC) is a subsidiary branch of JIANGSU SAINTY MACHINERY CORPORATION Ltd., with its team processing 20 years of reputable Importing and Exporting experience.
STIC's prime supplying area of focus includes, but is not limited to the following:
1. AGRICULTURAL PRODUCTS: STIC prides itself in covering the range includes tractors, implements, accessories and such as Power Take-Off Shafts (PTOs) as well as Ground Engaging Equipment (GEE).
2. AUTOMOTIVE SPARES AND ACCESSORIES): STIC has sourced deeply and widely and is now in a position to supply high quality Automotive Suspension and Steering components together with many other spares in this sector.
3. POWER TRANSMISSION COMPONENTS: STIC has established itself as a respected supplier of world class quality components in this very competitive and highly specialized sector of the industry. This product range represents major leading brands and includes bearings (full range); Chains ( including agricultural, mining and sugar), sprockets; Pulleys; Bushes, couplings; Belting; Gear and rack assemblies; Rotary oil seals; Electric and geared motors ( full range ); Forgings and castings of every description.
4. HYDRAULIC AND PNEUMATIC: STIC can supply prides the full range of fittings and hoses associated with this industry.
5. TOOLS: STIC is able to supply special and general tools for ALL applications in both metric and Imperial sizes.
6. FASTENER: STIC's vast experience in the field supplying full range of bolts and nuts of DIN, ANSI, which can satisfy ANY need that a client may have.
The Organization prides itself in the fact that it has developed a reputation which comes from "Providing the BEST Product linked to the BEST Service" backed-up by a highly trained and competent technical team who ensure the Highest Quality Control and Overall Project Solution Support wherever needed.
