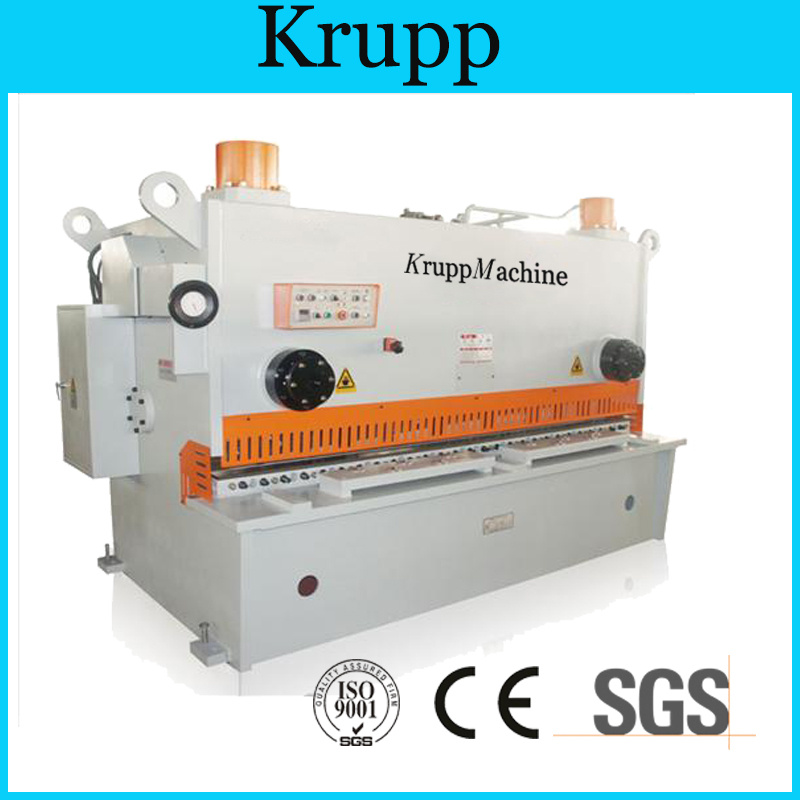

1.The entire machine is in fully steel welded structure,with stress eliminated by vibration aging technology,typical of excellent rigidity and stability.
2.Advanced hydraulic integrated valve block is employed,and the pipeline connection is minimized in a
compact structure,to enhance the system reliability and maintainability.
3.Oil cylinder in series ensure the shearing angle not to change during the shearing process of the
machine tool.
4.Accumulator return is stable and fast.
5.Blade gap is adjusted with hand wheel,in an accurate,rapid,and easy way.
6.The shearing angle is adjustable,to minimize the distortion of sheet bar.
7.Electric rear stopper and position display can be easily and accurately operated.
8.Rolling material support ball is set,to minimize fish tail with sheet bar and to reduce frictional resistance.
Model | Cutting thickness (mm) | Cutting width (mm) | Travel times (min-1) | Back-gauge distance (mm) | Cutting angle (°) | Throat Depth (mm) | Motor power (Kw) | Dimension (L × W ×H) (mm) |
6×2500 | 6 | 2500 | 14-28 | 600 | 0.5-1.5 | 80 | 7.5 | 3120×1450×1990 |
6×3200 | 6 | 3200 | 12-25 | 600 | 0.5-1.5 | 80 | 7.5 | 3840×1550×2040 |
6×4000 | 6 | 4000 | 10-22 | 600 | 0.5-1.5 | 80 | 7.5 | 4660×1650×2120 |
6×5000 | 6 | 5000 | 8-19 | 600 | 0.5-1.5 | 80 | 11 | 5530×2075×2520 |
6×6000 | 6 | 6000 | 6-16 | 600 | 0.5-1.5 | 80 | 11 | 6530×2075×2210 |
6×7000 | 6 | 7000 | 5-13 | 600 | 0.5-1.5 | 80 | 15 | 7750×2260×2760 |
8×2500 | 8 | 2500 | 13-26 | 600 | 0.5-1.5 | 80 | 11 | 3100×1550×2070 |
8×3200 | 8 | 3200 | 11-24 | 600 | 0.5-1.5 | 80 | 11 | 3800×1620×2160 |
12×2500 | 12 | 2500 | 10-24 | 600 | 0.5-2 | 80 | 18.5 | 3080×1700×2310 |
12×3200 | 12 | 3200 | 9-22 | 600 | 0.5-2 | 80 | 18.5 | 3780×1750×2210 |
12×4000 | 12 | 4000 | 7-20 | 800 | 0.5-2 | 80 | 18.5 | 4580×1800×2420 |
16×2500 | 16 | 2500 | 9-18 | 800 | 0.5-2.5 | 80 | 22 | 3100×1700×2340 |
16×4000 | 16 | 4000 | 7-14 | 800 | 0.5-2.5 | 80 | 22 | 4620×1900×2560 |
20×2500 | 20 | 2500 | 8-17 | 800 | 0.5-3 | 80 | 37 | 3100×1820×2500 |
20×4000 | 20 | 4000 | 6-14 | 800 | 0.5-3 | 80 | 37 | 4600×1940×2770 |
25×3200 | 25 | 3200 | 6-12 | 800 | 0.5-3.5 | 80 | 45 | 3850×2340×2820 |
The above data is just for you reference,if there is any disaccord please refer to actual data
