Application:
HQ Hanger Chain Shot Blast Machine provides two work positions and adopts fixed rotating point blasting method for removing the unwanted sand, oxidized layer and other deposits from the part surface quickly, thus making the surface bright and clean. The shot blasting equipment is mainly used for the vehicle parts, such as the bolster, side frame, coupler and coupler yoke, as well as for cleaning the castings and workpieces with the similar size.
Blasting chamber:
Our hanger chain shot blast machine is manufactured to satisfy our customers with long life and high operating efficiency. The blast chamber is made using steel plate and structural steel framing through welding process, which offers high rigidity and strength, resulting in extended service life. To prevent shots from flying out of the chamber, much attention is given to the sealing structure of the chamber and door when we design the shot blast machine.
Blasting wheels:
In addition, the location of blast wheels is based on the computer three-dimensional dynamic simulation result, which helps ensure all sides of workpieces can be thoroughly and quickly cleaned, thereby increasing efficiency.
Advantage:
Q38 /Q48/Q58 continuous type, stepping type, stack type shot blasting cleaning machine is suitable for large quantities of small and medium-sized workpiece blasting process.
The workpieces can go with chain hoist continuously or by step or adopting the more advanced accumulation conveying type which make the workpiece keep still in the discharging and shot blasting area , to realize the fixed-point loading and blasting.
Single hook hoisting weight can be 50-2000kg with high productivity, reliable operation.

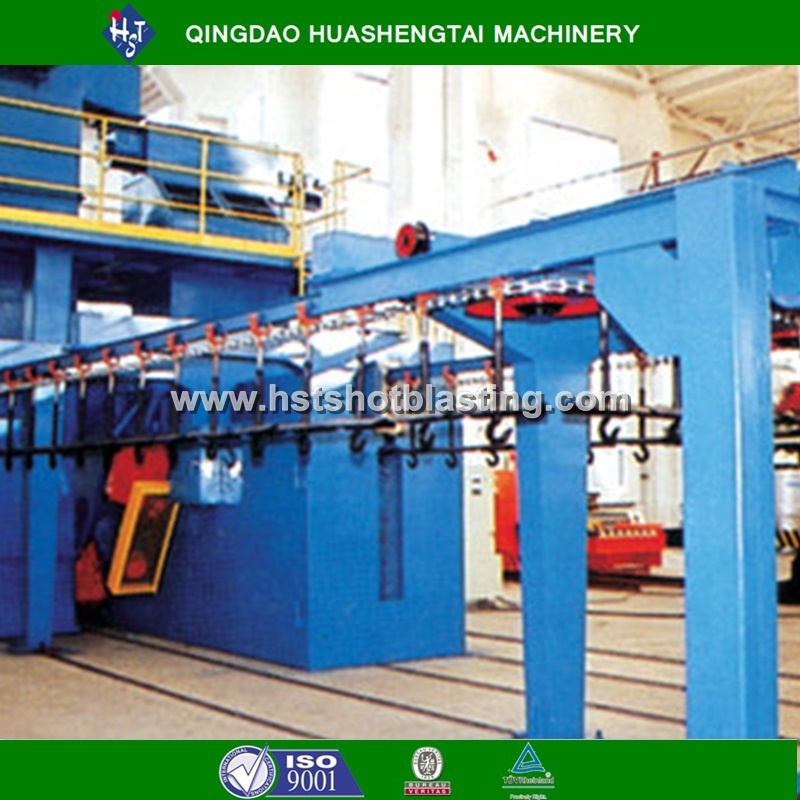

Q48 series stepping moving hanging chain shot blaster for sale
HQ38 series hanger chain shot blasting machine technical parameter:
Model |
Productivity
(hook/h) |
Speed
(m/min) |
Installed
Power
(kw) |
Single hook
carrying
capacity (kg) |
Abrasive flow rate
(kg/min) |
Ventilation Capacity
(/h)_ |
Cleaning dimensions
(mm) |
Outlook Dimensions
(mm) |
HQ383 |
50,65,38,49 |
0.5,0.65 |
75.3 |
250 |
4*250 |
18000 |
Φ500x1200
Φ700x1200 |
11764*5525*8524 |
HQ384 |
70,80 |
0.8,0.93 |
122.6 |
400 |
6*250 |
26500 |
Φ700x1500 |
15308*14706*9542 |
HQ385 |
75 |
0.65 |
106.75 |
500 |
5*250 |
23700 |
Φ700x1500 |
11783*10063*7500 |
HQ48,HQ58 series hanger shot blasting machine technical parameter :
Type |
Model |
Workpiece
weight (kg) |
Workpiece
Dimensions
(mm) |
Abrasive flow
rate (kg/min) |
Productivity
(hook/h) |
Speed
(m/min) |
Ventilation
Capacity
(/h) |
Installed
Power
(kw) |
Outlook
Dimensions(mm) |
Chain hoist stepping
type shot blasting
machine |
HQ483 |
300 |
Φ1000x1400
|
2*250 |
30-50 |
2.44 |
6000 |
38.75 |
8450*5350*5003 |
HQ485 |
500 |
Φ1200x1700
|
3*250 |
30-50 |
7.34 |
10000 |
58.43 |
12235*5410*9411 |
HQ4810 |
800 |
Φ700x2400
|
6*250 |
30-50 |
2.44 |
25000 |
85 |
4500*5350*5003 |
Chain hoist
continuous
type shot blasting
machine |
HQ583 |
300 |
Φ1000x1500
|
4*250 |
30-60 |
Frequency
control |
18000 |
127.25 |
18000*5960*6440 |
HQ5810 |
1000 |
Φ750x2400
|
6*250 |
50 |
Frequency
control |
25000 |
160 |
17700*9615*10000
|
