Manually loading Series

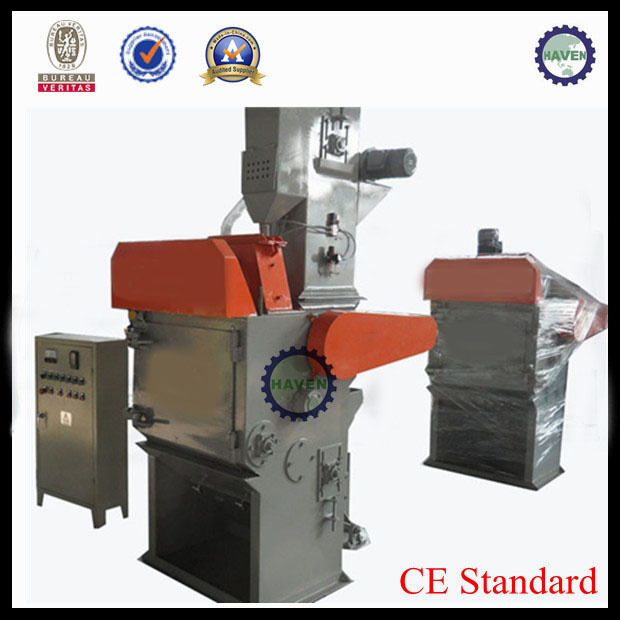

This kind of tracked tumblast shot-blast machine is widely used to clean all kinds of machine parts (for example: Large quantities of small parts in foundry, forging mill, pressing workshop, quenching workshop, structural parts workshop, firmware and chain mill).
The tracked tumblast shot-blast machine is with simple operation. Put the work-pieces into tracked rubber roller and close the shot-blast chamber door. Then set up shot-blast time and push the RUN button. Now, the shot-blast cleaning is beginning. The track belt circumrotates in the forward direction. The work-pieces can be equably and completely cleaned with equal emission of high-speed shots from the impeller of shot-blaster.
This machine are adopted the high-effective shot-blast implements, PLC controller or normal button controller, and bag dust filter. It is the most excellent equipment for cleaning, polishing, and intensify.
Electrical:
Primary power requirements: 380 volts, 50Hz, 3phase
Control panel equipped with push buttons and pilot lights, emergency stop button, and mainline disconnect.
Safety Features:
Timed operation between the abrasive control valve and the door
Limit switch on the loading and rear access door to prohibit the wheel from starting when the door is opened.
Safety Signs
Options:
Air cylinder operated shot valve
Frequency Invertor available
Dust collector can be plated bag with vibrating mechanism or hand shaking or pulse valve
Dust collector can be cartridge filter with pulse valve
|
eries |
model |
Q324 |
|
1 |
productivity |
T/h |
0.4-1.0 |
|
2 |
First shot capacibility |
kg |
80 |
|
3 |
Max.component weight |
kg |
8 |
|
4 |
End plate diameter |
mm |
Φ400 |
|
5 |
Max. batch volume |
m |
0.08 |
|
6 |
Shot blasting capacibility |
kg/min |
100 |
|
7 |
Air required for dust colector |
m 3 /h |
2000 |
|
8 |
Power |
kw |
6.2 |
|
9 |
Size of the machine |
mm |
1400×1350×2700 |
