Specifications
Air compressor machine of Track shot blasting Q3210 is suitable for many species, large and medium volume workpiece production.

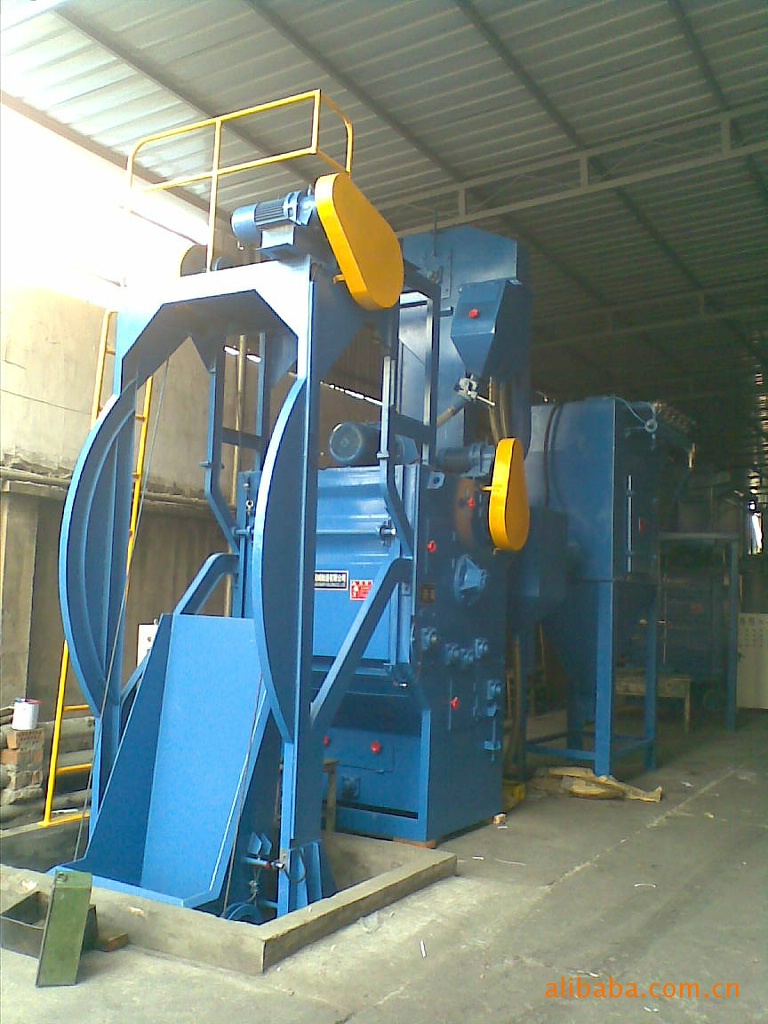

Air compressor machine of Track shot blasting Q3210
is mainly be made with the blast wheel, blast room, separator systerm, dust institutions, feeding mechanism,
electrical control system etc components.Blasting chamber, blast leaves , inner wall are made of high chromium cast iron, long service life.
This machine is suitable for many species, large and medium volume production of the workpiece surface rust or blast enhancement.
Clean-up work pieces must be casting and heat parts whichnot afraid collisiont.
|
Type |
Q326 |
Q3210 |
Qr3210 |
|
Productivity(kg/h) |
600-1200 |
2500-3500 |
3000-3500 |
|
Feeding amount(kg) |
200 |
600 |
600 |
Maximum weight of
single piece |
15 |
30 |
30 |
Diameter of end
disk(mm) |
650 |
1000 |
1000 |
|
Effective volume(kg) |
0.33 |
1.05 |
1.05 |
|
Abrasive flow(kg/min) |
200 |
250 |
250 |
Ventilation
capacity(m 3 /h) |
2500 |
3500 |
4000 |
Power connected
load(kw) |
13.47 |
25.05 |
34.65 |
Overall dimension
(L×W×H)(m) |
3200×1520
×3715 |
4290×1900
×4500 |
5850×1950
×4600
|
