| Price: | US $ 6500/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Money Gram,Western Union |

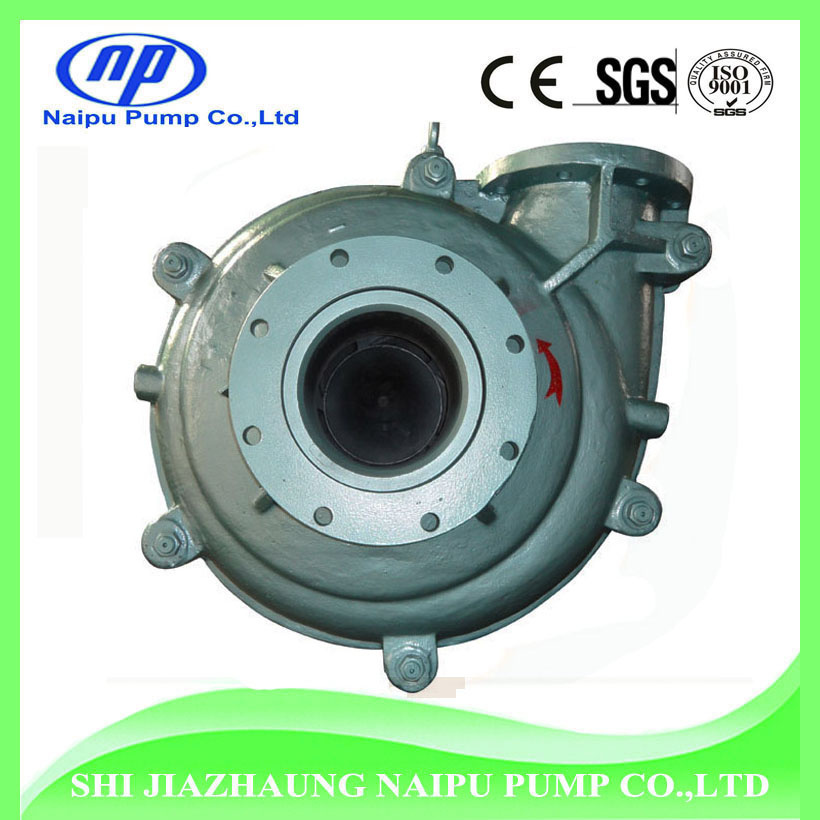

Medium Duty Slurry Pump
Name: NP-M Medium Duty Slurry Pump
Pump Type: centrifugal
Drvie Type: ZVz/CRz/CV/DC
Power: motor/diesel
Discharge Size: 8 inch
Capacity: 540-1228m³/h
Head: 15-61m
Seal: Centrifugal seal , gland packing , and mechanical seal
Wet end parts : High chrome Alloy A05
Feature:
Naipu® NP-M series centrifugal slurry pumps and spare parts could fully interchange with world famous brand.These pumps are of heavy-duty construction, designed for continuous pumping of highly abrasive and corrosive slurries. They feature a wide choice of replaceable abrasion resistant metal casting liners and Impellers, which are all interchangeable within a common casting assembly.
Typical Applications---
Dense media transfer
Dense media make-up
Bottom boiler and fly ash
Ferrosilicon make up
Thickener underflow
Dewatering

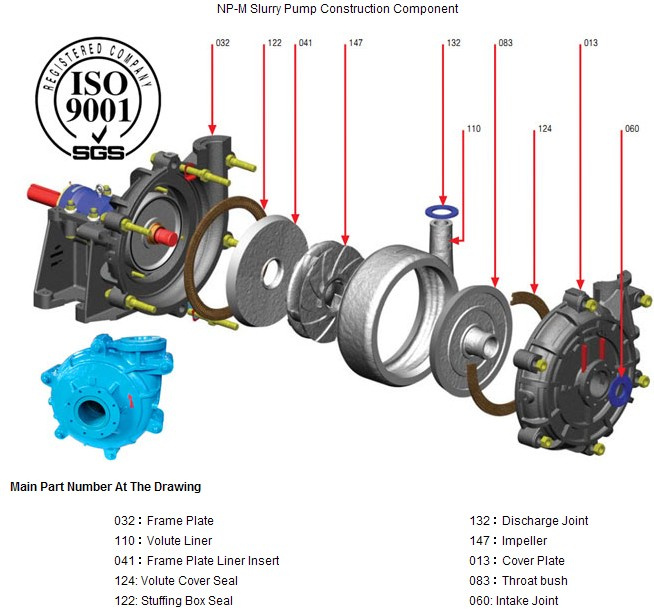

Medium Duty Slurry Pump Structure
Materials of Construction
| LINERS | IMPELLERS | CASING | BASE | EXPELLER | EXPELLER RING | SHAFT SLEEVE | SEALS |
Standard | Chrome Alloy | Chrome Alloy | SG Iron | SG Iron | Chrome Alloy | Chrome Alloy | SG Iron | Rubb |

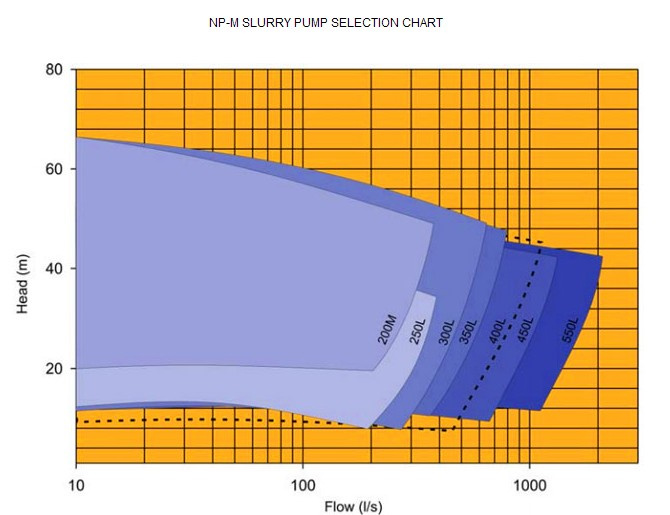

Selection Chart For Medium Duty Slurry Pump
Performance for Medium Duty Slurry Pump
Type | Allowable Mating Max. Power(Kw) | Clear Water Performance | Impeller | |||||
Capacity/Q m³/hr | Head/m | Speed/rpm | Max Efficiency/% | NPSH/m | Nos of Vane | Impeller Diameter/mm | ||
10X8E-NP-M | 120 | 540-1228 | 15-61 | 600-1100 | 70 | 4.5-8 | 4 | 549 |
10X8R-NP-M | 300 | |||||||

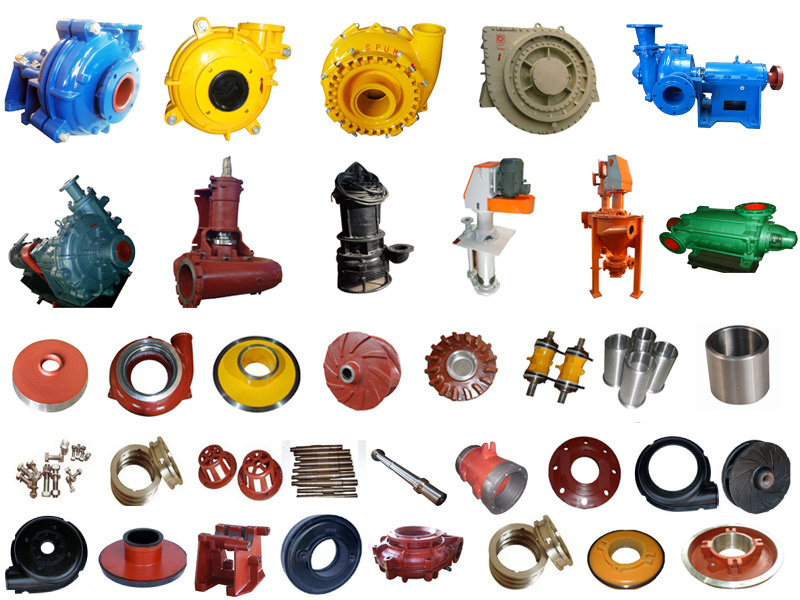

NaiPu Main Pump
For More Information, please Do not hesitate to contact with us.
Contacts
Contact person:Kitty Liu
WhatappMobile:86-13032609126
| Prod Model: | (10/8 R/E -M) |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: | Submersible Slurry Pump |
| Power: | Motor/Diesel |
| Pump Type: | Centrifugal Slurry Pump |
| Color: | Blue, Yellow, Green or as Your Request |
| Capacity: | 540-1228m3/H |
| Head: | 15-61m |
| Application: | Dense Media Transfer, Dewatering, Thickener Underf |
| Discharge Size: | 8 Inch |
| Impeller Number: | Single-Stage Pump |
| Working Pressure: | Middle Pressure Pump |
| Influent Type Of Impeller: | Single Suction Pump |
| Position Of Pump Shaft: | Horizontal Pump |
