Customized Steel Cold Forging Parts With CNC Machining
Company introduction:
1. Our company has advanced technological equipment, all kinds of quality checking equipments.
2. Now a series of strict quality control process and manufacture process have been established.
3. Our quality management system is in conformance with ISO9001: 2000.
4. We have accumulated plenty experience and our company has been expanding by leaps and bounds.
5. We have advanced equipments and the largest production capacities.
Our Capabilities:
1. Over 20 years' casting experience
2. Various kinds of machinery equipments and advanced inspection equipments.
3. All of the parts can be inspected with CMM before shipment.
7. We have advanced engineers 12 person.
8. We had approved through ISO9001: 2000 quality system.
9. We can supply the best products and good services for all of Foreign Clients.

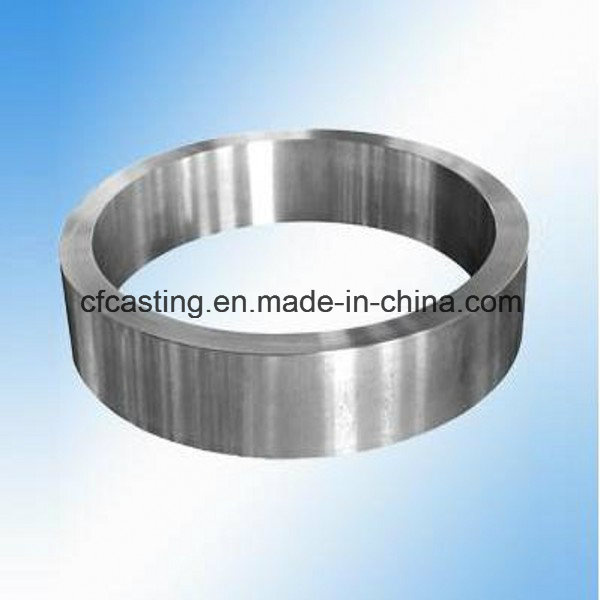

Forging part, forged part Process: Open die forging, close die forging, free forging, mould forging, hot forging, cold forging, etc Material: Alloy steel, carbon steel, stainless steel, aluminum forging, such as alloy steel 4140. We also could custom the forging product by using your specific material. Forged part name: Forging shaft, forged ring, forging block or flange, etc. Most of our forge parts are produced according to yours forging drawings. Heat treatment: Quenching, Normalizing, Tempering, etc. With the help of heat treatment process, It is OK for us to control the mechanical properties very well, such as hardness, tensile strength, etc Quality control: UT( ultrasonic test), MT, etc. Weight controlled: 0.1-30000KG. For small parts, we will use the mould forging process; For bigger parts, it is OK to use open die forging.
ODM& OEM SERVICES |
Service |
Drawings or samples processing/OEM/ODM service provided |
Produce Process |
Drawings→ mould making → pre-forging →rough machining
or finish machining →surface treatment →product checking
→ packing →delive ry |
Forging Material |
Carbon Steel, Alloy steel,Stainless steel |
Standard |
ISO, GB, ASTM, DIN, JIS |
Produce Equipment |
Friction Screw Press Series, CNC Lathe, Machining Center
(Vertical Spindles), CNC Milling Machine, Bench Drilling
Machine, Heat Treatment Equipments and so on. |
Surface treatment |
Heat treatment, Polishing, shot blasting,
Painting, Electro-plating, Chemical Plating, |
Inspection
Equipments |
Metallurgical analysis , Tensile strength tester , Hardness
tester, Altimeter, Scale Micrometer, pressure tester, etc. |
Delivery |
Sample s are sent by express
Large quantity products delivered to customer by sea
or according to your request |
Qingdao Chifine Machinery Co., Ltd is One Famous Company in China Which Specialized in Various Metal Casting Products with Over 10 Years Experience Located in Qingdao China. It Covers a Comprehensive Range of Forging, Stamping, Sand Casting, Investment Casting, Die Casting and Machining and Was Widely Used in Agriculture Machinery, Motor Vehicle, Architecture, Railway and Engineering Chifine Has Accumulated Important and Valuable Experience in Design, Manufacturing and Customer Service Over These Years We Will Continue to Integrate Our Technical Superiority, Improve Process and Quality to Increase Market Share and Create More Brilliant Future.
Automative Casting Line:
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
• Product Size: 0-1000mm.
• Weight: 0.2kg-100kg
Resin Sand Casting
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel casting(ASTM/UNS; DIN; JIS; NF; BS; ISO)
• Product Size: 0-1500mm.
• Weight: 10kg-5000kg
Shell Mould Casting
Shell casting is one of resin sand casting process.
It is suitable for thin-wall casting parts, be free from porosity.
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel alloy; Aluminum alloy; Copper alloy.
• Product Size: 0-500mm.
• Weight: 50g-100kg.
• Wall thickness: 4-20mm
Lost Wax Casting
• Advanced wax-injection-machine and tool to ensure accurate wax-patten.
• Stable temperature and humidity environment make the wax-patten no deformation.
• Material:
Carbon steel; Stainless steel; Alloy steel.
Grey iron(GG20-GG35).
Ductile iron(GGG40-GGG60);
Malleable cast-iron
(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Aluminum alloy; Copper alloy.
• Casting size: 0-500mm.
• Casting weight: 50g-100kg
Stamping and Forging Line
• Stamping and forging equipment: 16T-300T press machine
• Automatic transport forging line
• Material: Carbon steel; Stainless steel; Alloy steel.
Aluminum alloy; Copper alloy.
Machining Shop
Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.
• Horizontal and Vertical Machining Center
• CNC lathe and normal lathe
• CNC drilling and milling Center
• Other assistant equipment
