Precision Casting/ Connector Terminal / Power USB Pin P Recision Casting

Precision Casting/ Connector Terminal / Power USB Pin P Recision Casting
Price: Negotiable/Piece
Trade Terms: FOB,CIF
Min Order: 100000/Piece
Pay Type: L/C,T/T,Western Union,Paypal
POWER USB PIN
Products Information

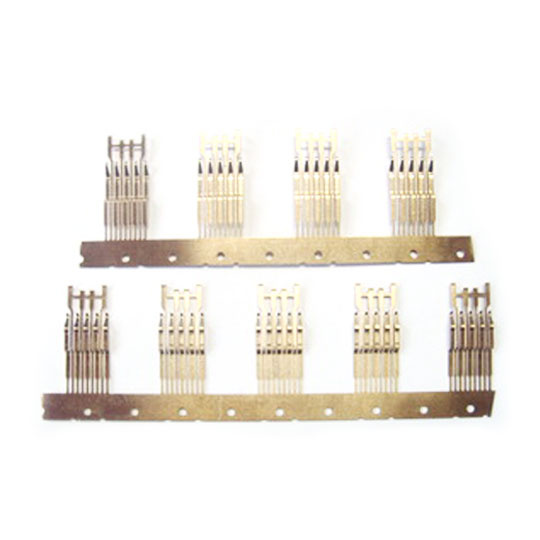

Micro USB 5pin USB3.0PIN 1 USB 3.0 PIN

Connector for I/O product
Product Name: MICRO USB 5PIN
Spacing: 0.5
Material & Thickness: C5191R-H T=0.1
CAV: 1PCS
Dimension: 1.695*16.5MM
Tolerance: Standard tolerance + 0.03MM Critical dimension tolerance 0.01
Stamping speed: 500SPM
Capacity: 5000K
Machine: High precision Longmen vibration force
    Description  of  Products:   Precision Casting/ Connector Terminal / Power USB Pin P recision Casting
  Product  material   Phospor copper, bronze, etc, according to buyer' s requirment.
Plating: Tin, Silver, Nickel, Gold, according to buyer.
   Precision    ≤ 0.01mm
   Roughness    1.6UM RA-6.3UM RA, or N7-N9
   PROCESS   Purcahsing  order→   Engineering  appraise  and  Request  for  change→   Layout  design→   New  product  meeting→   Die  design  and  Material  plan→   Incoming  material  check→   Die  processing→   Die  Assembly→   Die  trial→   Sample  check→   Sample  internal  approval→   Sample  submission→   Die  Buyoff
   FINISH   The  type  of  surface  treatment  depends  on  the  volume  or  according  to  customer'   s  requirement
  INSPECTION   5~10  Samples  with  full  dimension  report  send  to  customer  for  approval  before  delivery.
CD  record  with  construction/part  drawing  will  be  delivered  with  the  dies.
   PACKAGING   Wooden  case,   fumigation  treatment.
   LEADTIME   15~60  days  (depending  on  different  products)
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Process: Forming Process
Industry: Metal Stamping Parts
Established in 1982, Helioway Group is a professional Hardware company specialized in mould design, mould manufacturing of connectors and casing for computer, cell phone, consumer electronics, auto parts etc.As well as precision metal stampings production.
We set up a plant in Guangzhou in Nov.1999.
Helioway focuses on the R&D of high speed precise progressive die as well as stamping production since its establishment.
We have 86 die machines including BRUDERER.KYORI etc.
Process technology capability:
A:Zero loss of material use
B:The min.Space between connectors is 0.4mm
C:The pressing SPM can reach to 1000-1500
D:The precision parts tolerance can control in +/-0.01mm
E:The rate of hole diameter and thickness is 0.85:1
F:The stamping material thickness is 0.07---1.00mm

Company History
Mar, 2001
Helioway developed 2 x 16 Pin PCI connectors which helped our customer save about 40%'s cost and became a key supplier for world leading PC provider.
Jan.2003
We developed a lot of products used on DIMM 168, PCI, PCI-E, DDRII, DDR III for PC main board with low cost, high quality which enhanced customers' competitiveness.
May, 2003
We became a approved supplier for FCI.
Jan.2005
Helioway began to implement ISO-14001 quality control system and G/P system.
Helioway became an approved supplier for Molex, Tyco.
DEC, 2006
Helioway passed ISO-9001 & ISO-14001 quality system authentication.
Feb.2008
Helioway began to participate all mould processing.We can do wire cutting, buffing, surface miller, surface-grinding etc.Also, we can provide one-stop service including mould design, mould making, parts manufacturing and stamping.
Mar.2008
We developed the first HDMI insert molding with the cooperation of customer.
2009
We developed USD3.0, HDMI D TYPE
2010
We developed HDMI material saving mould and LED bracket products.
Helioway committed to the fast, correct and firm work method.We have dedicated to mould manufacturing technology and stamping production in 4C industry.By continuously deepen technology, we make great efforts to meet and exceed customer expectations.

Our clients include:
Singatron Enterprise Co.Ltd
Winning Enterprise Co., Ltd
Main Super Enterprise Co., Ltd
WIESON Enterprise Co., Ltd
Taisol Electronics Co., Ltd
Molex
Tyco
Fci
Sinbon
