Product description

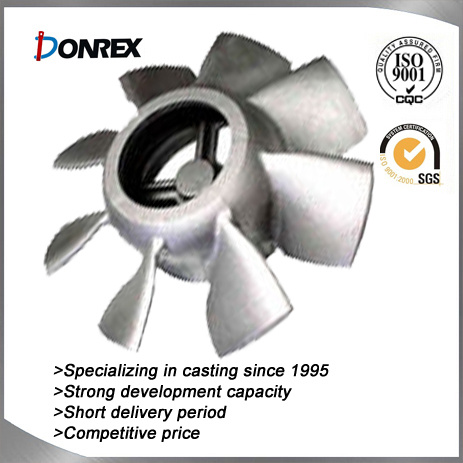

The thin blades and sharp edges of this turbin impeller casting demonstrate our ability to cast thin wall thickness of parts.
We produce many sizes of impellers and other parts such as turbine wheel, compressor wheel, nozzle ring, diffuser, turbine blade, seal ring carrier, bearing support, intake casing, guide vane, etc.
Machining capacity
We can make CNC machining parts, CNC milling and turning parts, CNC milling parts, CNC lathe turning parts, grinding parts, laser cutting parts
Accurate dimensions(±0.005mm)
Inspection tooling includes: Tool microscope, digimatic micrometer, inside micrometer, go-no go gauge, dial gauge, electronic digital display caliper, automatic height gauge, precision level 2 detector, precision block gauge, 00 levels of marble platform, ring gauge, CMM
Surface treatment:
A variety of operations can be performed during or after machining process
They include heat treatment, anodizing, electroplating, powder coating, painting, polishing and buffing, blacken, hardening and assembly services
Production capacity
Manufacture process | Annual productivity | Unit weight of parts |
Investment casting | 5000 tons | 0.005-117 Kg |
Sand casting | 50000 tons | 0.1-15000 Kg |
Materials that can be used in our investment casting process
Carbon Steel
Standard-Spec.No.& Grade | Chemical Composition≤ (%) | Mechanical Properties≥ | NOTE: (1) S,P≤0.04% (2) C,Mn% can also be agreed upon by manufacturer and purchaser. (3) Heat Treat: Normalize(N)+Temper(T) or Quench(Q)+T,selected by Foundry. |
GB China | JIS Japan | ASTM U.S.A. | C | Si | Mn | T.S. σb (N/mm2) | Y.S. σs (N/mm2) | EL δ% | R.A. ψ% |
ZG200-400 | SC420 | A27 60-30 | 0.2 | 0.5 | 0.8 | 400 | 200 | 25 | 40 |
ZG230-450 | SC450 | 65-35 | 0.3 | 0.9 | 450 | 230 | 22 | 32 |
ZG270-500 | SC480 | 70-40 | 0.4 | 500 | 270 | 18 | 25 |
ZG340-640 | SCC3B | A148 80-50 | 0.6 | 0.6 | 640 | 240 | 10 | 18 |
High Alloy Cast Steel
Standard-Spec.No | Chemical Composition% | Mechanical Properties≥ |
GB China | JIS Japan | ASTM(AISI) U.S.A. | C | Si | Mn | Cr | Ni | Others | T.S. σb (N/mm2) | Y.S. σs (N/mm2) | EL σ% |
ZG1Cr13 | SCSI | CA-15(410) | ≤0.15 | ≤1.50 | ≤1.00 | 11.5-14.0 | ≤1.00 | Mo≤0.05 | 620 | 450 | 16 |
ZG0Cr18Ni9 | SCS13 | CF8(304) | ≤0.08 | ≤2.00 | ≤1.50 | 18.0-21.0 | 8.0-11.0 |
| 440 | 185 | 30 |
ZG1Cr18Ni9 | SCS12 | CF20(302) | ≤0.20 | ≤2.00 | ≤1.50 | 18.0-21.0 | 8.0-11.0 |
| 480 | 205 | 28 |
ZG0Cr18Ni12Mo2Ti | SUS316 | CF-8M(316) | ≤0.08 | ≤1.50 | ≤1.50 | 18.0-21.0 | 9.0-12.0 | Mo 2.0-3.0 Ti 0.7 | 490 | 216 | 30 |
ZG0Cr17Ni4Cu4Nb | SUS630 | CB-7Cu | ≤0.07 | ≤1.00 | ≤1.00 | 15.5-17.0 | 3.0-5.0 | Cu 2.3-3.0 Nb 0.14-0.45 | 980 | 785 | 5 |
ZGMN13-3 | SCMnH2 | 17-4PH | 0.90-1.30 | 0.30-0.80 | 11.0-14.0 |
|
| S≤0.05, P≤0.08 | 686 |
| 35 |
ZG3Cr18Ni25Si2 | SCH19 | A128 B-1 | 0.20-0.50 | ≤2.00 | ≤2.00 | 19.0-23.0 | 23.0-27.0 | Mo≤0.50 | 435 | 230 | 8 |
ZG4Cr25Ni20Si2 | SCH22 | A297 HN | 0.35-0.45 | ≤1.75 | ≤1.50 | 23.0-27.0 | 19.0-22.0 |
| 450 | 240 | 10 |
Note:S,P≤0.04% except 13%Mn Steel(ZGM13-3) |
Copper-base Cast Alloy
Standard-Spec.No. | Chemical Composition% | Mechanical Properties≥ |
GB China | JIS Japan | ASTM U.S.A | Sn | Zn | Pb | Si | Cu | T.S.σb (N/mm2) | Y.S. σ% | EL HBW | Hardness |
ZCuSn5Pb5Zn5 | BC6 | C83600 | 4.0-6.0 | 4.0-6.0 | 4.0-6.0 |
| Balance | 200 | 90 | 13 | 60 |
ZCuSn10Zn2 | BC3 | C90500 | 9.0-11.0 | 1.0-3.0 |
|
| 240 | 120 | 12 | 70 |
ZCuZn16Si4 | SZBC3 | C87800 |
| Balance |
| 2.5-4.5 | 79.5-81.0 | 390 |
| 20 | 100 |
ZCuZn40Pb2 |
| C85700 |
| 0.5-2.5 |
| 58.0-63.0 | 220 | 120 | 15 | 80 |
