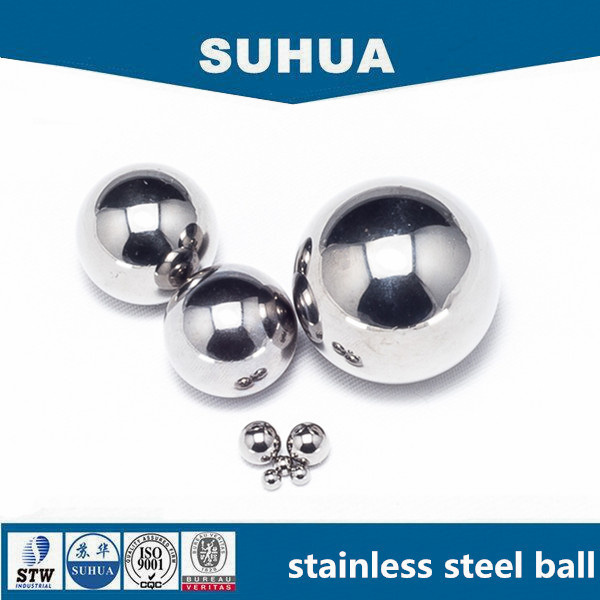

Precision Casting 440c Stainless Forging Steel Ball

precision casting 440c stainless forging steel ball


Brief Introduction of AISI440C Stainless Steel Ball

1. Offer maximum material strength and fair corrosion resistance.
2. Characteristic: resist alcohol, food environments, fresh water, many petroleum products, organic materials and steam.
3. Applications: bearings, valves, locking mechanisms, fasteners and quick-disconnect couplings.

Main Products

Item	Name	Material
1	Stainless Steel Ball	AISI304/304L/316/316L/420/420C/440C
2	Chrome Steel Ball	AISI 52100/ 100Cr6/ Gcr15/ SUJ2
3	Carbon Steel Ball	AISI1010/1015/1086
4	Brass/Copper Ball	H62/H65
5	Aluminum Ball	5050/7A03
6	Torlon Ball	4203/4301
7	Coated Ball	gold nickel zinc copper

Detailed Description of AISI440C Stainless Steel Ball

Stainless steel ball AISI  440C
1. Material		AISI 440C/ SUS 440C/ Wks 1.4125
2. Size Range		1mm-180mm
3. Grade		G10-1000
4. Hardness		HRC 57-60
5. Characteristic		(a)Maximum hardness with good coorosion resistance to fresh water. (b)Ferro-magnetic
6. Magnetic		Strong
7. Application		Valves,  special bearings, ball pen application with moderate aggressive atmosphere
8. Chemical composition
	C%	Si%	Mn%	Cr%	Mo%	P%	S%
min.	0.95	---	---	16.0	0.4	---	---
max.	1.2	1.00	1.00	18.0	0.8	0.04	0.015
9.Packing		Standard: 10kg or 20kg per carton, 1 ton per pallet or as customer required
10.Conditioning		dry or oiled
11.Delivery time		Stock within a short time or 35 days.
CHANGZHOU HUARI STEEL BALL CO., LTD.

Steel Ball Metric and Inch Size

Material	52100 chrome steel
	1010 1015 1045 1085 1086 carbon steel
	304 316/L 420C 440/C stainless steel
	AL.5052 aluminum
	H62/65 brass
	T2 copper
Metric Size (mm)	0.4, 0.5, 0.68, 0.7, 0.8, 1, 1.2, 1.3, 1.45, 1.5, 1.75, 2, 2.5, 3, 3.5, 4, 4.5, 5, 6, 6.5, 8, 8.5, 9, 10,  11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 23, 24, 25, 25.4, 28, 30, 35, 40, 45, 50.8, 60, 76.2,  101.6, 150, 180
Inch Size (inch)	1/32, 3/64, 1/16, 5/64, 3/32, 1/8, 9/64, 5/32, 11/64, 3/16, 13/64, 7/32, 15/64, 1/4, 17/64, 9/32, 5/16, 11/32, 3/8, 13/32, 7/16, 29/64, 15/32, 31/64, 1/2, 17/32, 9/16,  19/32, 5/8, 21/32, 11/16, 23/32, 3/4, 25/32, 13/16, 27/32, 7/8, 29/32, 15/16, 31/32, 1, 1-1/16, 1-1/32, 1-1/8, 1-3/16,1-1/4, 1-5/6, 1-3/8, 1-7/16, 1-1/2, 1-9/16, 1-5/8, 1-3/4, 1-7/8, 2, 2-1/4, 2-1/2, 2-3/4, 3, 3-1/4, 3-1/2, 3-3/4, 4, 5, 6, 7
Conversion	1inch=25.4mm,        1mm=1000um
Grade	G10 G16 G20 G28 G40 G60 G100 G200 G500 G1000
Precision	G10:0.25μm G16:0.4μm G20:.5μm G28:0.7μm G40:1μm G60:1.5μm G100:2.5μm G200:5μm G500:13μm G1000:25μm
OEM	Yes.   (The sizes can be customized)

Packaging and Shipping

Packaging:

1. Plastic bag + box + carton + wooden pallet
2. Plastic bag +carton+wooden pallet
3. Our package :export cartons, steel drums, wooden pallets

Shipping:

1. EXPRESS
2. AIR
3. SEA

Introduction of Huari Steel Ball Co.,Ltd

Factory:

1. Established since year 1986, nearly about 30 years experience

2. Specialized in steel balls and ball related products.

3. High precision instruments and technical staffs.

4. Offer the good quality service and product with short delivery times.

Certification:

1. ISO 3290
2. BV

FAQ

1. What kind of steel balls can supply by HUARI STEEL BALL CO., LTD. ?


Material	Carbon, Chrome, Stainless, Aluminium, Copper, Brass and so on.
Size range	0.8mm-150mm
Grade	G10-1000
Packing	Standard or as customer required
Delivery	Stock within a short time or 35 days

2. Questions about packing and delivery.

Q1. -- If 'I' want small quantity and fast delivery. Which way of shipping is advised ?
A1. -- By express.
Q2. -- How many quantity will be packed in one carton or one pallet ?
A2. -- 20 to 25 kg per carton, 1 ton per wooden pallet.
Q3. -- What's the lead time ?
A3. -- If in stock, fast delivey;
         or, it will take 20-35 days, depend on the quantity.

3. How to place an order?

Inquiry

Quotation

Order

Deposit  Payment

Production

Packing

Balance  Payment

Shipping

Done


Send an email,please tell us Material --Size--Grade--Quantity
