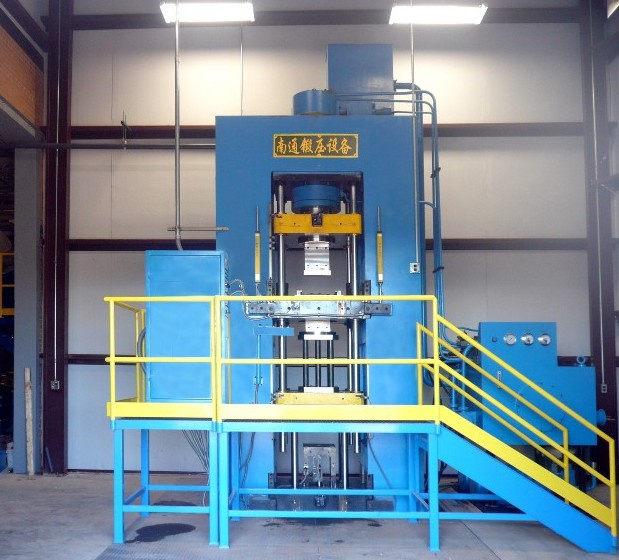

It is used for press forming of all kinds of powder products, including powder metallurgy, machinery parts manufacturing, precision ceramic, electronic ceramics and hard alloy products.
|
Parameter |
Unit |
YQ79Z-40 |
YQ79Z-63 |
YQ79Z-100 |
YQ79Z-160 |
YQ79Z-200 |
YQ79Z-250 |
YQ79Z-315 |
YQ79Z-500 |
YQ79Z-630 |
|
Rated Pressure |
KN |
400 |
630 |
1000 |
1600 |
2000 |
25003150 |
5000 |
6300 |
|
|
|
Knock-out Pressure |
KN |
160 |
160 |
160 |
310 |
400 |
400 |
630 |
1000 |
1500 |
|
|
Max. Pressure of Liquid |
Mpa |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
|
|
Max. Speed of Slide |
mm |
450 |
500 |
600 |
700 |
700 |
700 |
800 |
900 |
900 |
|
|
Stroke of Knock-out |
mm |
150 |
200 |
200 |
200 |
250 |
250 |
300 |
350 |
350 |
|
|
Daylight |
mm |
1000 |
1000 |
1200 |
1200 |
1200 |
1200 |
1500 |
1750 |
2450 |
|
|
Speed of Slide |
Descent |
mm/s |
160 |
180 |
220 |
160 |
100 |
100 |
100 |
100 |
100 |
|
Pressing |
mm/s |
20~25 |
18~20 |
10~14 |
10~15 |
12~18 |
8~12 |
8~10 |
10~15 |
6~10 |
|
|
Return |
mm/s |
120 |
100 |
120 |
70 |
70 |
70 |
60 |
70 |
60 |
|
|
Speed of Knock-out Cylinder |
Knock-out |
mm/s |
60 |
60 |
60 |
75 |
60 |
60 |
60 |
80 |
40 |
|
Return |
mm/s |
100 |
90 |
90 |
80 |
120 |
120 |
60 |
160 |
55 |
|
|
Dimensions of Table |
L-R |
mm |
500 |
570 |
720 |
720 |
1000 |
1000 |
1260 |
1400 |
1400 |
|
F-B |
mm |
460 |
500 |
580 |
620 |
900 |
900 |
1200 |
1400 |
1200 |
|
|
Overall Dimensions of Machinery |
L-R |
mm |
2200 |
2500 |
2800 |
2800 |
3270 |
5100 |
900 |
6275 |
5820 |
|
F-B |
mm |
1250 |
1250 |
1300 |
1500 |
3100 |
4200 |
3235 |
2785 |
2000 |
|
|
Height above Floor |
mm |
3300 |
3400 |
3600 |
4000 |
3725 |
4545 |
2060 |
5045 |
5560 |
|
|
Motor Power |
KW |
5.5 |
7.5 |
11 |
15 |
22 |
22 |
22 |
50 |
50 |
|
Nantong Metalforming Equipment Co., Ltd is a new high-tech enterprise which specializes in designing, producing and selling hydraulic press and providing individualized, various and systematic solutions of metal-forming and nonmetal-forming. The company is granted "Domestic Metal-forming Machine Tool Key Enterprise", "High-tech Enterprise", "Innovative enterprise in Jiangsu", "Private Science and Technology Enterprise" and "SME Science and Technology-oriented Enterprise". Our company mainly produces hydraulic press, mechanical press and other hundred kinds of metal-forming equipment. The products are widely used in the fields such as automobile, aerospace, nuclear power, shipping and so on. with business acumen and professional technology, the products are exported to more than 30 provinces and cities and even to the USA, Europe, Japan and other countries or areas in south-eastern Asia. The brand "Qing Hua" is granted the famous trademark in Jiangsu, Qin Hua hydraulic press has been prized as Jiangsu Top Brand Product.
In order to quicken the development steps and improve the innovation ability, the company had purchased some key equipment, such as NC floor milling & boring machine. Our manufacturing technology will reach the international level.
The company will take the most advantage of current hydraulic press market to realize coordinated development between hydraulic press and mechanical press. It seeks to implement urgent needs for talent and increase investment in science and technology to build national key metal-forming equipment innovative and producing base. Precisely, Nantong Metalforming group promises to meet the unique needs of its customers by high quality and best customer services.
