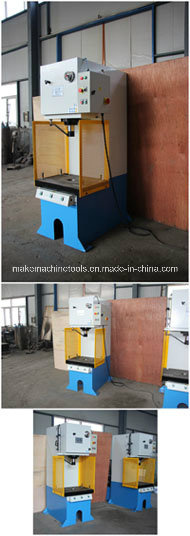

HP-C series open side "C" type hydraulic press, with trihedral open worktable, suitable for assembling and dismantling complex structure and large volume parts.
features:
strong hydraulic cylinder and two circular guides ensure uniform and precise feeding during press operation
ideal for die pressing, blanking, bending and much more
semi-automatic with lever and micro-switch
stroke length with quick adaption to next tool
ram plate and work table with T-slots for tool clamping
firmly bolted work table
advance and reverse jog operation for easy machine set-up
stroke limit adjustable by micro-switch
optimum table height
2-stage hydraulic pump
Technical specification
| model | units | HP-20C | HP-30C | HP-50C | HP-63C | HP-100C |
| capacity | kn | 200 | 300 | 500 | 630 | 1000 |
| pressure | Mpa | 25 | 25 | 31.5 | 31.5 | 31.5 |
| travel | mm | 300 | 300 | 300 | 300 | 400 |
| table size | mm | 400*300 | 400*300 | 400*600 | 400*700 | 500*800 |
| dimension | mm | 800*600*1500 | 800*600*1500 | 800*1200*1950 | 800*1200*1950 | 1000*1600*2100 |
| weight | kg | 860 | 1160 | 2800 | 3200 | 4800 |
