PLC Control Vvvf Speed Cabin Control Foundry Grade Overhead Casting Ladle Transferring Crane
| Price: |
US $ 2000-50000/Piece |
| Trade Terms: |
others |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |

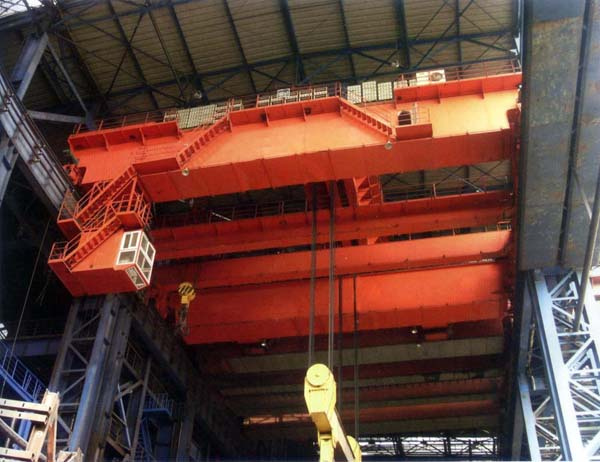

PLC Control VVVF Speed Cabin Control Foundry Grade Overhead Casting Ladle Transferring Crane
* 75/20T foundry crane; * 100/30T foundry crane;
* 125/50T foundry crane; * 140/40Tfoundry crane;
* 160/40T foundry crane; * 200/80T foundry crane;
* 280/75T foundry crane; * 450/80T foundry crane;
Application:
Foundry crane is one of the main equipments in the continuous casting technology of steelmaking. It is mainly used for pouring melted IR on from additive bay of converter to converter; Lifting molten steel from refining bay to refining furnace or lifting molten steel from molten steel bay to ladle turret of continuous Casting machine.
Overall structure:
Two crane gider with two rail or four girder with four rail (for 125t above)
Modern cabin control with Air conditioner to aviod harsh environment
Heat risistance treatment for crane main body
Virable travelling and hoisting speed to meet acurate work.
High working class to make full load and continuous work available.
Safe, reliable, long-lasting and economical, and easy to be maintained.
Technical Functions:
1. The mechanisms can be speed governing ( 1: 10 or larger);
2. The lifting appliances are rotatable;
3. The spacing of portal hook is variable;
4. Limit and warning for over load;
5. Weighing and display of load, PLC control and failure detection, display, record and printing system;
6. Prevent collision between cranes of same span.
| Lifting Height | t | 180/50 | 200/50 | 225/65 | 240/80 |
| Working Grade | A7 |
| Span | m | 28.5 | 28 | 27 | 22 |
| Lifting Height | Main Hook |
| 27 | 26 | 32 | 25 |
| Aux. Hook | m | 29 | 26 | 34 | 27 |
| Hoisting Speed | Main Hook | m/min | 7.6 | 6 | 11 | 7 |
| Auxiliary | 10 | 10 | 11 | 9.6 |
| Travelling Speed | Main Crab | 40 | 41 | 41 | 35 |
| Aux. Crab | 38 | 37.6 | 39.5 | 38 |
| Crane | 80 | 73 | 84 | 80 |
| Max Wheel Load | KN | 525 | 530 | 550 | 545 |
| Steel Track Recommend | QU120 |
| Power Source | 380V AC 3-Phase |
| Prod Model: |
YZ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| GB/T 24001-2004 Idt ISO14001: 2004: |
Pass |
| GB/T 19001-2000 Idt ISO 9001: 2000: |
Pass |
| GB/T 28001-2001, Ohsas18001: 1999: |
Pass |
| Lifting Mechanism: |
Electrical Hoist |
| Main Electrical Parts: |
Siemens Brand |
| Limited Switch: |
Include |
| Current Overload Protection System: |
Include |
| Voltage Lower Protection Function: |
Include |
| Painting Color: |
According to Your Demand |
| Type: |
Double Beam Crane |
| Application: |
Mineral Area Usage |
| Sling Type: |
Wire Rope |
| Power Source: |
Electric |
| Certification: |
CE |
| Condition: |
New |
| Tower Crane Type: |
Casting Crane |
