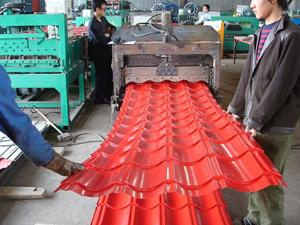

Botou win-win Roll Forming Mahcinery
If you want to know more information about our company, please visit: www.chinarfm.com
Machine details:
Machine size: Length 5.5m x width 1.3m x height 1.2m
Machine weight: 3.5 tons
Machine frame: 250mm H type steel
Plate thickness: 12mm
Main shaft: Material 45#. Solid shaft. Shaft diameter φ 70mm
Main motor power: 3 kw
Roller mold: 45# steel forging, normal lathe rough machining. CNC lathe precision machining. Polishing. Chrome plate
Profiling oil cylinder: Diameter φ 125mm, working schedule: 100mm
Speed reducer: Planet cycloid pin. Speed ration: 1: 59 4# speed reducer
Available roller thickness: 0.4-0.8mm
Back shear cylinder: Diameter φ 80mm, working schedule: 100mm
Back shear mold: Material CR12(chrome 12), rough grinding. Heat treatment. Wire cutting
Hydraulic pump station: Motor power: 3kw, 380V, 50HZ
Automatic control system: Taiwan delta PLC. 3.7kw inverter, Xinjie brand programmable display (you can choose imported 5.6inches touch screen )
Plate thickness: 0.5-0.8mm
Guarantee period: 12 months
|
main parameter of roll forming machine |
Suitable to process
|
Steel plate |
Width of the plate
|
1000mm/1200mm/1250mm |
|
Rollers |
9-11rows |
Dimensions
|
5.8*1.55*1.51m |
|
Power |
4kw+4kw |
|
Thickness of the plate |
0.3-0.7mm |
|
Productivity |
8-10m/min |
|
Diameter of the roller |
¢ 70mm |
Weight
|
About 3.4T |
Voltage
|
380V 50Hz 3phases |
Botou Win-win Roll Forming machinery Co., Ltd is located in Fuzhuang Industrial zone. 104 National road, Botou City Hebei province. Botou city is famous for roll forming machine manufacturing. It has unique talent and technology advantage. Here has long history and good folkway. The World-famous Beijing-hangzhou grand canal run through the city. North of Beijing and tianjin, east of bohai, south of shandong, west of taihang vision. Beijing-Shanghai railway. Beijing-Shanghai and shijiazhuang-huanghua high way, 104 and 106 national road runs through the city, superior location and convenient transportation and road access.
Sandwich panel production line, JCH roll forming machine, floor deck roll forming machine, C/Z purline roll forming machine, shearing machine, bending machine and other more than 10 kinds model, we can customize machine as customer requirement to make customer satisfied
Our company pursue that "science and technology as the guide, to the quality of survival, good faith for the market, "welcome to visit our company, we promise that give you high quality machine on competitive price.
If you have plan to purchase this type machine or have interest, just contact me.
Sarah Ren
