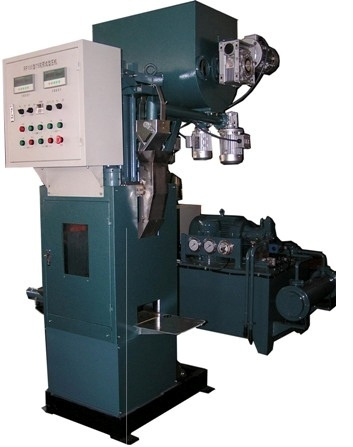

SJ600 Preformer
1. Usage
Used for performing press for material of pads...
2. Features
Auto weight material and fill in the mould; High efficiency of hydraulic system with low working oil temperature and more small size. Symmetrical pressure is ensured according to different technologies need. With electric unloading auto-righting hopper need not air-power. Unloading, mixing and moving material is doing at the same time so can guaranty the quality of product.
3. Main performance parameters
Output: 400 pieces/1 hour
Max. Trip of main cylinder: 300mm
Speed of main cylinder: 39.5mm/s
Pressing moment: 750-1, 500 kN
Rated pressure: 25MPa
Mold level size: 256× 206mm
Power: 15 kW; 3 phases; 380 V; 50Hz
Weighting system: Max. 250± 2 g(or by need);
Precision of sensor: 1/5000
Mixture bank capacity: 200 L
Dimension (Press): 1, 560× 2, 770× 2, 850 mm
Weight: About 3, 000 kg
