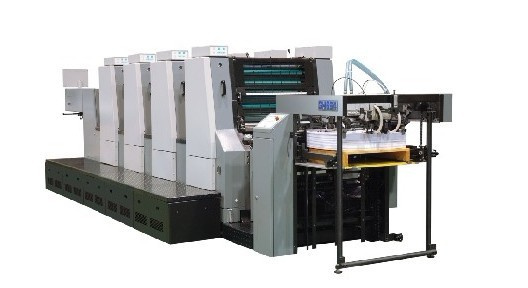

Properties
1. Super strong casting iron board (60mm in thickness)and unique design of machine base make its structure stable, durable and reliable.
2. High-precision outboard skew gears transmission, recycling lubricating system and low noise ensure satisfied performance and extend service life.
3. PLC control system, speed is variable by Inverter, max. Printing speed is 13000r/h.
4. Upper swing gyral paper gripper, stream paper feeding. Bearer device is designed between plate cylinder and transfer cylinder.
5. Pneumatic clutch, no mechanical impact, quick and stable action.
6. Automatic dampening cooling system, alcohol plate dampening and continuous dampening.
7. Vacuum suction and upper blowing guarantee smooth and accurate delivery.
8. Automatic plate changer device realizes quick plate changing.
9. Touch screen control system achieves exact axial and circumferencial adjustment without stopping machine. It is ± 3mm for axial, ± 1mm for circle, ± 0.15mm for skew step pitch is 0.01mm.
10. Separate inking zone, dampening and inking volume is adjustable without stopping machine. Inking and Dampening volume is adjustable according to main motor speed.
Technical Specification
Color Unit Number 4
Max. Printing Speed 2600-13000r/h
Max. Sheet Size 660x480mm
Min. Sheet Size 305x230mm
Paper Thickness 0.04-0.6mm
Max. Printing Area 650x470mm
Plate Size 670x560x0.30mm
Feed Pile Height 900mm
Delivery Pile Height 900mm
Ink Rollers 19 PCS
Dampening Rollers 5 PCS
Plate Form Rollers 5 PCS(4 PCS of ink, 1 PC of dampening)
Plate Dampening Alcohol
Power 20KW, Three-phase AC, 380V/50Hz
Net Wt. 15 T
Machine Dimension 6800x2500x1765mm
