| Price: | US $ 1200-1400/Ton |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 100/Piece |
| Pay Type: | L/C,T/T,D/P,Paypal |
2.Has advanced euipment and over 15 years experience.
3.price: competetive price , Precision made.Experience & Reasonable QC that you can reply on.
4. Process: Precision made.Experience & Reasonable QC that you can reply on Each part would be given 100% test and tryout before shipment.
5. Adequate supply capacity. Punctual delivery time.

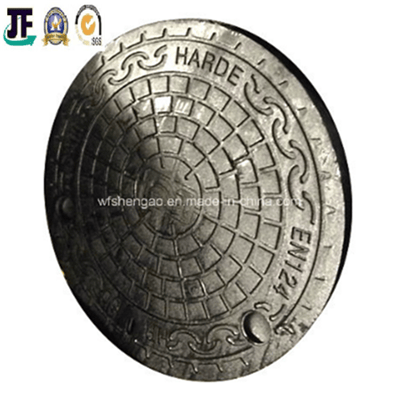

OEM Sand Cast Iron Sewer Manhole Cover for Roadway Safety
Company Profile:
We mainly undertake the casting parts,machined parts and other products.Our Import and Export Department have many years experiences of foreign trade,products are mainly exported to the United States,Denmark,Italy,Russia,Australia etc.
OEM Sand Cast Iron Sewer Manhole Cover for Roadway Safety
Characteristics of our manhole cover:
1. Material: cast gray iron, ductile iron.
2. Shape: round, square, rectangle and triangle.
3. Diameter: from 200mm to 1200mm.
4. Weight: from 7kg to 154kg or according to customers\' requirment
5. Packing: in wooden pallet with plastic layer
6. Annual output: 10,000 tons
7. Coating: black bitumen or Coating as per customers\' requirement
8. Use :municipal engineering, Traffic, pavement ,electronics,telecom, cable, petroleum, chemical industry, or drainage system and industrial facilities of valve well.
OEM Sand Cast Iron Sewer Manhole Cover for Roadway Safety
D400 Clear Opening 400mm Casting manhole cover/cast iron manhole cover price
Clear Opening: 390*390mm
Frame size: 490*490mm
Frame depth: 75
Testing Loading: D400
Material: Ductile iron GGG500-7&400-12
Standard : EN124
OEM Sand Cast Iron Sewer Manhole Cover for Roadway Safety
1. Advantage of our Manhole Covers
1) Can supply all kinds of load class Product such as A15/B125/C250/D400/E600/F900
2) Against theft and safety, double sealed, watertight type
3)material No. GGC50(DIN1693-73),QT500-7(GB/T1348-1988), 80-55-06(ASTM A536),
FCD500(JISG 5502-2001),500/7(BS2789:1985).
4)Free charge of design.
5) 3 day pay for ready if the request in storck.
OEM Sand Cast Iron Sewer Manhole Cover for Roadway Safety
2. Detailed information of manhole cover
1) Various manhole cover made by GX Foundry strictly conform to standard and free from
sand holes, blowholes,distortion or any other defects
2)Processes:
a) Automatic machine lines
b) Moulding boards
c) Green sand with hand moulding
3)Guarantee: GX Foundry will replace any heavy duty castings that have been properly
installed and broken in normal use,free of charge after receipt of the broken castings.
OEM Sand Cast Iron Sewer Manhole Cover for Roadway Safety
| Item | | Material | Technical Process |
| 1 | Ductile iron castings | ASTM A 536-Gr.60-40-18,65-45-12,80-55-06,80-60-03; DIN-GGG40,GGG50,GGG60,GGG70; JIS-FCD40,FCD50,FCD60,FCD70; BS-Gr370-17,Gr420-12,Gr500-7,Gr600-3,Gr700-2; NF-FGS370-12,FGS400-12,FGS500-7,FGS600-3,FGS700-2; | Green-sand moulding Resin-sand moulding Lost foam cast Shell-core cast Electric-furnace smelting |
| 2 | Grey iron castings | ASTM A48-No.20,25,30,35,40,45,50; ASTM A126-Class A, Class B, Class C; DIN-GG10,GG15,GG20,GG25,GG30,GG35; JIS-FC10,FC15,FC20,FC25,FC30,FC35; BS-Grade 150,180,220,260,300,350; NF-FGL150,FGL200,FGL250,FGL300,FGL350; | Green-sand moulding Resin-sand moulding Lost foam cast Shell-core cast Electric-furnace smelting |
| 3 | Carbon steel castings | ASTM A216-Gr. WCB, Gr. WCA, Gr. WCC; ASTM-415-205, 450-240, 485-275, 80-40; DIN- GS-C25(1.0619), GS-38(1.0416), GS-45(1.0446), GS-52(1.0552), GS-60(1.0558); JIS-SC410, SC450, SC480, SCC5; BS-A1, A2, A5; NF-GE230, GE280, GE320, GE370 | Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Lost foam cast Shell-core cast Electric-furnace smelting |
| 4 | Stainless steel castings | ASTM-CF-8M, CF-8, CA-15, CA-40, 316, 304; DIN-G-X6CrNi18 9(1.4308), G-X7Cr13(1.4001) G-X20Cr14(1.4027), 1.4408; JIS-SCS13, SCS 1, SCS 2, SCS 14A; BS-304C15, 410C21, 420C29, 316, 304; NF-Z6CND18.12M, Z6CN18.10M, Z12C13M, Z20C13M | Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Electric-furnace smelting |
| 5 | Alloy steel castings | DIN-GS-40Mn5(1.1168), GS-20Mn5(1.1120); GS-37MnSi5(1.5122), GS-34CrMo4(1.7220); JIS-SCMn3, SCW480, SCSiMn2, SCCrM3, SCMnCR3; ASTM-LCC UNS-J02505, J13048 NF-G20M6, G35CrMo4 | Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Electric-furnace smelting |

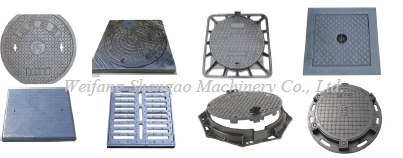

Manhole cover:

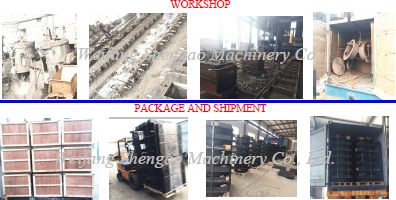

Workshop:
Quality Control:
OEM Sand Cast Iron Sewer Manhole Cover for Roadway Safety
| name | Manhole cover |
| material | ductile iron GGG50/7, gray iron |
| standard | EN124/1433/1563 |
| class | A15,B125,C250,D400,E600,F900 |
| shape | Round |
| Size | 600*600,840*840, 850*850 or as per customers' drawing |
| paint | bituminous black |
| advantage | Non-slip and safe, easy installation, easy to clean, excellent anti-pressure and attractive appearance |
| molding | DISA Line |
| process | Drawing-mould making-raw casting-sand blasting-rough machining-surface treatment-product inspection |
| application | footway, pedestrians, car parks, aircraft pavements |
| certificate | BSI, ISO9001:2000 |
| Strict quality control | Tensile strength: 500Mpa Yield stress : 320Mpa Elongation rate : 7% Hardness: HBS170-230 |
| Main products | Manhole covers and grates, Furnace, bases, Machinery parts, cookers, Valve bodies, pipe fittings, Auto parts |
| other information | we can cast and process any type of iron casting products according to customers' drawing or samples |
| Prod Model: | WF-JF |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: | OEM Sand Cast Iron Sewer Manhole Cover for Roadway |
| Raw Material: | Ductile Iron, Cast Iron, Qt500 |
| Size: | Dn100-1000mm |
| Tchincs: | Casting |
| Brand Name: | Shengao,OEM |
| Factory: | Over 15 Years'experience |
| Place Of Origin: | Shandong ,China |
| Logo: | Customized Available |
| Shape: | Round.Square,etc. |
| Shipping Port: | Qingdao Port |
| Type: | Chemical Hardening Sand |
