| Price: | US $ 1200-1400/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 100/Piece |
| Pay Type: | L/C,T/T,D/P,Paypal |

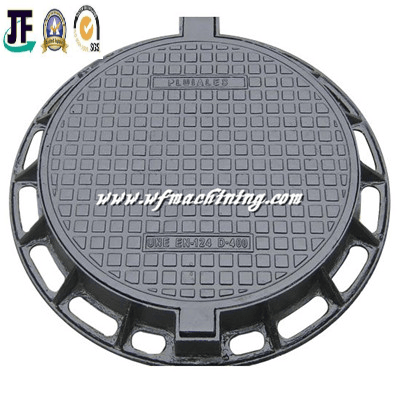

grey iron manhole cover
Process: Sand Casting manhole cover, Investment Casting manhole cover (Precision Casting/Lost-Wax Casting manhole cover).2.Has advanced euipment and over 15 years experience.
3.price: competetive price , Precision made.Experience & Reasonable QC that you can reply on.
4. Process: Precision made.Experience & Reasonable QC that you can reply on Each part would be given 100% test and tryout before shipment.
5. Adequate supply capacity. Punctual delivery time.
OEM Cast Iron Casting Resin Manhole Cover for Sand Casting Manhole
Company Profile:
We mainly undertake the casting parts,machined parts and other products.Our Import and Export Department have many years experiences of foreign trade,products are mainly exported to the United States,Denmark,Italy,Russia,Australia etc.
Casting Parts Workshop:
Cast Iron Water Meter Cover Iron Casting Clay Sand Casting
Characteristics of our manhole cover:
1. Material: cast gray iron, ductile iron.
2. Shape: round, square, rectangle and triangle.
3. Diameter: from 200mm to 1200mm.
4. Weight: from 7kg to 154kg or according to customers\' requirment
5. Packing: in wooden pallet with plastic layer
6. Annual output: 10,000 tons
7. Coating: black bitumen or Coating as per customers\' requirement
8. Use :municipal engineering, Traffic, pavement ,electronics,telecom, cable, petroleum, chemical industry, or drainage system and industrial facilities of valve well.
D400 Clear Opening 400mm Casting manhole cover/cast iron manhole cover price
Clear Opening: 390*390mm
Frame size: 490*490mm
Frame depth: 75
Testing Loading: D400
Material: Ductile iron GGG500-7&400-12
Standard : EN124
OEM Cast Iron Casting Resin Manhole Cover for Sand Casting Manhole
1. Advantage of our Manhole Covers
1) Can supply all kinds of load class Product such as A15/B125/C250/D400/E600/F900
2) Against theft and safety, double sealed, watertight type
3)material No. GGC50(DIN1693-73),QT500-7(GB/T1348-1988), 80-55-06(ASTM A536), FCD500(JISG 5502-2001),500/7(BS2789:1985).
4)Free charge of design.
5) 3 day pay for ready if the request in storck.
2. Detailed information of manhole cover
1) Various manhole cover made by GX Foundry strictly conform to standard and free from sand holes, blowholes,distortion or any other defects
2)Processes:
a) Automatic machine lines
b) Moulding boards
c) Green sand with hand moulding
3)Guarantee: GX Foundry will replace any heavy duty castings that have been properly installed and broken in normal use,free of charge after receipt of the broken castings.
OEM Cast Iron Casting Resin Manhole Cover for Sand Casting Manhole
| Item | | Material | Technical Process |
| 1 | Ductile iron castings | ASTM A 536-Gr.60-40-18,65-45-12,80-55-06,80-60-03; DIN-GGG40,GGG50,GGG60,GGG70; JIS-FCD40,FCD50,FCD60,FCD70; BS-Gr370-17,Gr420-12,Gr500-7,Gr600-3,Gr700-2; NF-FGS370-12,FGS400-12,FGS500-7,FGS600-3,FGS700-2; | Green-sand moulding Resin-sand moulding Lost foam cast Shell-core cast Electric-furnace smelting |
| 2 | Grey iron castings | ASTM A48-No.20,25,30,35,40,45,50; ASTM A126-Class A, Class B, Class C; DIN-GG10,GG15,GG20,GG25,GG30,GG35; JIS-FC10,FC15,FC20,FC25,FC30,FC35; BS-Grade 150,180,220,260,300,350; NF-FGL150,FGL200,FGL250,FGL300,FGL350; | Green-sand moulding Resin-sand moulding Lost foam cast Shell-core cast Electric-furnace smelting |
| 3 | Carbon steel castings | ASTM A216-Gr. WCB, Gr. WCA, Gr. WCC; ASTM-415-205, 450-240, 485-275, 80-40; DIN- GS-C25(1.0619), GS-38(1.0416), GS-45(1.0446), GS-52(1.0552), GS-60(1.0558); JIS-SC410, SC450, SC480, SCC5; BS-A1, A2, A5; NF-GE230, GE280, GE320, GE370 | Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Lost foam cast Shell-core cast Electric-furnace smelting |
| 4 | Stainless steel castings | ASTM-CF-8M, CF-8, CA-15, CA-40, 316, 304; DIN-G-X6CrNi18 9(1.4308), G-X7Cr13(1.4001) G-X20Cr14(1.4027), 1.4408; JIS-SCS13, SCS 1, SCS 2, SCS 14A; BS-304C15, 410C21, 420C29, 316, 304; NF-Z6CND18.12M, Z6CN18.10M, Z12C13M, Z20C13M | Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Electric-furnace smelting |
| 5 | Alloy steel castings | DIN-GS-40Mn5(1.1168), GS-20Mn5(1.1120); GS-37MnSi5(1.5122), GS-34CrMo4(1.7220); JIS-SCMn3, SCW480, SCSiMn2, SCCrM3, SCMnCR3; ASTM-LCC UNS-J02505, J13048 NF-G20M6, G35CrMo4 | Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Electric-furnace smelting |
Manhole Cover:

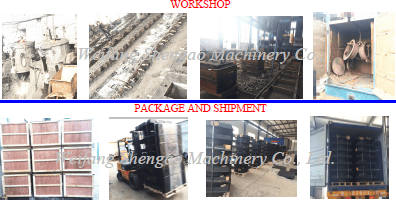

Workshop:
Quality Control:
| Item | Description | Material | Technical Process |
| 1 | Ductile iron castings | ASTM A 536-Gr.60-40-18,65-45-12,80-55-06,80-60-03; DIN-GGG40,GGG50,GGG60,GGG70; JIS-FCD40,FCD50,FCD60,FCD70; BS-Gr370-17,Gr420-12,Gr500-7,Gr600-3,Gr700-2; NF-FGS370-12,FGS400-12,FGS500-7,FGS600-3,FGS700-2; | Green-sand moulding Resin-sand moulding Lost foam cast Shell-core cast Electric-furnace smelting |
| 2 | Grey iron castings | ASTM A48-No.20,25,30,35,40,45,50; ASTM A126-Class A, Class B, Class C; DIN-GG10,GG15,GG20,GG25,GG30,GG35; JIS-FC10,FC15,FC20,FC25,FC30,FC35; BS-Grade 150,180,220,260,300,350; NF-FGL150,FGL200,FGL250,FGL300,FGL350; | Green-sand moulding Resin-sand moulding Lost foam cast Shell-core cast Electric-furnace smelting |
| 3 | Carbon steel castings | ASTM A216-Gr. WCB, Gr. WCA, Gr. WCC; ASTM-415-205, 450-240, 485-275, 80-40; DIN- GS-C25(1.0619), GS-38(1.0416), GS-45(1.0446), GS-52(1.0552), GS-60(1.0558); JIS-SC410, SC450, SC480, SCC5; BS-A1, A2, A5; NF-GE230, GE280, GE320, GE370 | Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Lost foam cast Shell-core cast Electric-furnace smelting |
| 4 | Stainless steel castings | ASTM-CF-8M, CF-8, CA-15, CA-40, 316, 304; DIN-G-X6CrNi18 9(1.4308), G-X7Cr13(1.4001) G-X20Cr14(1.4027), 1.4408; JIS-SCS13, SCS 1, SCS 2, SCS 14A; BS-304C15, 410C21, 420C29, 316, 304; NF-Z6CND18.12M, Z6CN18.10M, Z12C13M, Z20C13M | Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Electric-furnace smelting |
| 5 | Alloy steel castings | DIN-GS-40Mn5(1.1168), GS-20Mn5(1.1120); GS-37MnSi5(1.5122), GS-34CrMo4(1.7220); JIS-SCMn3, SCW480, SCSiMn2, SCCrM3, SCMnCR3; ASTM-LCC UNS-J02505, J13048 NF-G20M6, G35CrMo4 | Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Electric-furnace smelting |
OEM Cast Iron Casting Resin Manhole Cover for Sand Casting Manhole
1. Q: Why choose Shengao product?
A: We shengao have our own plant-- Weifang Shengao machinery Co.,Ltd, therefore, we can surely promise the quality of every product and provide you comparable price.
2. Q: Do you provide OEM Service?
A: Yes, we provide OEM Service.
3. Q: Do you provide customized manhole cover?
A: Yes. Customers give us drawings and specifications, and we will manufact accordingly.
4. Q: What is your payment term?
A: We provide kinds of payment terms such as L/C, T/T, Paypal, Escrow, etc.
Quality First,Pric Best,Service Foremost !
We assure you of our best services at all times !
OEM Cast Iron Casting Resin Manhole Cover for Sand Casting Manhole
| Item | OEM Cast Iron Casting Resin Manhole Cover for Sand Casting Manhole |
| Size | DN100-1000mm |
| Surface treatment | black painted, oil, painting |
| Shape | square, round |
| Material | ductile iron, cast iron, QT500 |
| Heat Treatment | can be as your requirement. |
| Advantages | Delivery on time, according to the demand for materials |
| Packing | wooden case or as your requirement. |
| Delivery | within 30 days after receiving last confirm information. |
| Prod Model: | WF-JF |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: | OEM Iron Casting Resin Manhole Cover |
| Raw Material: | Ductile Iron |
| Size: | Cast Iron |
| Tchincs: | Qt500 |
| Brand Name: | Dn100-1000mm |
| Factory: | Casting |
| Supply: | Shengao |
| Castig Type: | OEM |
| Standard Or Nonstandard: | Over 15 Years'experience |
| Place Of Origin: | Drawing Design |
| Type: | Chemical Hardening Sand |
