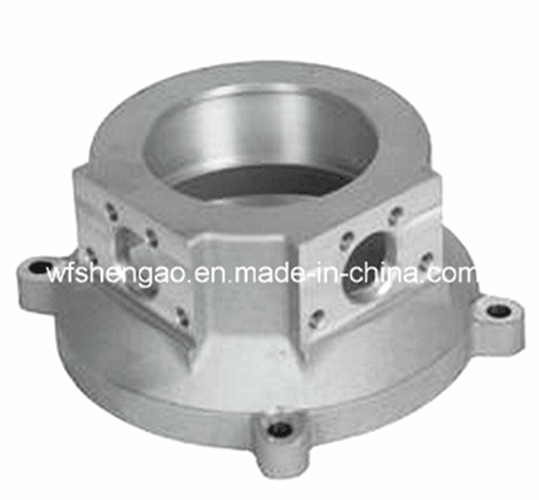

OEM Iron Casting Parts Precision Cast Parts Metal Casting
Casting parts,sand casting parts,precision casting parts,stainless steel casting parts,steelcasting parts,steel casting ,stainless steel casting,carbon steel casting,casting,metal casting
A. Sodium silicate sand casting.
B. Steel, SST.
C. Weight: Upto 7000KG.
D. Pump body, impeller, etc.
E. Hydraulic test, and other necessary inspections available.
F. Further machining: CNC machining, turning, milling, planing, grinding, boring, drilling, threading as your drawing.
G. OEM service.
H. ISO9001: 2008.
OEM Iron Casting Parts Machining Parts Metal Castig of Precision Machining
Typical products:
Scaffold fittings, Template parts, Railway fittings, ring flange, electromagnetic steel cover, piston, pressure plate, center plate, wear plate, cylinder, impeller, disc etc.
OEM Iron Casting Parts Precision Cast Parts Metal Castig
Production capacity:
1. Casting classification: Sand casting; Precision casting; Vacuum process casting etc.
2. Gray iron, ductile iron, stainless steel, carbon steel, alloy steel, etc.
3. Adoption standard: BS, DIN, ASTM GB etc.
4. Weight range: 0.5~5000kg.
5. Producing capacity: 2, 000 tons per month.
6. Main application: Metallurgy; Machinery; Plastics; Rubber; Pharmaceutical;
Textiles; Mining; Paper-making; Packaging.
7. Main equipments: Furnaces; Heat treatment furnaces; Direct-reading spectrometer; Shot -blasting equipments, etc.
8. Surface treatment: Polishing, plating, shot blasting, heat treatment, etc
9. Inspection and test: Foundry in home, third part inspection, Material report, UT, MT, RT, and PT, etc...
10. Packing and shipping: Stand export packing; 20day make modul & sample; Delivery time against your quantity.
11. Casting service: Your logo, character, trade name, number etc can be casted on the surface clearly.
OEM Iron Casting Parts Precision Cast Parts Metal Castig
1.Ductile Iron Castings:
molding process: Resin sand/Green Sand
Material: EN-GJS-400-15/EN-GJS-500-7/EN-GJS-600-3/EN-GJS-700-2
Molding: Hand molding/Molding machine Z145/146/148/Molding line.
Possible Heat Treatment: Annealing
Industry involved: Municipal Construction / Fluid
/Automotive
Part unit weight range: 0. 5kg-2000kgs
Max/Min wall thickness requirements: 4mm-250mm
Manufacturer Certification: ISO9001(2000)/ TS16949
OEM Iron Casting Parts Precision Cast Parts Metal Castig
2. Grey iron castings:
1) molding process: Green sand/Resin sand
2) Material: EN-GJL-150/DIN 1691 GG-15,EN-GJL-200/DIN 1691-GG20,EN-GJL-250/DIN1691-GG25
,EN-GJL-300/DIN1691-GG30
3) Molding: Hand molding/ Molding machine Z145/146/148/Molding line.
4) Industry involved: Municipal industry/Construction Fluid industry/Automotive industry
5) Part unit weight range: 0.5kg-2000kgs
6) Max/Min wall thickness requirements: 4mm
7) Manufacturer Certification: ISO9001(2000)/ TS16949
Quality First, Price Best, Service Foremost!
We assure you of ourbest services at all times!
OEM Iron Casting Parts Precision Cast Parts Metal Casting
1.ISO9001-2008.
2.Has advanced euipment and over 15 years experience.
3.price: competetive price , Precision made.Experience & Reasonable QC that you can reply on.
4. Process: Precision made.Experience & Reasonable QC that you can reply on Each part would be given 100% test and tryout before shipment.
5. Adequate supply capacity. Punctual delivery time.Forging: We can provide forged ring, open-die forging, forged shaft, forged bush, forged shape, drop forging, precision forging, hot-pressed part, upset forging, hot-upset part, forging casting, forged disc, perforated disc.
OEM Customized Metal Iron Casting Parts with Drawings or Samples
Material specification: 1. carbon & low alloy steel;
2. stainless steel;
3. high alloy & wear resist steel;
4. gray iron; ductile iron;
5. malleable iron;
6. alloyed cast iron;
7. aluminum alloy;
8. cooper alloy;
9. zinc alloy
Range of casting weight: 0.50kg-450kg
Heat Treatment: Normalizing
Quenching
Tempering
OEM Customized Metal Iron Casting Parts with Drawings or Samples
OUR MACHINING PROCESS :
Occupies an area more than 6,000 square meters
More than 40pcs big CNC lathes Ø500 - Ø1200
Machining center 1400 x 825 x 1000mm 4 axis
Can provide services: turning; milling; grinding; drilling; inserting; broaching; boring; polishing
Surface preparation: passivation; polishing; plating; coating; painting; zinc phosphate; dacrotized / dacromet technology
Carbon steel
castings | ASTM A216-Gr. WCB, Gr. WCA, Gr. WCC;
ASTM-415-205, 450-240, 485-275, 80-40;
DIN- GS-C25(1.0619), GS-38(1.0416),
GS-45(1.0446), GS-52(1.0552), GS-60(1.0558);
JIS-SC410, SC450, SC480, SCC5;
BS-A1, A2, A5;
NF-GE230, GE280, GE320, GE370 | Soluble glass sand moulding
Resin-sand moulding
Lost wax casting
(Investment casting)
Lost foam cast
Shell-core cast
Electric-furnace smelting |
Stainless steel
castings | ASTM-CF-8M, CF-8, CA-15, CA-40, 316, 304;
DIN-G-X6CrNi18 9(1.4308), G-X7Cr13(1.4001)
G-X20Cr14(1.4027), 1.4408;
JIS-SCS13, SCS 1, SCS 2, SCS 14A;
BS-304C15, 410C21, 420C29, 316, 304;
NF-Z6CND18.12M, Z6CN18.10M, Z12C13M, Z20C13M | Soluble glass sand moulding
Resin-sand moulding
Lost wax casting
(Investment casting)
Electric-furnace smelting |
Alloy steel
castings | DIN-GS-40Mn5(1.1168), GS-20Mn5(1.1120);
GS-37MnSi5(1.5122), GS-34CrMo4(1.7220);
JIS-SCMn3, SCW480, SCSiMn2, SCCrM3, SCMnCR3;
ASTM-LCC
UNS-J02505, J13048
NF-G20M6, G35CrMo4 | Soluble glass sand moulding
Resin-sand moulding
Lost wax casting
(Investment casting)
Electric-furnace smelting |
OEM Iron Casting Parts Precision Cast Parts Metal Castig
Q: Why choose Shengao product?
A: We shengao have our own plant-- Weifang Shengao machinery Co.,Ltd, therefore, we can surely promise the quality of every product and provide you comparable price.
Q: Do you provide OEM Service?
A: Yes, we provide OEM Service.
Q: Do you provide customized casting products?
A: Yes. Customers give us drawings and specifications, and we will manufact accordingly.
Q: What is your payment term?
A: We provide kinds of payment terms such as L/C, T/T, Paypal, Escrow, etc.
If there's anything I can help, please feel free to contact with me.
WeiFang Shengao Machinery Co., Ltd is located in WeiFang the famous city in China and the world center of kites. It is 140 kilometers far away from Qingdao port, the transporation is very convenient. Our company use the location advantages of ShanDong province to integrate resources so that we can processing according to the drawings of customers. We mainly undertake the casting parts, machined parts and other products. Our Import and Export Department have many years experiences of foreign trade, products are mainly exported to the United States, Denmark, Italy, Russia, Australia etc.
Over the years, company adhere to the guideline for management of "Quality first, Reputation first, Delivery just-in-time, Price best". We will try our best to improve the technical level and perfect the enterprise management. Our company will depend on superior quality of products and sincere service to cooperate with dometic and overseas, new and old customers and establish eternal friendship to create a bright future.
