OEM Iron and Steel Castings (DS112)

OEM Iron and Steel Castings  (DS112)
Price: Negotiable/Piece
Min Order: 1 /Piece

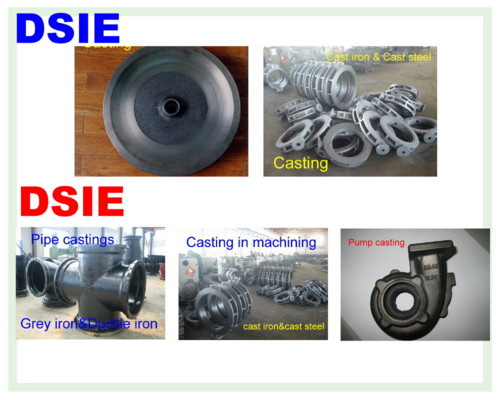

We can supply all kinds of ductile iron and grey iron castings with machining such as electromotor parts, valves parts, pump parts, vehicle parts, marine parts and other machinery parts, materials are as follows:

1. Ductile iron: ASTM A 536 Gr. 60-40-18, 65-45-12, 80-55-06, 80-60-03; DIN GGG40, GGG50, GGG60, GGG70; JIS FCD40, FCD50, FCD60, FCD70; BS Gr370-17, Gr420-12, Gr500-7, Gr600-3, Gr700-2; NF FGS370-12, FGS400-12, FGS500-7, FGS600-3, FGS700-2;
2. Grey iron: ASTM A48 No. 20, 25, 30, 35, 40, 45, 50; ASTM A126 Class B; DIN GG10, GG15, GG20, GG25, GG30, GG35; JIS FC10, FC15, FC20, FC25, FC30, FC35; BS Grade 150, 180, 220, 260, 300, 350; NF FGL150, FGL200, FGL250, FGL300, FGL350;
3. Carbon steel: WCB, 450-240, 1.0619, GS-45, 1.0446, SC450, A1, GE230, 230-450, etc.;
4. Stainless steel: CF-8M, CF-8, 1.4408, 1.4308, SCS14A, SCS13, 316, 304, etc.;
5. Alloy steel: LCC, 1.1168, SCMn3, 1.7220, SCCrM3, G35CrMo4, etc.;
According to specification ASTM, DIN, JIS, BS, NF, ISO etc...
Technical process includes green sand moulding, resin sand moulding, lost wax casting(Investment castings), lost foam casting and shell-core casting.
We have special engineers and technicians who have much experiences in arranging production and quality controlling to track all orders and delivery time, and carry out products inspection. Our products have been despatched with all certificates such as chemistry element and mechanical property reports, physical characteristic and non-destructive detect reports if necessary ( UT, MT, PT, RT).
We are always ready for supplying any products to oversea customers with excellent quality, timely delivery, reasonable price and circumspect after service.

We welcome you to contact me if you would be interested in us and our products.

Best regards,
Xuekui
Item Description Material Technical Process
1 Ductile iron
castings
ASTM A 536-Gr.60-40-18,65-45-12,80-55-06,80-60-03;
DIN-GGG40,GGG50,GGG60,GGG70;
JIS-FCD40,FCD50,FCD60,FCD70;
BS-Gr370-17,Gr420-12,Gr500-7,Gr600-3,Gr700-2;
NF-FGS370-12,FGS400-12,FGS500-7,FGS600-3,FGS700-2;
Green-sand moulding
Resin-sand moulding
Lost foam cast
Shell-core cast
Electric-furnace smelting
2 Grey iron
castings
ASTM A48-No.20,25,30,35,40,45,50;
ASTM A126-Class A, Class B, Class C;
DIN-GG10,GG15,GG20,GG25,GG30,GG35;
JIS-FC10,FC15,FC20,FC25,FC30,FC35;
BS-Grade 150,180,220,260,300,350;
NF-FGL150,FGL200,FGL250,FGL300,FGL350;
Green-sand moulding
Resin-sand moulding
Lost foam cast
Shell-core cast
Electric-furnace smelting
3 Carbon steel
castings
ASTM A216-Gr. WCB, Gr. WCA, Gr. WCC;
ASTM-415-205, 450-240, 485-275, 80-40;
DIN- GS-C25(1.0619), GS-38(1.0416),
GS-45(1.0446), GS-52(1.0552), GS-60(1.0558);
JIS-SC410, SC450, SC480, SCC5;
BS-A1, A2, A5;
NF-GE230, GE280, GE320, GE370
Soluble glass sand moulding
Resin-sand moulding
Lost wax casting
(Investment casting)
Lost foam cast
Shell-core cast
Electric-furnace smelting
4 Stainless steel
castings
ASTM-CF-8M, CF-8, CA-15, CA-40, 316, 304;
DIN-G-X6CrNi18 9(1.4308), G-X7Cr13(1.4001)
G-X20Cr14(1.4027), 1.4408;
JIS-SCS13, SCS 1, SCS 2, SCS 14A;
BS-304C15, 410C21, 420C29, 316, 304;
NF-Z6CND18.12M, Z6CN18.10M, Z12C13M, Z20C13M
Soluble glass sand moulding
Resin-sand moulding
Lost wax casting
(Investment casting)
Electric-furnace smelting
5 Alloy steel
castings
DIN-GS-40Mn5(1.1168), GS-20Mn5(1.1120);
GS-37MnSi5(1.5122), GS-34CrMo4(1.7220);
JIS-SCMn3, SCW480, SCSiMn2, SCCrM3, SCMnCR3;
ASTM-LCC
UNS-J02505, J13048
NF-G20M6, G35CrMo4
Soluble glass sand moulding
Resin-sand moulding
Lost wax casting
(Investment casting)
Electric-furnace smelting
Prod Model: DS112
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Casting Material: Ductile Iron, Grey Iron and Steel Castings
Material Standard: ASTM, Uns, DIN, JIS, Bs, Nf, ISO, GB
Tech. Method: Sand Casting, Lost Wax Casting, Lost Foam Casting
Unit Weight: 0.01 - 40000kg
Dalian Shipbuilding Import Export Company was founded in 1992. It is a company engaging in import and export business in machinery for more than ten years, and have much experience in arrangement of technology development and product manufacturing.
We have many associated factories and special technology development center, which can meet the requirements of the different customers with supply and service.
We can supply all kinds of casting and machining products, material including ductile iron, grey iron, carbon steel, stainless steel, alloy steel, aluminum, zinc alloy, bronze, brass, plastic etc., technical process covering sand cast, die cast, lost wax cast, permanent gravity die cast, lost foam cast, centrifugal cast etc.
We can also supply various large-scale valves such as butterfly valve, gate valve, check valve, regulating valve, air valve and etc.
Under the principle of equity and mutual benefits, we always abide by the concluded contracts and keep our promises. Dalian Shipbuilding Import Export Company is ready to offer you the best service in diverse and flexible ways according to your needs.
We'd sincerely like to build cooperation relation with widely oversea customers in the above fields.
Please feel free to contact me if you would be interested in us and our products.
