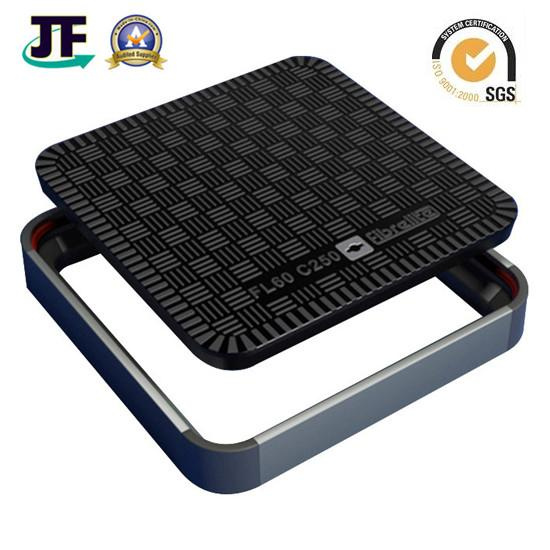

OEM Ductile Iron Casting Drainage Manhole Cover with Drain System

OEM Ductile Iron Sand Casting Drain Manhole Cover with Drain System

septic tank;manhole;drainage;manhole covers;channel drain;drainage systems;drain covers;driveway drainage;septic tank covers;drain grates;gulley;drainage ditch;manhole cover lifter

Manhole Cover,square manhole cover,cast iron manhole cover,ductile iron manhole cover,round
manhole cover,drain manhole cover,iron manhole cover,
grey iron manhole cover

Manhole Cover
Cast iron manhole cover

We can produce all kind of manhole cover with customers' drawing or sampe.
OEM ans ODM are welcomed.

Process: Sand Casting, Investment Casting  (Precision Casting/Lost-Wax Casting).
2.Casting experience: 10years,OEM service available
3.Surface: blackening, galvanize, plating,painting,etc.
4.Material: QT, iron, steel
5.Technology: sand casting
6.Advantages: Delivery on time,  according to the demand for materials
7.Packing: wooden case or as your requirement.
8.Deliverywithin 20 days after receiving last confirm information.
9.Production Capacity: Sand Casting 2000 tons per month,Investment Casting 120 tons per month.
10.Certification: ISO 9001:2008.

OEM Ductile Iron Sand Casting Drain Manhole Cover with Drain System
Characteristics of our manhole cover:

 1. Material: cast gray iron, ductile iron.

 2. Shape: round, square, rectangle and triangle.

 3. Diameter: from 200mm to 1200mm.

 4. Weight: from 7kg to 154kg or according to customers\' requirment

 5. Packing: in wooden  pallet with plastic layer

 6. Annual output: 10,000 tons

 7. Coating: black bitumen or Coating as per customers\' requirement

 8. Use :municipal engineering, Traffic, pavement ,electronics,telecom, cable, petroleum, chemical industry, or drainage system and industrial facilities of valve well.

OEM Ductile Iron Sand Casting Drain Manhole Cover with Drain System
D400 Clear Opening 400mm  Casting manhole cover/cast iron manhole cover price
 Clear Opening: 390*390mm
 Frame size: 490*490mm
 Frame depth: 75
 Testing Loading: D400
 Material: Ductile iron GGG500-7&400-12
 Standard : EN124
1. Advantage of our Manhole Covers
   1) Can supply all kinds of load class Product such as A15/B125/C250/D400/E600/F900
    2) Against theft and safety, double sealed, watertight type
    3)material No. GGC50(DIN1693-73),QT500-7(GB/T1348-1988), 80-55-06(ASTM A536), FCD500(JISG            5502-2001),500/7(BS2789:1985).
   4)Free charge of design.
   5) 3 day pay for ready if the request in storck.

OEM Ductile Iron Sand Casting Drain Manhole Cover with Drain System

 2. Detailed information of manhole cover
1) Various manhole cover made by GX Foundry strictly conform to standard and free from sand holes,             blowholes,distortion or any other defects
2)Processes:
  a) Automatic machine lines
  b) Moulding boards
  c) Green sand with hand moulding
3)Guarantee: GX Foundry will replace any heavy duty castings that have been properly installed and           broken in normal use,free of charge after receipt of the broken castings.

OEM Ductile Iron Sand Casting Drain Manhole Cover with Drain System

1.Ductile Iron Castings:
molding process: Resin sand/Green Sand
Material: EN-GJS-400-15/EN-GJS-500-7/EN-GJS-600-3/EN-GJS-700-2
Molding: Hand molding/Molding machine Z145/146/148/Molding line.
Possible Heat Treatment: Annealing
Industry involved: Municipal Construction / Fluid
/Automotive
Part unit weight range: 0. 5kg-2000kgs
Max/Min wall thickness requirements: 4mm-250mm
Manufacturer Certification: ISO9001(2000)/ TS16949
2. Grey iron castings:
1) molding process: Green sand/Resin sand
2) Material: EN-GJL-150/DIN 1691 GG-15,EN-GJL-200/DIN 1691-GG20,EN-GJL-250/DIN1691-GG25
,EN-GJL-300/DIN1691-GG30
3) Molding: Hand molding/ Molding machine Z145/146/148/Molding line.
4) Industry involved: Municipal industry/Construction Fluid industry/Automotive industry
5) Part unit weight range: 0.5kg-2000kgs
6) Max/Min wall thickness requirements: 4mm
7) Manufacturer Certification: ISO9001(2000)/ TS16949

Item	Description	Material	Technical Process
1	Ductile iron castings	ASTM A 536-Gr.60-40-18,65-45-12,80-55-06,80-60-03; DIN-GGG40,GGG50,GGG60,GGG70; JIS-FCD40,FCD50,FCD60,FCD70; BS-Gr370-17,Gr420-12,Gr500-7,Gr600-3,Gr700-2; NF-FGS370-12,FGS400-12,FGS500-7,FGS600-3,FGS700-2;	Green-sand moulding Resin-sand moulding Lost foam cast Shell-core cast Electric-furnace smelting
2	Grey iron castings	ASTM A48-No.20,25,30,35,40,45,50; ASTM A126-Class A, Class B, Class C; DIN-GG10,GG15,GG20,GG25,GG30,GG35; JIS-FC10,FC15,FC20,FC25,FC30,FC35; BS-Grade 150,180,220,260,300,350; NF-FGL150,FGL200,FGL250,FGL300,FGL350;	Green-sand moulding Resin-sand moulding Lost foam cast Shell-core cast Electric-furnace smelting
3	Carbon steel castings	ASTM A216-Gr. WCB, Gr. WCA, Gr. WCC; ASTM-415-205, 450-240, 485-275, 80-40; DIN- GS-C25(1.0619), GS-38(1.0416), GS-45(1.0446), GS-52(1.0552), GS-60(1.0558); JIS-SC410, SC450, SC480, SCC5; BS-A1, A2, A5; NF-GE230, GE280, GE320, GE370	Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Lost foam cast Shell-core cast Electric-furnace smelting
4	Stainless steel castings	ASTM-CF-8M, CF-8, CA-15, CA-40, 316, 304; DIN-G-X6CrNi18 9(1.4308), G-X7Cr13(1.4001) G-X20Cr14(1.4027), 1.4408; JIS-SCS13, SCS 1, SCS 2, SCS 14A; BS-304C15, 410C21, 420C29, 316, 304; NF-Z6CND18.12M, Z6CN18.10M, Z12C13M, Z20C13M	Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Electric-furnace smelting
5	Alloy steel castings	DIN-GS-40Mn5(1.1168), GS-20Mn5(1.1120); GS-37MnSi5(1.5122), GS-34CrMo4(1.7220); JIS-SCMn3, SCW480, SCSiMn2, SCCrM3, SCMnCR3; ASTM-LCC UNS-J02505, J13048 NF-G20M6, G35CrMo4	Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Electric-furnace smelting


 OEM Ductile Iron Sand Casting Drain Manhole Cover with Drain System


name	OEM Ductile Iron Sand Casting Drain Manhole Cover with Drain System
material	ductile iron GGG50/7, gray iron
standard	EN124/1433/1563
class	A15,B125,C250,D400,E600,F900
shape	Round
Size	600*600,840*840, 850*850 or as per customers' drawing
paint	bituminous black
advantage	Non-slip and safe, easy installation, easy to clean, excellent anti-pressure and attractive appearance
molding	DISA Line
process	Drawing-mould making-raw casting-sand blasting-rough machining-surface treatment-product inspection
application	footway, pedestrians, car parks, aircraft pavements
certificate	BSI, ISO9001:2000
Strict quality control	Tensile strength: 500Mpa                        Yield stress :  320Mpa Elongation rate :  7% Hardness: HBS170-230
Main products	Manhole covers and grates, Furnace, bases, Machinery parts, cookers, Valve bodies, pipe fittings, Auto parts
other information	we can cast and process any type of iron casting products according to customers' drawing or samples

   Size( customized available for other dimensions)

Order No.	Inner dia	grating	Outer dia	Height	Weight(kg)	Pressure(KN)
F0536-1	252 x 252	326 x 326	360 x 360	36	13.5	C250
F0536-2	350 x 350	400 x 400	470 x 470	40	20	C250
F0536-3	450 x 450	500 x 500	580 x 580	50	32	C250
F0536-4	550 x 550	600 x 600	680 x 680	50	39	C250
F0536-5	350 x 350	400 x 400	500 x 500	100	36.2	D400
F0536-6	450 x 450	500 x 500	600 x 600	100	49	D400
F0536-7	560 x 560	600 x 600	700 x 700	100	62	D400

Material composition:

Tensile strength	560Mpa	Yield strees	340Mpa
Elongation rate	7.5%	Hardness	210HBS
Material	GJS500-7(GGG50)	Standard	EN 124

OEM Ductile Iron Sand Casting Drain Manhole Cover with Drain System
Q: Why choose Shengao product?
 A: We shengao have our own plant-- Weifang Shengao machinery Co.,Ltd, therefore, we can surely promise the quality of every product and provide you comparable price.
Q: Do you provide OEM Service?
A: Yes, we provide OEM Service.
Q: Do you provide customized manhole cover?
A: Yes. Customers give us drawings and specifications, and we will manufact accordingly.
Q: What is your payment term?
A: We provide kinds of payment terms such as L/C, T/T, Paypal, Escrow, etc.


If there's anything I can help, please feel free to contact with me.
