Specifications
Sand cast and CNC machined control valve Body
1.strict QC & timely delivery
2.Standard:BS,DIN,ASTM
3.good at custom
4.OEM

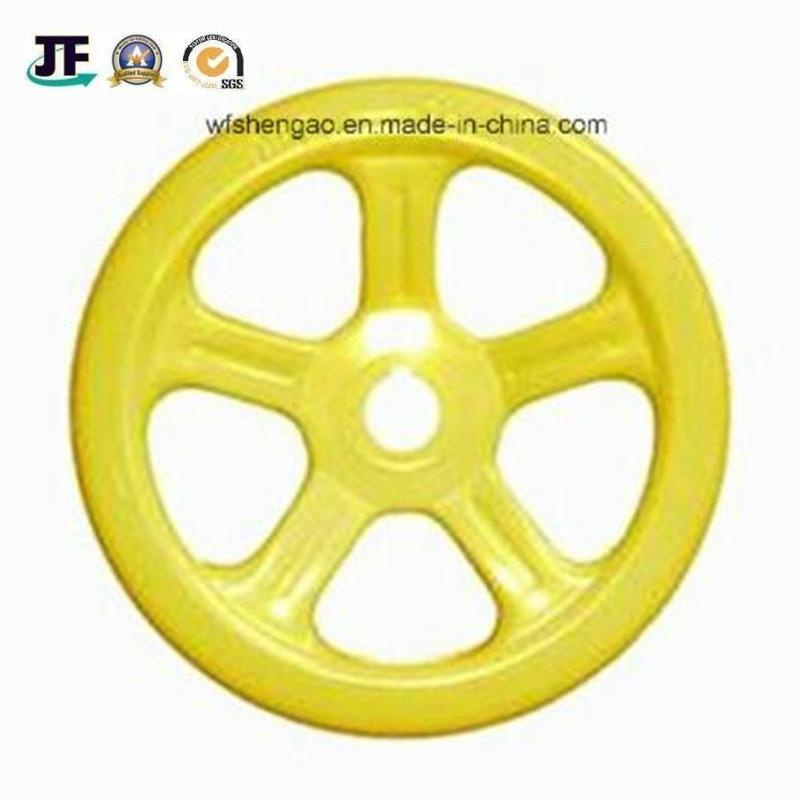

OEM Casting Iron/Stainless Steel Handle Wheel of Wheel Casting
Production Specification:
1.Material: GGG40.
2.Size:CN150X150mm.
3.Weight:3.4kg.
4.Technological process: Sand casting+CNC Machining.
5.Inspection: mechanical properties, leaking free test conducted by in-house or third party
6.Use: Submersible pump body .
OEM Permanent Sand Mold Casting for Control Valve Body
production capacity :
1.Casting classification:Sand casting;Precision casting;Vacuum process casting etc.
2.gray iron, ductile iron, stainless steel ,carbon steel,alloy steel, etc.
3. Adoption standard: BS,DIN,ASTM GB etc.
4. Weight range:0.5~5000kg.
5. Producing capacity : 2,000 tons per month .
6. Main application: Metallurgy;Machinery;Plastics;Rubber;Pharmaceutical;
Textiles; Mining; Paper-making; Packaging.
7. Main equipments: Furnaces;heat treatment furnaces;direct-reading spectrometer;shot -blasting equipments, etc.
8. Surface treatment: polishing,plating,shot blasting,heat treatment ,etc
9. Inspection and test: Foundry in home,third part inspection,Material report,UT, MT, RT, and PT,etc..
10. Packing and shipping : Stand export packing;20day make modul & sample;delivery time against your quantity.
11. Casting service: your logo, character, trade name, number etc can be casted on the surface clearly.
OEM Permanent Sand Mold Casting for Control Valve Body
1.Ductile Iron Castings:
molding process: Resin sand/Green Sand
Material: EN-GJS-400-15/EN-GJS-500-7/EN-GJS-600-3/EN-GJS-700-2
Molding: Hand molding/Molding machine Z145/146/148/Molding line.
Possible Heat Treatment: Annealing
Industry involved: Municipal Construction / Fluid
/Automotive
Part unit weight range: 0. 5kg-2000kgs
Max/Min wall thickness requirements: 4mm-250mm
Manufacturer Certification: ISO9001(2000)/ TS16949
OEM Permanent Sand Mold Casting for Control Valve Body
2. Grey iron castings:
1) molding process: Green sand/Resin sand
2) Material: EN-GJL-150/DIN 1691 GG-15,EN-GJL-200/DIN 1691-GG20,EN-GJL-250/DIN1691-GG25
,EN-GJL-300/DIN1691-GG30
3) Molding: Hand molding/ Molding machine Z145/146/148/Molding line.
4) Industry involved: Municipal industry/Construction Fluid industry/Automotive industry
5) Part unit weight range: 0.5kg-2000kgs
6) Max/Min wall thickness requirements: 4mm
7) Manufacturer Certification: ISO9001(2000)/ TS16949
OEM Permanent Sand Mold Casting for Control Valve Body
feature | - TS 16949 certified
- 3 sets automatic moulding lines, flask size from 450x400 till 850x700
- 15 units of induction furnaces ranges from 1 ton/hour till 5 ton/hour
- 15 units CNC machining cernters for further machining process
- Spectrum + metalloscope |
| annual casting capacity | 40,000tons |
| unit weight of casting | from 0.1kg/pc till 120kg/pc |
| material spec. | various grade nodular cast iron and grey cast iron |
| we are currently casting | - Grey cast iron types: EN-GJL-150, GJL-200, GJL-250, GJL-300, GJL-350, GG15, GG20, GG23, GG25, GG30
- Nodular/Ductile cast iron types: EN-GJS-400-18-LT, GJS-500-7, GJS-600-3, GJS-700-2, GJS-800-2, GGG40, GGG40.3, GGG50, GGG60, GGG70, GGG70, GGG80, GGG90
-Austempered ductile iron: ADI 800-10, ADI 900-8, ADI1050-6 , ADI1200-3, ADI 1400-1 |
WeiFang Shengao Machinery Co., Ltd is located in WeiFang the famous city in China and the world center of kites. It is 140 kilometers far away from Qingdao port, the transporation is very convenient. Our company use the location advantages of ShanDong province to integrate resources so that we can processing according to the drawings of customers. We mainly undertake the casting parts, machined parts and other products. Our Import and Export Department have many years experiences of foreign trade, products are mainly exported to the United States, Denmark, Italy, Russia, Australia etc.
Over the years, company adhere to the guideline for management of "Quality first, Reputation first, Delivery just-in-time, Price best". We will try our best to improve the technical level and perfect the enterprise management. Our company will depend on superior quality of products and sincere service to cooperate with dometic and overseas, new and old customers and establish eternal friendship to create a bright future.
