| Price: | US $ 5-10/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 100/Piece |
| Pay Type: | L/C,T/T,D/P,Paypal |
2.Has advanced euipment and over 15 years experience.
3.price: competetive price , Precision made.Experience & Reasonable QC that you can reply on.
4. Process: Precision made.Experience & Reasonable QC that you can reply on
Each part would be given 100% test and tryout before shipment.

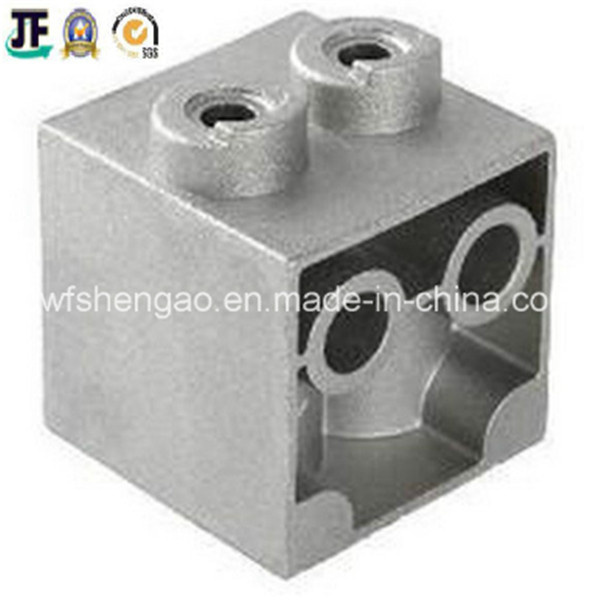

OEM and High Quality Precision Casting Part with Casting Process
OEM Carbon Steel Precision Casting Part with Casting Process
Material specification: 1. carbon & low alloy steel;
2. stainless steel;
3. high alloy & wear resist steel;
4. gray iron; ductile iron;
5. malleable iron;
6. alloyed cast iron;
7. aluminum alloy;
8. cooper alloy;
9. zinc alloy
OEM Carbon Steel Precision Casting Part with Casting Process
Range of casting weight: 0.50kg-450kg
Heat Treatment: Normalizing
Quenching
Tempering
OEM and High Quality Precision Casting Part with Casting Process
OUR MACHINING PROCESS :
Occupies an area more than 6,000 square meters
More than 40pcs big CNC lathes Ø500 - Ø1200
Machining center 1400 x 825 x 1000mm 4 axis
Can provide services: turning; milling; grinding; drilling; inserting; broaching; boring;
polishing
Surface preparation: passivation; polishing; plating; coating; painting; zinc
phosphate; dacrotized / dacromet technology
OEM Carbon Steel Precision Casting Part with Casting Process
1.Ductile Iron Castings:
molding process: Resin sand/Green Sand
Material: EN-GJS-400-15/EN-GJS-500-7/EN-GJS-600-3/EN-GJS-700-2
Molding: Hand molding/Molding machine Z145/146/148/Molding line.
Possible Heat Treatment: Annealing
Industry involved: Municipal Construction / Fluid
/Automotive
Part unit weight range: 0. 5kg-2000kgs
Max/Min wall thickness requirements: 4mm-250mm
Manufacturer Certification: ISO9001(2000)/ TS16949
OEM Carbon Steel Precision Casting Part with Casting Process
2. Grey iron castings:
1) molding process: Green sand/Resin sand
2) Material: EN-GJL-150/DIN 1691 GG-15,EN-GJL-200/DIN 1691-GG20,EN-GJL-250/DIN1691-GG25
,EN-GJL-300/DIN1691-GG30
3) Molding: Hand molding/ Molding machine Z145/146/148/Molding line.
4) Industry involved: Municipal industry/Construction Fluid industry/Automotive industry
5) Part unit weight range: 0.5kg-2000kgs
6) Max/Min wall thickness requirements: 4mm
7) Manufacturer Certification: ISO9001(2000)/ TS16949
OEM Carbon Steel Precision Casting Part with Casting Process
1.Ductile Iron Castings:
molding process: Resin sand/Green Sand
Material: EN-GJS-400-15/EN-GJS-500-7/EN-GJS-600-3/EN-GJS-700-2
Molding: Hand molding/Molding machine Z145/146/148/Molding line.
Possible Heat Treatment: Annealing
Industry involved: Municipal Construction / Fluid
/Automotive
Part unit weight range: 0. 5kg-2000kgs
Max/Min wall thickness requirements: 4mm-250mm
Manufacturer Certification: ISO9001(2000)/ TS16949
OEM Carbon Steel Precision Casting Part with Casting Process
2. Grey iron castings:
1) molding process: Green sand/Resin sand
2) Material: EN-GJL-150/DIN 1691 GG-15,EN-GJL-200/DIN 1691-GG20,EN-GJL-250/DIN1691-GG25
,EN-GJL-300/DIN1691-GG30
3) Molding: Hand molding/ Molding machine Z145/146/148/Molding line.
4) Industry involved: Municipal industry/Construction Fluid industry/Automotive industry
5) Part unit weight range: 0.5kg-2000kgs
6) Max/Min wall thickness requirements: 4mm
7) Manufacturer Certification: ISO9001(2000)/ TS16949
OEM Carbon Steel Precision Casting Part with Casting Process

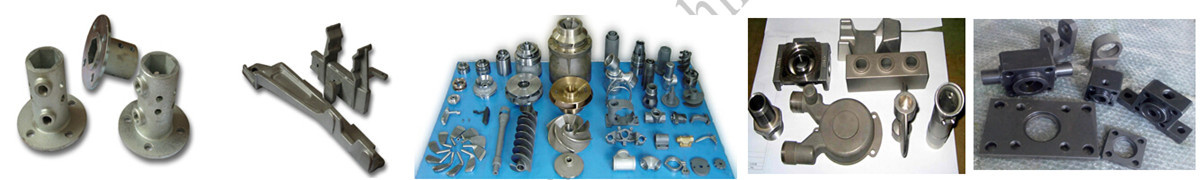

Precision Casting Parts

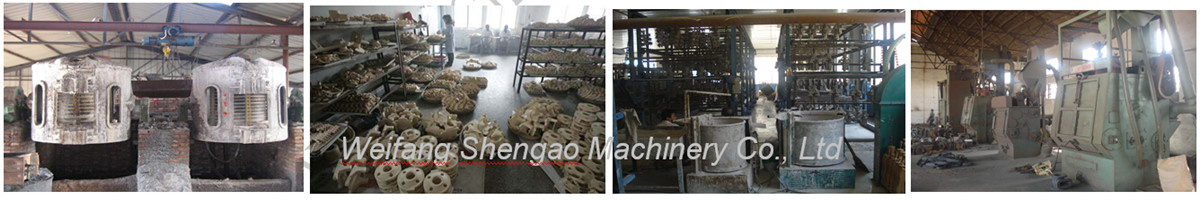

Precision Casting Process

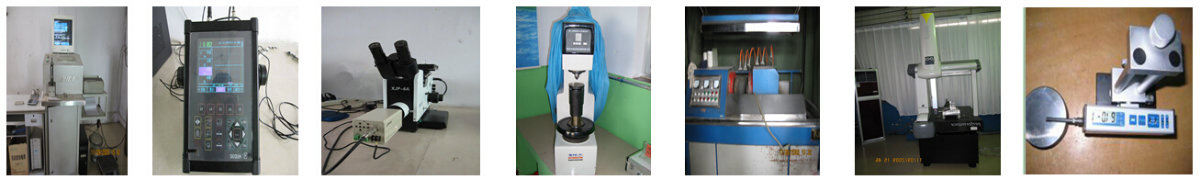

Quality Control
OEM Carbon Steel Precision Casting Part with Casting Process
| Item | | Material | Technical Process |
| 1 | Ductile iron castings | ASTM A 536-Gr.60-40-18,65-45-12,80-55-06,80-60-03; DIN-GGG40,GGG50,GGG60,GGG70; JIS-FCD40,FCD50,FCD60,FCD70; BS-Gr370-17,Gr420-12,Gr500-7,Gr600-3,Gr700-2; NF-FGS370-12,FGS400-12,FGS500-7,FGS600-3,FGS700-2; | Green-sand moulding Resin-sand moulding Lost foam cast Shell-core cast Electric-furnace smelting |
| 2 | Grey iron castings | ASTM A48-No.20,25,30,35,40,45,50; ASTM A126-Class A, Class B, Class C; DIN-GG10,GG15,GG20,GG25,GG30,GG35; JIS-FC10,FC15,FC20,FC25,FC30,FC35; BS-Grade 150,180,220,260,300,350; NF-FGL150,FGL200,FGL250,FGL300,FGL350; | Green-sand moulding Resin-sand moulding Lost foam cast Shell-core cast Electric-furnace smelting |
| 3 | Carbon steel castings | ASTM A216-Gr. WCB, Gr. WCA, Gr. WCC; ASTM-415-205, 450-240, 485-275, 80-40; DIN- GS-C25(1.0619), GS-38(1.0416), GS-45(1.0446), GS-52(1.0552), GS-60(1.0558); JIS-SC410, SC450, SC480, SCC5; BS-A1, A2, A5; NF-GE230, GE280, GE320, GE370 | Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Lost foam cast Shell-core cast Electric-furnace smelting |
| 4 | Stainless steel castings | ASTM-CF-8M, CF-8, CA-15, CA-40, 316, 304; DIN-G-X6CrNi18 9(1.4308), G-X7Cr13(1.4001) G-X20Cr14(1.4027), 1.4408; JIS-SCS13, SCS 1, SCS 2, SCS 14A; BS-304C15, 410C21, 420C29, 316, 304; NF-Z6CND18.12M, Z6CN18.10M, Z12C13M, Z20C13M | Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Electric-furnace smelting |
| 5 | Alloy steel castings | DIN-GS-40Mn5(1.1168), GS-20Mn5(1.1120); GS-37MnSi5(1.5122), GS-34CrMo4(1.7220); JIS-SCMn3, SCW480, SCSiMn2, SCCrM3, SCMnCR3; ASTM-LCC UNS-J02505, J13048 NF-G20M6, G35CrMo4 | Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Electric-furnace smelting |
| Prod Model: | WF-JF |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: | OEM Carbon Steel Aluminium Precision Casting with |
| Technology: | Metal Casting |
| OEM And ODM: | 100% |
| Export Markets: | Global |
| Best Products: | Best Price |
| Qualiy Control: | Professional QC Stuff, Spectrograph |
| Type: | Precision Casting |
| Supply: | Drawing Design |
| Place Of Origin: | Shandong(Mainland) |
| Standard Or Nonstandard: | Nonstandard |
| Casting Method: | Sand Casting |
| Casting Form Material: | Metal |
| Casting Metal: | Cast Steel |
| Casting Form Usage Count: | Permanent |
