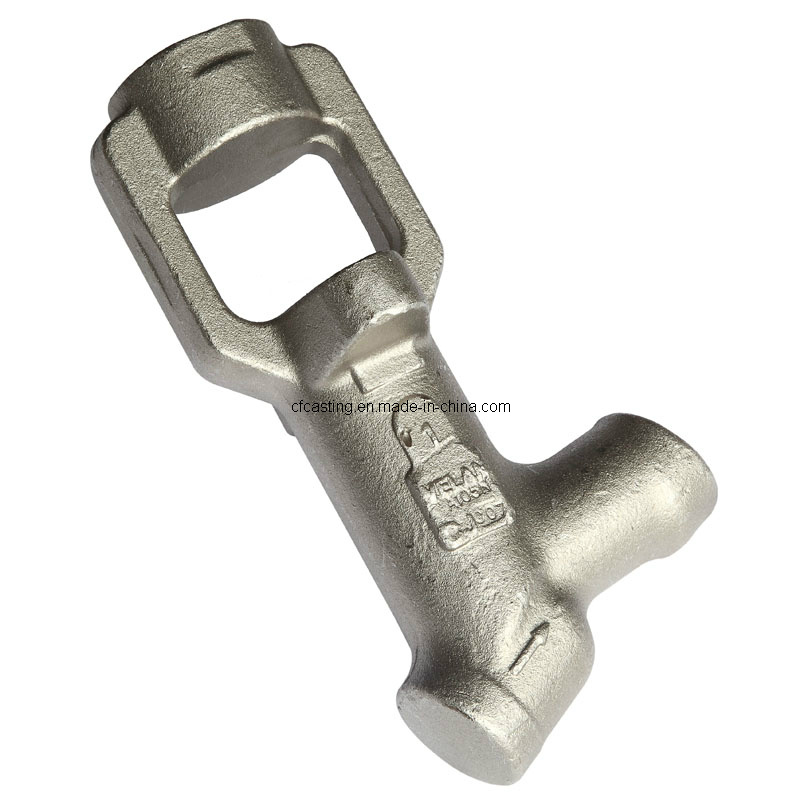

Specifications: OEM Alloy steel Carbon Steel Forging Parts
1. Material:
Alloy Steel: 20CrNiMo, 35CrMo. 42CrMo, 40CrNiMo, 34CrNiMo6
Carbon Steel: S45, S40, S20
Stainless Steel: 304 316 316L
2. Standard: ASTM, AISI, JIS, ISOetc
3. Casting Process:
Casting Section-Rough M-NDE-HT-Final M-Teeth Cut (By Hub or Wire)-Assembly
4. Forging Process:
Forging Section-Rough M-NDE-HT-Final M-Teeth Cut by Wire-Assembly
1)Enquiry With Drawing In Details
2)Confirm Steel Material, Chemical Compositions, Mechanical Properties, Tolerances
3)Confirm Payment Terms, Order Materials or Check Material in Stock
4)Check Material Chemical Compositions, Material Weight, Dimensions
Cut Materials, Record Weight, Pre-Heating For Forging
5)Forging Ratios, Heat Treatment After Forging, Dimension Check
6)Rough Machining, UT Test, Heat Treatment
7)Fine Machining, UT & PT Test, Dimensions Inspection, Mechanical Properties Test
8)Customer Inspection at Site, Packing, Delivery Arrangement
9)Balance Payment Confirmation, Dispatch Forgings or Castings
Bill of Loading Confirmation, MTC Dispatch, Customs Clearances
ODM& OEM SERVICES |
Service |
Drawings or samples processing/OEM/ODM service provided |
Produce Process |
Drawings→ mould making → pre-forging →rough machining
or finish machining →surface treatment →product checking
→ packing →delive ry |
Forging Material |
Carbon Steel, Alloy steel,Stainless steel |
Standard |
ISO, GB, ASTM, DIN, JIS |
Produce Equipment |
Friction Screw Press Series, CNC Lathe, Machining Center
(Vertical Spindles), CNC Milling Machine, Bench Drilling
Machine, Heat Treatment Equipments and so on. |
Surface treatment |
Heat treatment, Polishing, shot blasting,
Painting, Electro-plating, Chemical Plating, |
Inspection
Equipments |
Metallurgical analysis , Tensile strength tester , Hardness
tester, Altimeter, Scale Micrometer, pressure tester, etc. |
Delivery |
Sample s are sent by express
Large quantity products delivered to customer by sea
or according to your request |
Qingdao Chifine Machinery Co., Ltd is One Famous Company in China Which Specialized in Various Metal Casting Products with Over 10 Years Experience Located in Qingdao China. It Covers a Comprehensive Range of Forging, Stamping, Sand Casting, Investment Casting, Die Casting and Machining and Was Widely Used in Agriculture Machinery, Motor Vehicle, Architecture, Railway and Engineering Chifine Has Accumulated Important and Valuable Experience in Design, Manufacturing and Customer Service Over These Years We Will Continue to Integrate Our Technical Superiority, Improve Process and Quality to Increase Market Share and Create More Brilliant Future.
Automative Casting Line:
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
• Product Size: 0-1000mm.
• Weight: 0.2kg-100kg
Resin Sand Casting
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel casting(ASTM/UNS; DIN; JIS; NF; BS; ISO)
• Product Size: 0-1500mm.
• Weight: 10kg-5000kg
Shell Mould Casting
Shell casting is one of resin sand casting process.
It is suitable for thin-wall casting parts, be free from porosity.
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel alloy; Aluminum alloy; Copper alloy.
• Product Size: 0-500mm.
• Weight: 50g-100kg.
• Wall thickness: 4-20mm
Lost Wax Casting
• Advanced wax-injection-machine and tool to ensure accurate wax-patten.
• Stable temperature and humidity environment make the wax-patten no deformation.
• Material:
Carbon steel; Stainless steel; Alloy steel.
Grey iron(GG20-GG35).
Ductile iron(GGG40-GGG60);
Malleable cast-iron
(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Aluminum alloy; Copper alloy.
• Casting size: 0-500mm.
• Casting weight: 50g-100kg
Stamping and Forging Line
• Stamping and forging equipment: 16T-300T press machine
• Automatic transport forging line
• Material: Carbon steel; Stainless steel; Alloy steel.
Aluminum alloy; Copper alloy.
Machining Shop
Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.
• Horizontal and Vertical Machining Center
• CNC lathe and normal lathe
• CNC drilling and milling Center
• Other assistant equipment
