| Price: | US $ 5500-7000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Paypal,Money Gram |
It can forging all kinds steel production.
1.all kinds of standard workpiece,fasteners,machinary parts,hardware tools,straight shank twist drill forging.
2.metal material heating and forging,such as steel pipe heating,iron wire,steel wire heating to make bolts and nuts
3.stainless steel workpiece forging.

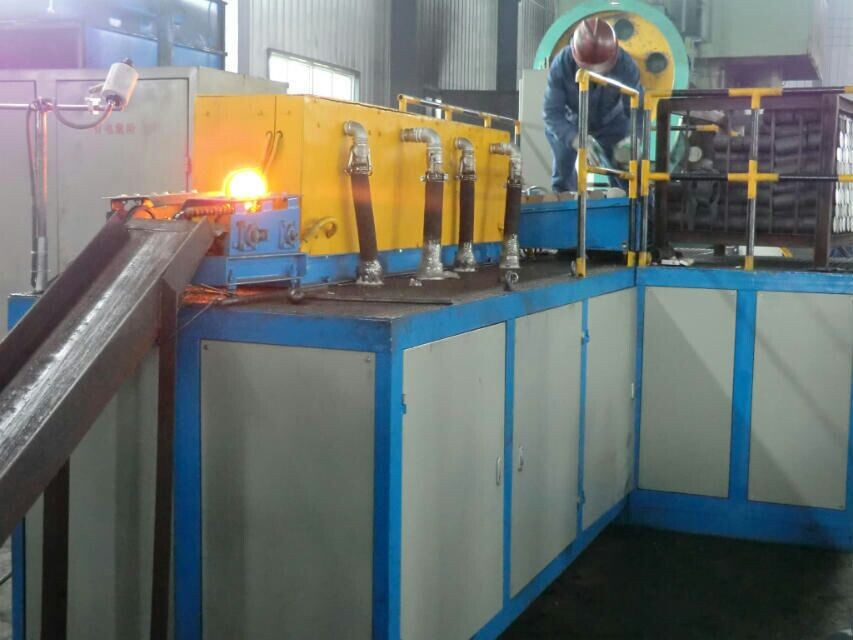

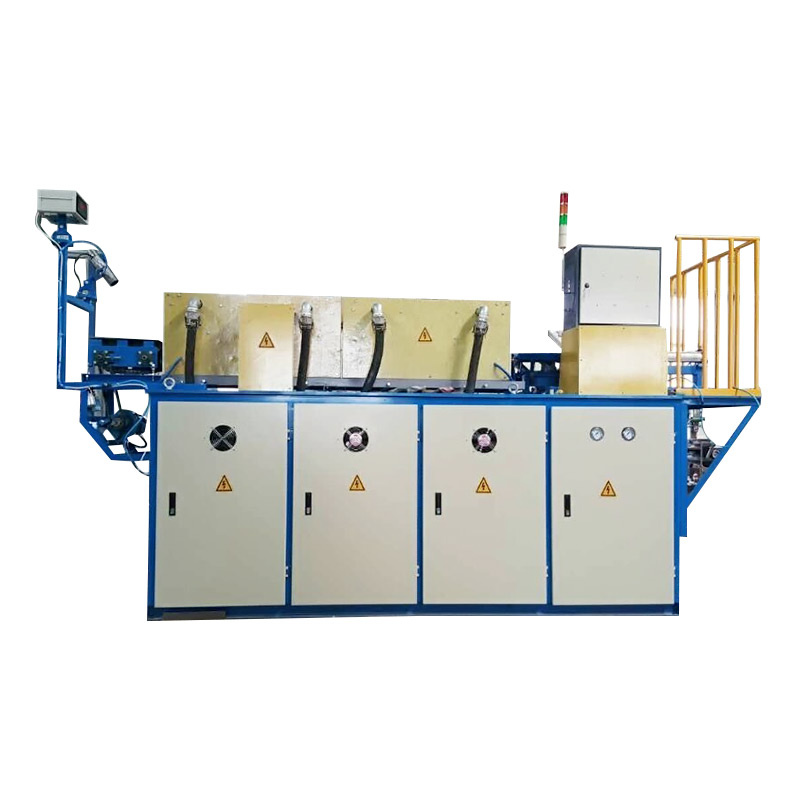

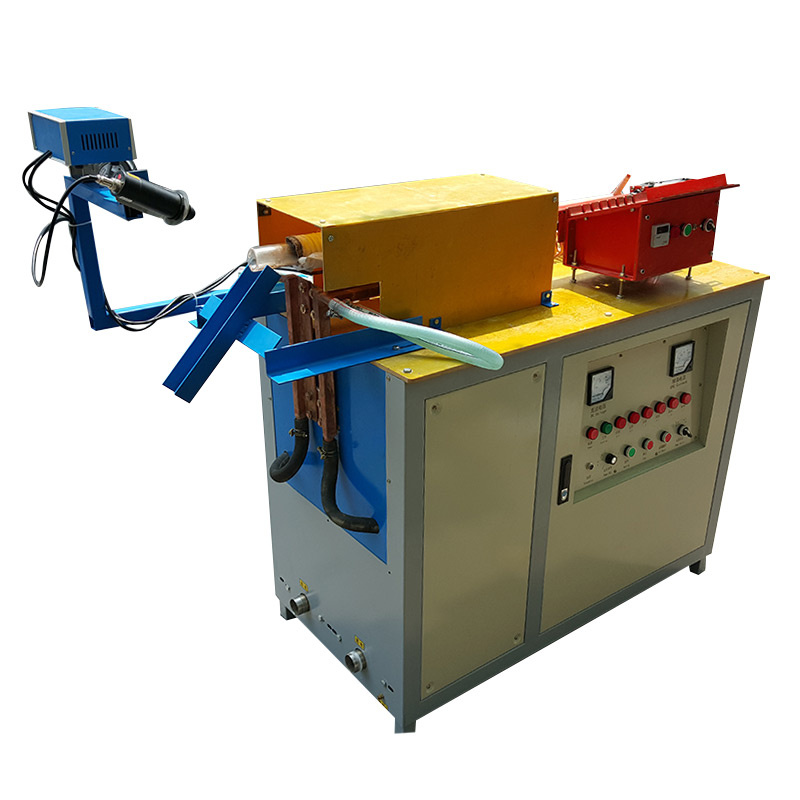

Photos of igbt medium frequency induction forging furnace :
The parameter of induction heating forging furnace:
| Model | GS-50 |
| Worker power | Three phrase 410V/50Hz |
| Working voltage range (AC) | 342V~430V |
| Max input current | 75A |
| Max output power | 50KVA |
| Oscillation frequency | 10-50KHz |
| Continuous load rate | 100% |
| Cooling water pressure | 0.1-0.3mpa |
| Unit weight | 400kg±5% |
| Unit dimensions(L*W*H)mm | 1800*450*1500 ±5% |
| Particular recommended | Metal heating & forging |
| Temperature protection | 50 degrees |
Advantage of igbt medium frequency induction forging furnace :
1.power saving than tube saving 30%, 20% energy saving than SCR frequency.
2.Stable performance, complete protection, no worries.
3.Heating speed oxide layer small deformation.
4.Less environmental pollution and noise pollution.
5.simple installation , just connect the power and water, and 10 minutes to complete.
6.Adaptable and can be heated to a wide range of workpiece.
Package for igbt medium frequency induction forging furnace :
1.On the outside,packing fumigation wooden cases.
2.Inside part, packing plastic film.
3.Induction coil is packaged inside.
Our service:
Certification: ISO9001
Technology: Solid state IGBT Inverter
Induction coils: Free design for customer
Warranty: One year free part replacement and lifelong technical service
After-sale service: Free replacement spares and can provide overseas support
Induction heating functions: Metal hardening,brazing,melting,annealing,melting and other heat treatment
Auxiliary device: Infrared thermometer,CNC quenching machine tool
Supply scope: Power unit+induction coils+spare parts
Cooling system: Industrial chiller,closed cooling tower,water pump,water wire(optional)
Customer preparation: Water pump,water tank,or industrial chiller,copper wire,soft water pipe
Cooling water pressure: 0.1-0.3MPa
Power factor: >0.95
Matching device: CNC hardening tool, cooling water device,automatic loading device,adjust tooling
Additional functions: Heating time 0.1-99.9 s Retaining time 0.1-99.9 s
Features: Save energy,save electric bill,heating fast,safe and reliable,fast delivery,competitive price,free design,ODM support,manufacturer,exporter,excellent supplier,professional.
FAQ
Why Choose Us
1. over 15 years eperience in induction heating field
2. heating furnace is safety and reliability, long life
3. our heating equipment export to Italy, Mexico ,Turkey, Slovakia, Pakistan, Iran,Vietnam,India, Malaysia,Brazil ,Indonesia,South Africa,etc. And winning great popularity
4. one year warranty and life-time technology support
5. fast, timely delivery & reliable after-sales service
6. spare parts & tools delivered with harvester for daily maintenance
7. customers & quality first
Transportation
Sea transportation, air transportation, railway transportation, highway transportation, express.
Contact us:
Mobile phone: +86 18937170169
Website:http://www.inductionheating.com.cn
| Prod Model: | GS-50 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: | Induction Heating Hot Forging Furnace |
| Color: | Gray&White |
| Features: | Automatic Feeding |
| Principle/Work Theory: | Electromagnetic Induction Heating |
| Work Hour: | 24 Hours |
| Cooling Method: | Water Cooling |
| Heating Method: | Induction Heating |
| Core Component: | IGBT From Siemen Siemenstechnology |
| Delivery Time: | 10-15 Days If Stock |
| Maxi. Temp: | 1600 Degree or Higher |
| Type: | Hot Forging |
| Forging Forming Method: | Heating&Press |
