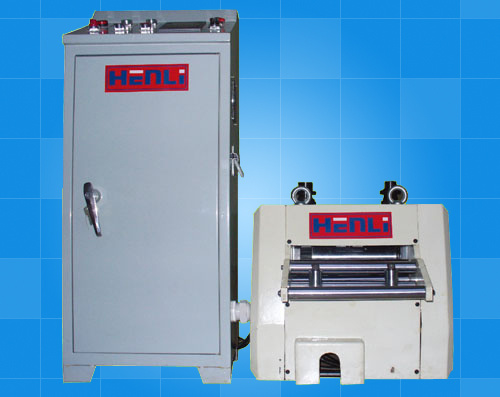

NC Servo roll Feeder machine High precision and effciency feeding for the press machine.
NC roll Feeder machine, adopt high quality servomotor (Mitsubishi & Yaskawa Electric of Japan) as the drive for feeding.
Features and construction:
1. High-precision feeding: It is controlled by computer closed-circuit feedback system. So that the precision can maintain within ± 0.3MM
2. Phase-style feeding function: It can input 20 groups of different feeding length, each group provides punching for 999 times to satisfy the processing and production of special products(option)
3. Manual model: It can input 3 phases manual speed, which can let used operate more easily and feed materials more accuracy.
4. High-effciency release device: It can set up release angle quickly, only match Cam signal of and adjusted feed thickness can done.
5. Feeding length setting: Input feed length on the controller panel directly
6. Feeding unit: The roll adopts middle-hollow style, being light and with low intertia for electropiate. The surface hardness HRC 60o and hard chorme plated.
|
Model |
NCF-100 |
NCF-200 |
NCF-300 |
NCF-400 |
NCF-500 |
NCF-600 |
NCF-700 |
NCF-800 |
NCF-1000 |
NCF-1300 |
NCF-1600 |
|
NCF-100A |
NCF-200A |
NCF-300A |
NCF-400A |
NCF-500A |
NCF-600A |
NCF-700A |
NCF-800A |
NCF-1000A |
NCF-1300A |
NCF-1600A |
|
Material Width(mm) |
100 |
200 |
300 |
400 |
500 |
600 |
700 |
800 |
1000 |
1300 |
1600 |
|
Material thickness |
0.2-3.2 |
0.2-3.2 |
0.2-3.2 |
0.2-3.2 |
0.2-3.2 |
0.2-3.2 |
0.2-3.2 |
0.2-3.2 |
0.2-3.2 |
0.2-3.2 |
0.2-3.2 |
Standard type
Material Thickness& Width |
0.2-1.0 |
100 |
200 |
300 |
400 |
500 |
600 |
700 |
800 |
1000 |
1300 |
1600 |
|
2.0 |
90 |
180 |
280 |
300 |
350 |
400 |
450 |
480 |
550 |
650 |
700 |
|
3.2 |
40 |
80 |
100 |
120 |
150 |
180 |
210 |
240 |
280 |
320 |
360 |
|
Material Thickness |
0.3-4.5 |
0.3-4.5 |
0.3-4.5 |
0.3-4.5 |
0.3-4.5 |
0.3-4.5 |
0.3-4.5 |
0.3-4.5 |
0.3-4.5 |
0.3-4.5 |
0.3-4.5 |
A-Type
Material Thickness& Width |
0.3-2.2 |
100 |
200 |
300 |
400 |
500 |
600 |
700 |
800 |
1000 |
1300 |
1600 |
|
3.2 |
80 |
160 |
240 |
320 |
400 |
460 |
520 |
560 |
580 |
600 |
650 |
|
4.5 |
50 |
120 |
150 |
220 |
250 |
280 |
300 |
320 |
350 |
360 |
380 |
|
Feed Length(mm) |
9999.99 |
9999.99 |
9999.99 |
9999.99 |
9999.99 |
9999.99 |
9999.99 |
9999.99 |
9999.99 |
9999.99 |
9999.99 |
|
Feed Speed(m/min) |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
|
Servo Motor(kw) |
AC 0.8 AC 1.3 |
AC 0.8 AC 1.8 |
AC 0.8 AC 1.8 |
AC 1.3 AC 2.9 |
AC 1.3 AC 2.9 |
AC 1.8 AC 2.9 |
AC 1.8 AC 2.9 |
AC 2.9 AC 4.4 |
AC 4.4 AC 5.5 |
AC 5.5 AC 7.5 |
AC 7.5 AC 11 |
|
Power supply |
220v/380v/415v |
220v/380v/415v |
380v/415v |
380v/415v |
380v/415v |
380v/415v |
380v/415v |
380v/415v |
380v/415v |
380v/415v |
380v/415v |
|
Pass Line(mm) |
70-170 |
70-170 |
70-170 |
70-170 |
70-170 |
70-170 |
90-190 |
90-190 |
90-190 |
90-190 |
90-190 |
|
Release Equipment |
Mechanical Pneumatic |
Pneumatic |
